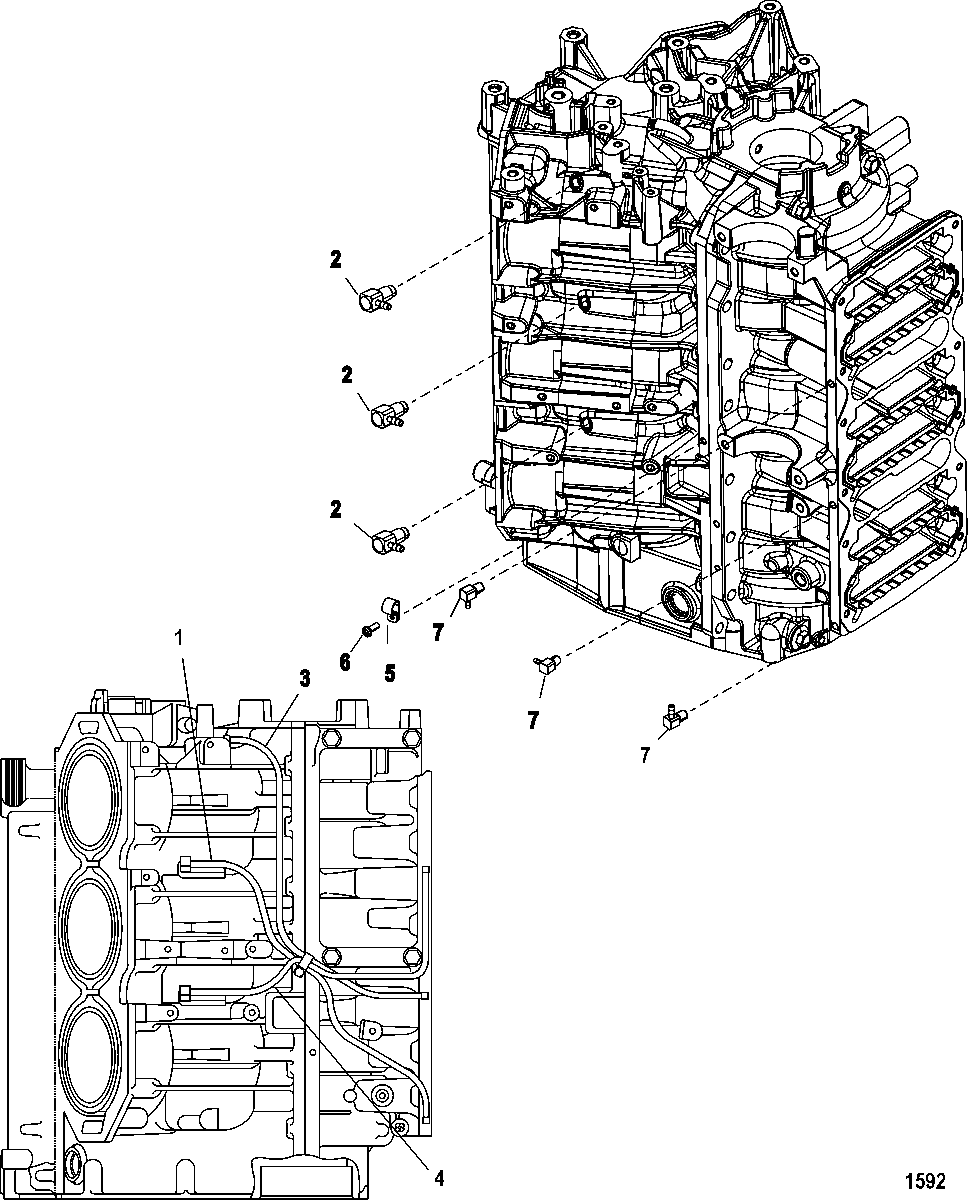

Starboard Center Main Oiling System для Mercury - 250 PRO XS (3.0L DFI) 1B426561 THRU 1B752546
-
№АртикулНазвание
-
132-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 15.50 Inches)TUBING, (38.00 Inches Bulk) (Cut to 15.50 Inches)
-
221-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 16.50 Inches)TUBING, (38.00 Inches Bulk) (Cut to 16.50 Inches)
-
432-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 15 Inches)TUBING, (38.00 Inches Bulk) (Cut to 15 Inches)
-
554-23567 CLIPCLIP
-
610-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
722-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
-61-841017A52 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
Все узлы модели:
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Drivehshaft Housing and Exhaust Tube
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft - TorqueMaster)
- Gear Housing, Propeller Shaft - TorqueMaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Powerhead Gasket Set Components
- Service/Support Material
- • Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
