BELGIUM ENGINES для Mercury - 25 9378116 THRU 9415100
-
№АртикулНазвание
-

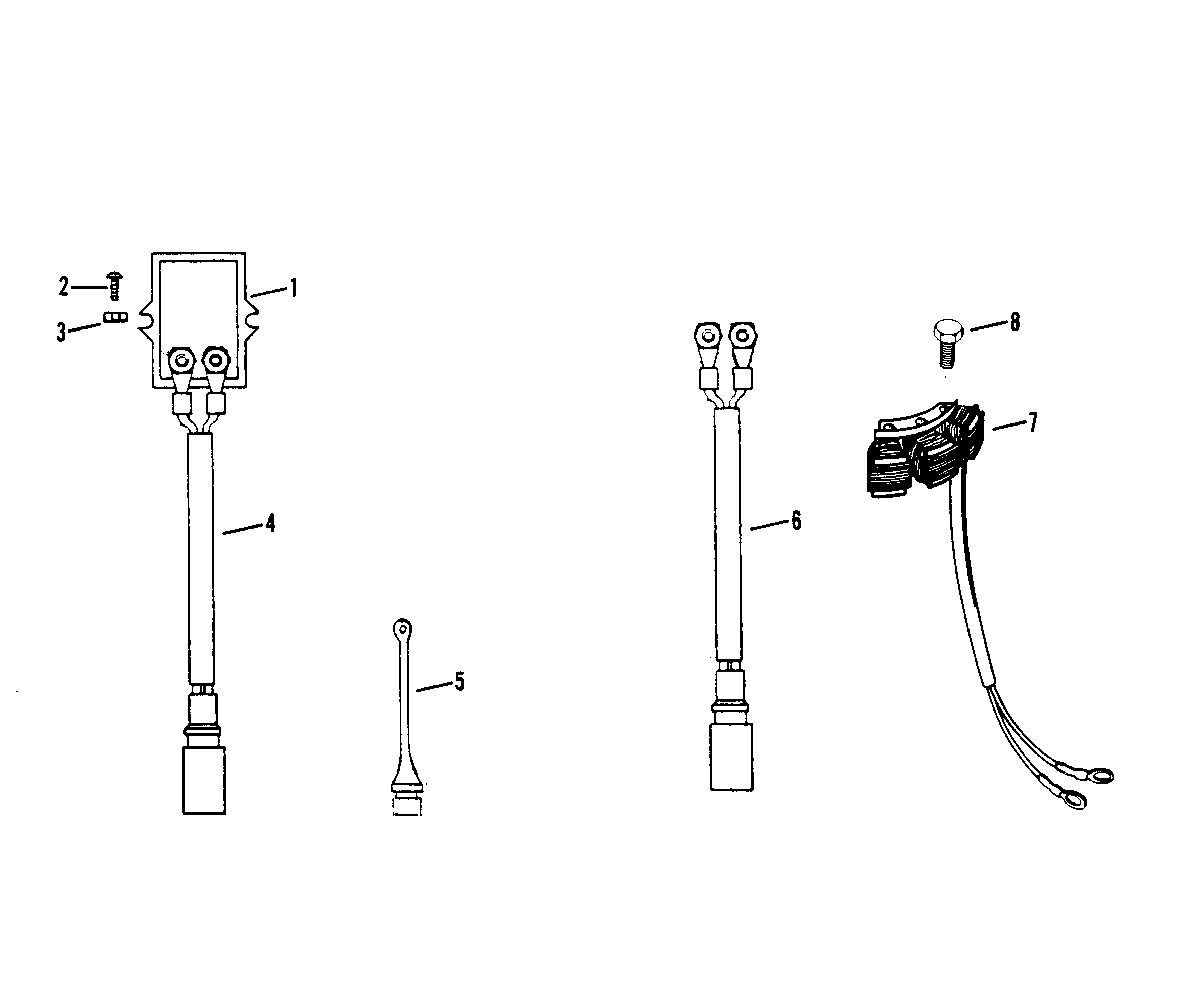

195845T VOLTAGE REGULATORVOLTAGE REGULATOR
-
210-92799 SCREW, VOLTAGE REGULATOR TO MANIFOLD COVER (1-1/8")SCREW, VOLTAGE REGULATOR TO MANIFOLD COVER (1-1/8")
-
311-45076 NUT, VOLTAGE REGULATOR TERMINALNUT, VOLTAGE REGULATOR TERMINAL
-
484-74725A2 HARNESS ASSEMBLY, VOLTAGE REGULATOR (BLACK/RED)HARNESS ASSEMBLY, VOLTAGE REGULATOR (BLACK/RED)
-
571663 PLUG, HARNESSPLUG, HARNESS
-
684-65017A2 HARNESS ASSEMBLY, LIGHTIING (EXTERNAL)HARNESS ASSEMBLY, LIGHTIING (EXTERNAL)
-
786704A10 STATOR ASSEMBLYSTATOR ASSEMBLY
-
810-4000123 SCREW, STATOR ATTACHING (30MM)SCREW, STATOR ATTACHING (30MM)
