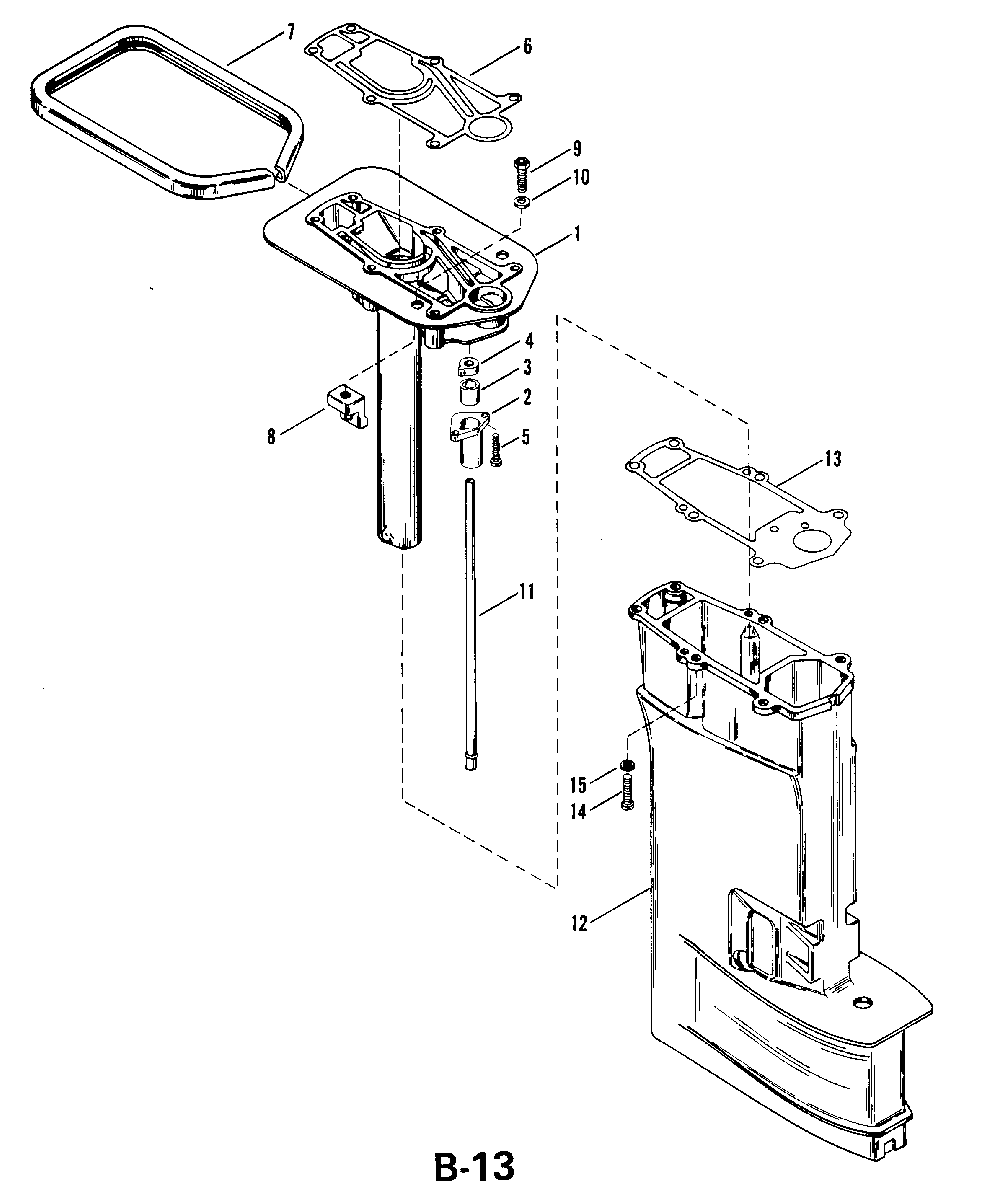

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 25 9378116 THRU 9415100

№

Артикул

Название
1

99702A3 ADAPTOR PLATE ASSEMBLY (MERC 18)

ADAPTOR PLATE ASSEMBLY (MERC 18)

0 ₽
1

99702A7 ADAPTOR PLATE ASSEMBLY (MERC 25)

ADAPTOR PLATE ASSEMBLY (MERC 25)

20 120 ₽
2

96248A1 HOUSING ASSEMBLY, WATER TUBE

HOUSING ASSEMBLY, WATER TUBE

0 ₽
3

26-25329 SEAL, WATER TUBE

SEAL, WATER TUBE

300 ₽
4

23-889715 SPACER, WATER TUBE

SPACER, WATER TUBE

320 ₽
5

10-400035 SCREW, HOUSING TO ADAPTOR PLATE (16MM)

SCREW, HOUSING TO ADAPTOR PLATE (16MM)

0 ₽
6

27-41670006 GASKET, ADAPTOR PLATE

GASKET, ADAPTOR PLATE

3 920 ₽
7

158662 SEAL, ADAPTOR PLATE

SEAL, ADAPTOR PLATE

0 ₽
8

41211 BRACKET, UPPER MOUNT

BRACKET, UPPER MOUNT

1 860 ₽
9

10-40007128 SCREW, UPPER MOUNT BRACKET

SCREW, UPPER MOUNT BRACKET

0 ₽
10

12-29245 WASHER, UPPER MOUNT BRACKET

WASHER, UPPER MOUNT BRACKET

120 ₽
11

32-85116 WATER TUBE, SHORT SHAFT

WATER TUBE, SHORT SHAFT

2 850 ₽
11

32-86292 WATER TUBE, LONG SHAFT

WATER TUBE, LONG SHAFT

4 720 ₽
12

1588-9097T5 HOUSING ASSEMBLY, SHORT SHAFT

HOUSING ASSEMBLY, SHORT SHAFT

65 960 ₽
12

1588-9098T5 HOUSING ASSEMBLY, LONG SHAFT

HOUSING ASSEMBLY, LONG SHAFT

39 370 ₽
13

27-433374 GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

440 ₽
14

10-1993870 SCREW, DRIVE SHAFT HOUSING TO PLATE (60MM)

SCREW, DRIVE SHAFT HOUSING TO PLATE (60MM)

480 ₽
15

12-4002317 WASHER, DRIVE SHAFT HOUSING SCREW

WASHER, DRIVE SHAFT HOUSING SCREW

50 ₽
--

27-41499A88 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.

GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.

11 760 ₽
