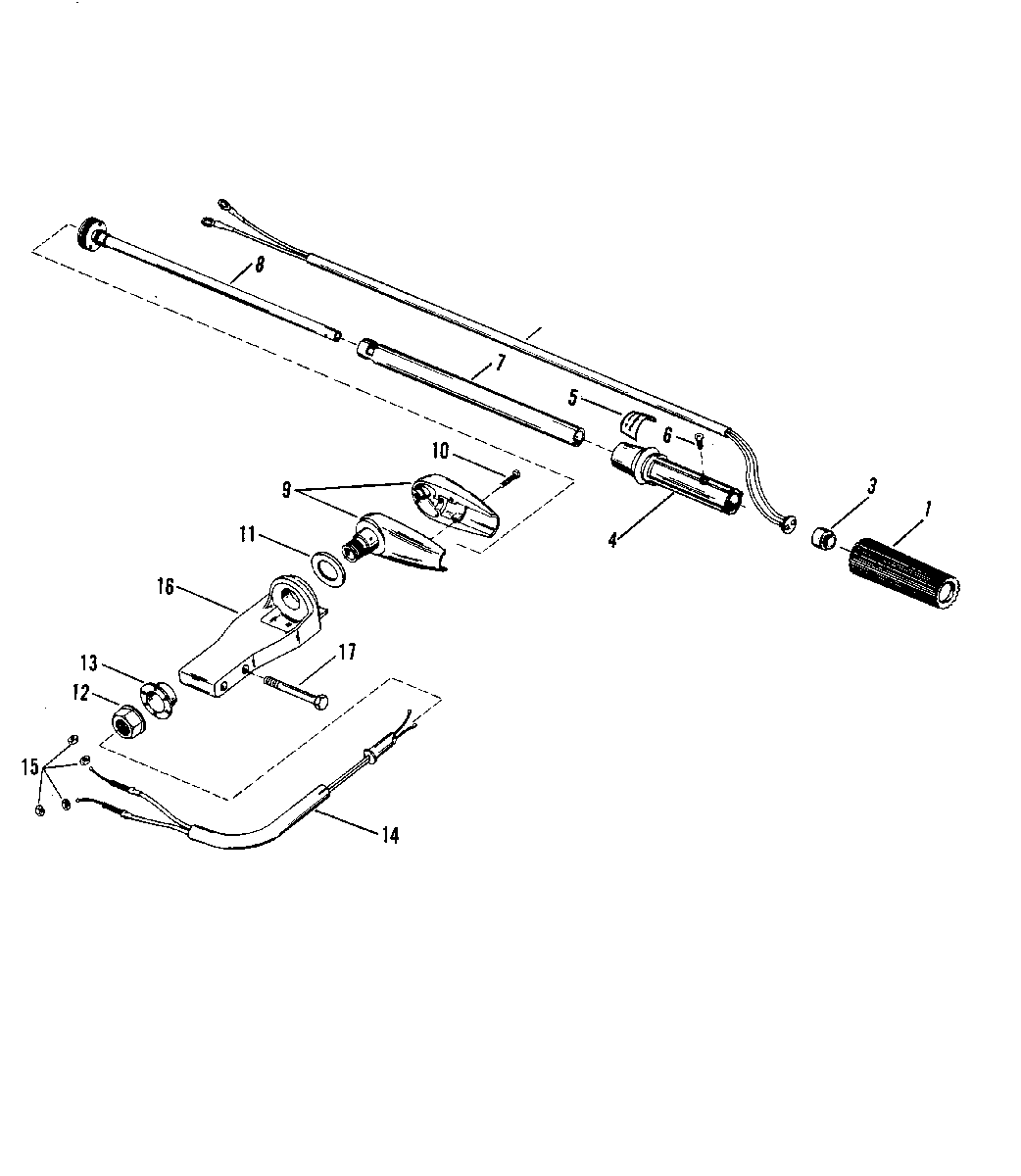

STEERING HANDLE ASSEMBLY для Mercury - 25 9378116 THRU 9415100
-
№АртикулНазвание
-
-94185A16 STEERING HANDLE ASSEMBLYSTEERING HANDLE ASSEMBLY
-
199589003 GRIP, RUBBERGRIP, RUBBER
-
284-89591A5 HARNESS ASSEMBLY, STOP SWITCHHARNESS ASSEMBLY, STOP SWITCH
-
311099A1 BOOT ASSEMBLY, STOP SWITCHBOOT ASSEMBLY, STOP SWITCH
-
487-823609A10 HANDLE ASSEMBLY, THROTTLEHANDLE ASSEMBLY, THROTTLE
-
537-13239 DECAL, THROTTLE HANDLEDECAL, THROTTLE HANDLE
-
610-62568 SCREW, THROTTLE HANDLESCREW, THROTTLE HANDLE
-
799333A2 TUBE ASSEMBLY, STEERINGTUBE ASSEMBLY, STEERING
-
8975501 TUBE ASSEMBLYTUBE ASSEMBLY
-
943447A3 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1010-4005688 SCREW, BRACKET CLAMPING (20MM)SCREW, BRACKET CLAMPING (20MM)
-
1112-57860 WASHER, NYLON - BRACKETWASHER, NYLON - BRACKET
-
1211-82671327 NUT, BRACKETNUT, BRACKET
-
1323-85973 BUSHING, BRACKETBUSHING, BRACKET
-
1443242 CABLE, THROTTLECABLE, THROTTLE
-
1511-400212 NUT, THROTTLE CABLENUT, THROTTLE CABLE
-
1643447A3 BRACKET ASSEMBLY, STEEERINGBRACKET ASSEMBLY, STEEERING
-
1710-4000384 SCREW, BRACKET TO SWIVEL TUBE (75MM)SCREW, BRACKET TO SWIVEL TUBE (75MM)
