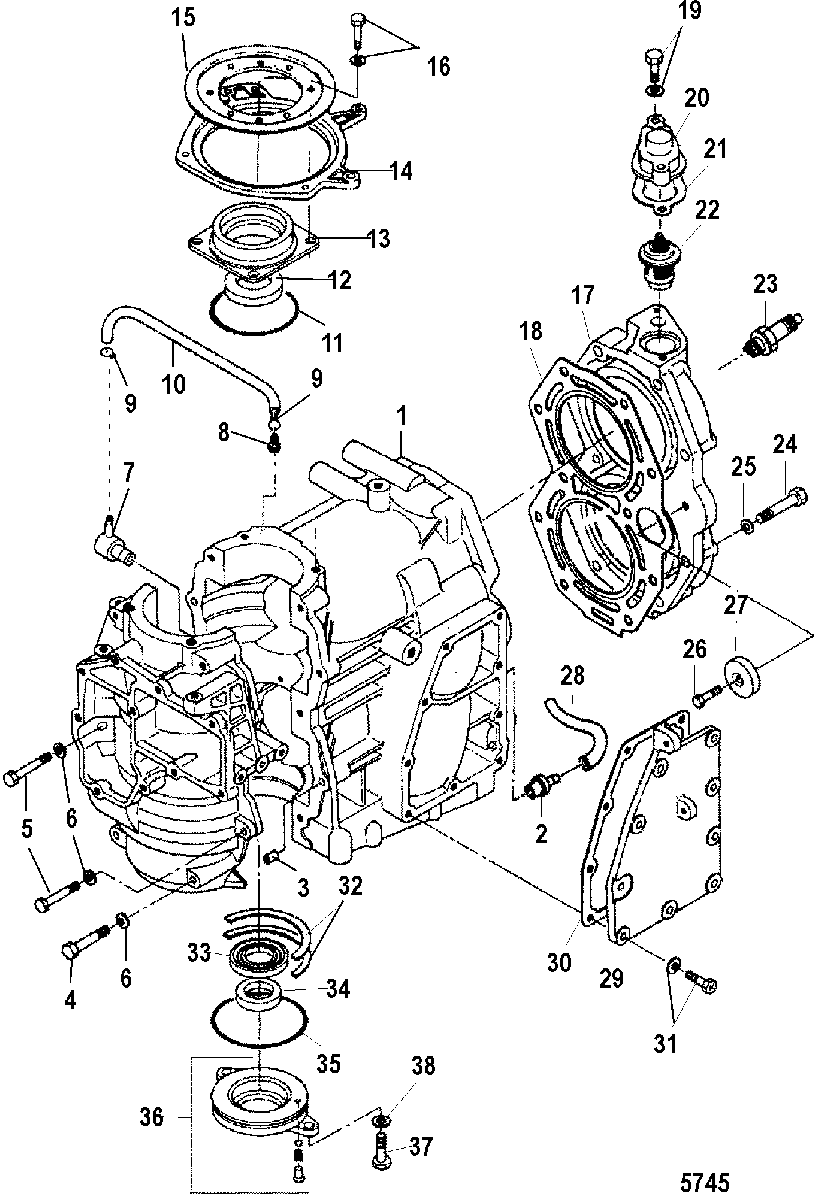

Cylinder Block для Mercury - 30 (2 CYL.) (International) 0N001875 THRU 0N055504
-
№АртикулНазвание
-
1878-815013T13 CYLINDER BLOCKCYLINDER BLOCK
-
222-8129602 FITTINGFITTING
-
317-9521814 PIN, DowelPIN, Dowel
-
410-166951 BOLTBOLT
-
510-8M0106721 BOLTBOLT
-
612-4002217 WASHERWASHER
-
722-812960A01 BLEED VALVE
SN# 0N009356 & BelowBLEED VALVE
SN# 0N009356 & Below -
722-812960006 NIPPLE
SN# 0N009357 & UpNIPPLE
SN# 0N009357 & Up -
822-8129601 NIPPLE
SN# 0N009356 & BelowNIPPLE
SN# 0N009356 & Below -
822-8M0064617 CONNECTOR
SN# 0N009357 & UpCONNECTOR
SN# 0N009357 & Up -
954-95224 CLIPCLIP
-
1032-8M0057112 HOSE, Rubber (1 Meter)
SN# 0N009356 & BelowHOSE, Rubber (1 Meter)
SN# 0N009356 & Below -
1032-879194473 HOSE, Rubber with Arrow (730mm)
SN# 0N009357 & UpHOSE, Rubber with Arrow (730mm)
SN# 0N009357 & Up -
1125-853709 O-RINGO-RING
-
1226-853707 SEAL, Oil - UpperSEAL, Oil - Upper
-
131100-853708 END CAP, UpperEND CAP, Upper
-
14853710 SET RINGSET RING
-
15853711 GUIDE PLATEGUIDE PLATE
-
1610-168283 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
17979-8M0080094 CYLINDER HEADCYLINDER HEAD
-
1827-8M0119224 GASKETGASKET
-
1910-168282 BOLTBOLT
-
20853705A01 COVERCOVER
-
2127-853702005 GASKETGASKET
-
22804540 THERMOSTATTHERMOSTAT
-
2333-8M0114740 SPARK PLUG
(NGK-B7HS-10)SPARK PLUG
(NGK-B7HS-10) -
2333-828942 SPARK PLUG, (NGK# BR7HS-10)
(NGK-BR7HS-10)SPARK PLUG, (NGK# BR7HS-10)
(NGK-BR7HS-10) -
2410-898101927 BOLTBOLT
-
2512-8M0106725 WASHERWASHER
-
2610-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
2797-823913Q ANODEANODE
-
2832-8M0057113 LINE, Fuel (250 mm)LINE, Fuel (250 mm)
-
29853706 COVER, ExhaustCOVER, Exhaust
-
3027-812939018 GASKETGASKET
-
3110-898103A79 BOLT AND LOCKWASHER, Electroplated (M5 x 18)BOLT AND LOCKWASHER, Electroplated (M5 x 18)
-
32853712 THRUST RINGTHRUST RING
-
3326-8537071 SEAL, Oil - LowerSEAL, Oil - Lower
-
3426-8537072 SEAL, OilSEAL, Oil
-
3525-8537091 O-RINGO-RING
-
361100-853713T END CAP, LowerEND CAP, Lower
-
3710-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
3813-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
-27-8M0119225 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M0119221 POWERHEAD ASSEMBLY
SN# 0N046081 & BelowPOWERHEAD ASSEMBLY
SN# 0N046081 & Below -
-8M0119221 POWERHEAD ASSEMBLY
SN# 0N046082 & UpPOWERHEAD ASSEMBLY
SN# 0N046082 & Up
