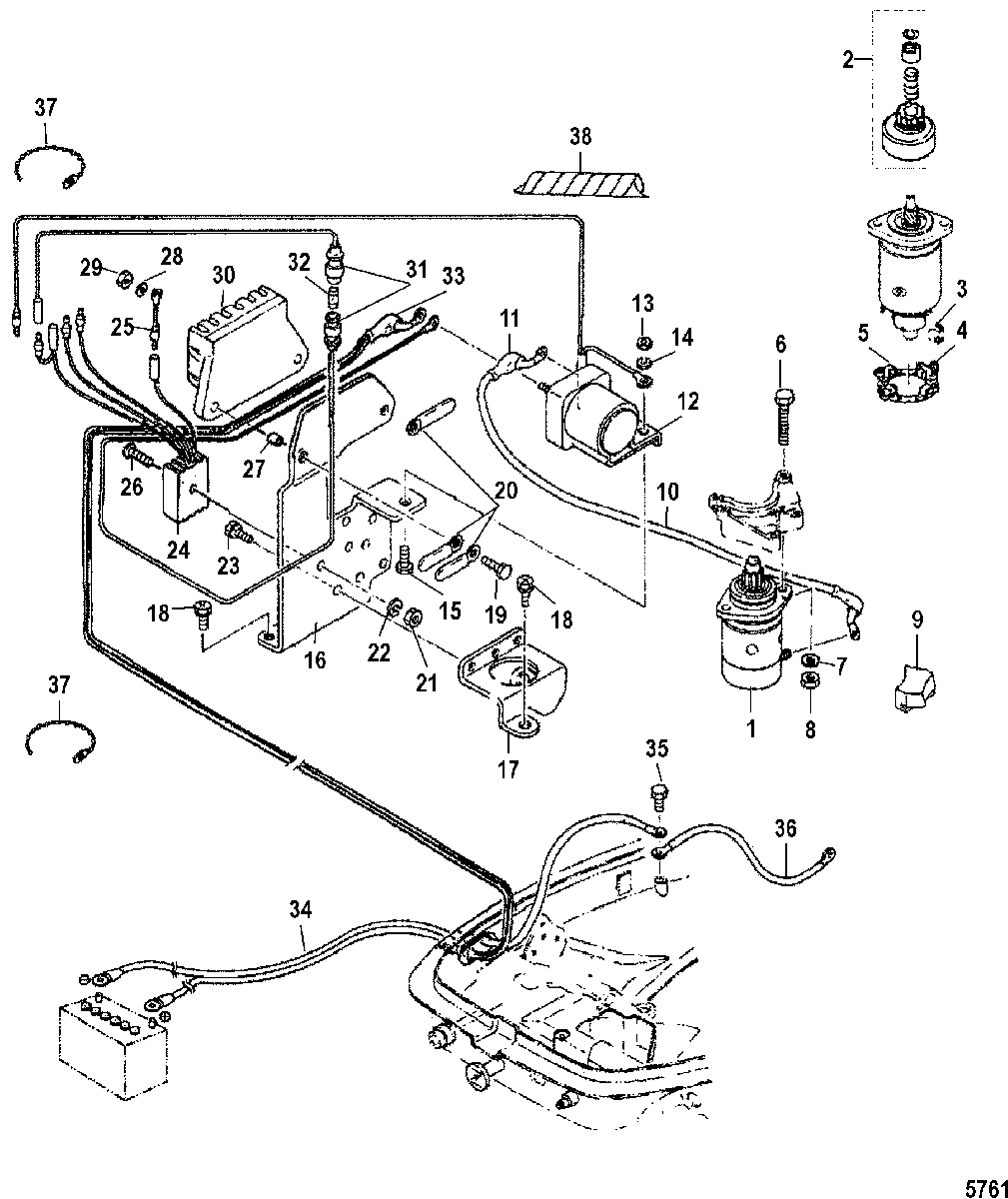

Electric Starter Components для Mercury - 30 (2 CYL.) (International) 0N001875 THRU 0N055504
-
№АртикулНазвание
-
-50-853805T04 STARTER MOTOR KIT, ElectricSTARTER MOTOR KIT, Electric
-
150-853805T01 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2853806 DRIVE KITDRIVE KIT
-
3853807 BRUSH (Positive)BRUSH (Positive)
-
48538071 BRUSH (Negative)BRUSH (Negative)
-
5853808 HOLDER, BrushHOLDER, Brush
-
610-16126 BOLTBOLT
-
713-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
811-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
9853819 RUBBERRUBBER
-
1084-8M0069818 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
1185-8538161 CAPCAP
-
1289-853809T SOLENOID, StarterSOLENOID, Starter
-
1311-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1413-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
1510-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
168M0103003 PLATE, Electrical MountingPLATE, Electrical Mounting
-
178M0103004 BRACKETBRACKET
-
1810-953964 BOLTBOLT
-
1910-16705 BOLTBOLT
-
2054-813275 CLAMPCLAMP
-
2111-16081 NUT, Stainless SteelNUT, Stainless Steel
-
2213-16079 LOCKWASHERLOCKWASHER
-
2310-953963 BOLTBOLT
-
248538116 RECTIFIERRECTIFIER
-
2584-803820 GROUND WIREGROUND WIRE
-
2610-16123 SCREW, (25 mm)SCREW, (25 mm)
-
2723-9528611 COLLARCOLLAR
-
2813-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2911-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3086-853812 TERMINAL BLOCKTERMINAL BLOCK
-
3184-853813A1 WIRE ASSEMBLY, FuseWIRE ASSEMBLY, Fuse
-
3288-853814 FUSEFUSE
-
3385-853816 CAPCAP
-
3484-8M0069793 WIRE, BatteryWIRE, Battery
-
3510-16223 BOLT, (M6 x 14)BOLT, (M6 x 14)
-
3684-8537402 GROUND WIREGROUND WIRE
-
3754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
38853818 SPIRAL RAPSPIRAL RAP
