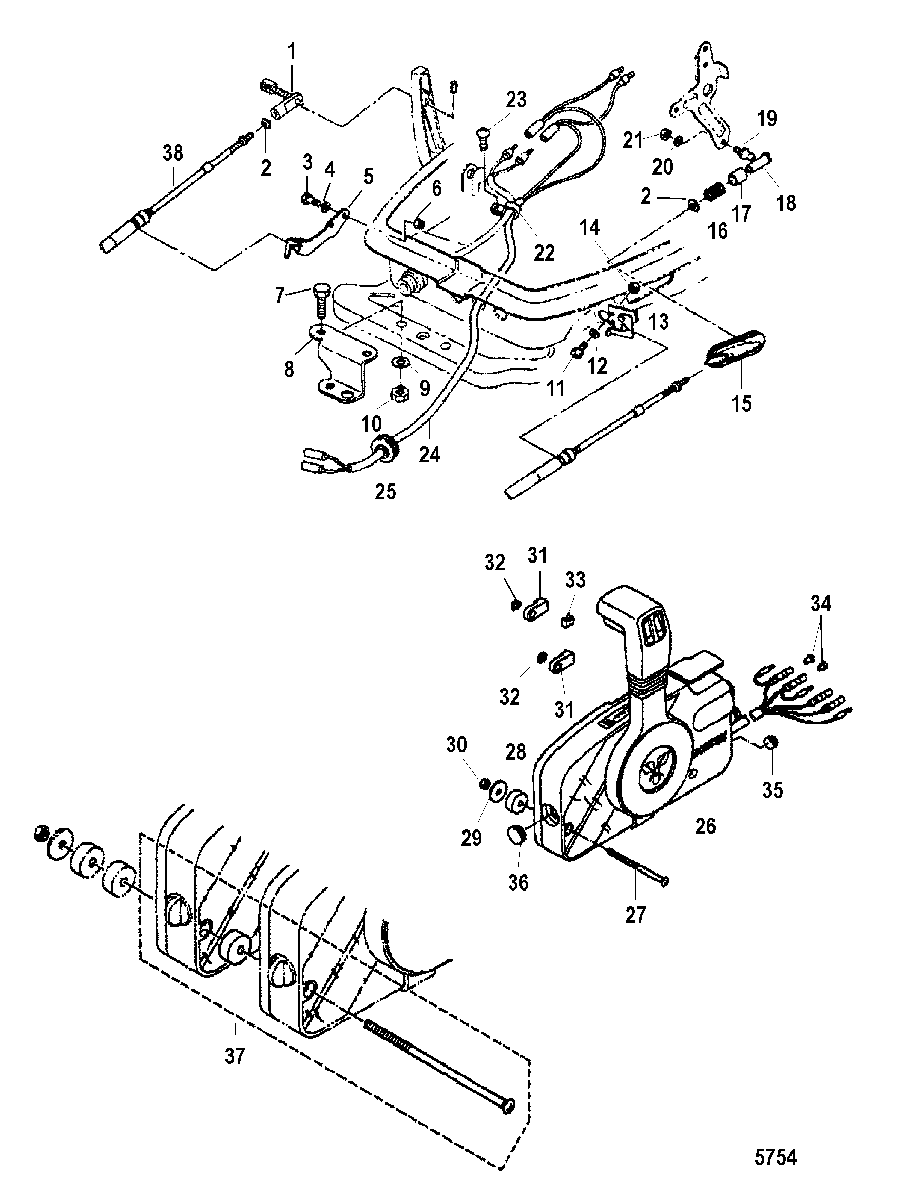

Remote Control Attaching Kit для Mercury - 30 (2 CYL.) (International) 0N001875 THRU 0N055504
-
№АртикулНазвание
-
-853800A02 ATTACHING KIT, Remote ControlATTACHING KIT, Remote Control
-
1853804 CONNECTOR SHIFT KITCONNECTOR SHIFT KIT
-
212-17029 WASHERWASHER
-
310-16705 BOLTBOLT
-
413-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
58538021 RETAINER, Shift CableRETAINER, Shift Cable
-
611-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
710-8230428 BOLTBOLT
-
88538022 PLATE, Steering HookPLATE, Steering Hook
-
912-16192 WASHERWASHER
-
1011-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1110-898103A79 BOLT AND LOCKWASHER, Electroplated (M5 x 18)BOLT AND LOCKWASHER, Electroplated (M5 x 18)
-
1213-16079 LOCKWASHERLOCKWASHER
-
13853802 RETAINER, Throttle CableRETAINER, Throttle Cable
-
1411-16081 NUT, Stainless SteelNUT, Stainless Steel
-
1525-853803 GROMMETGROMMET
-
1624-17028 SPRINGSPRING
-
1717027 CAPCAP
-
1817026 BRACKETBRACKET
-
19853801 BALL JOINTBALL JOINT
-
2013-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2111-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2254-17169 CLAMPCLAMP
-
2310-16827 SCREWSCREW
-
2484-853799A1 CABLE ASSEMBLY
(3.9M)CABLE ASSEMBLY
(3.9M) -
2484-853799A2 CABLE ASSEMBLY
(5.9M)CABLE ASSEMBLY
(5.9M) -
2525-162262 GROMMETGROMMET
-
26881170A9 REMOTE CONTROL
(Without Quicksilver Decal)REMOTE CONTROL
(Without Quicksilver Decal) -
2710-853989 SCREWSCREW
-
2823-853990 SPACERSPACER
-
2912-853991 WASHERWASHER
-
3011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3185-8539921 TERMINAL EYETERMINAL EYE
-
3253-160572 E RINGE RING
-
3325-853993 GROMMETGROMMET
-
3419-853994 PLUGPLUG
-
3525-853995 GROMMETGROMMET
-
3625-8539951 GROMMETGROMMET
-
3710-853997A1 MOUNTING KIT, Twin Remote ControlMOUNTING KIT, Twin Remote Control
-
38NSS NOT SOLD SEPARATE, Throttle/shift Cable
(See Accessory Guide)NOT SOLD SEPARATE, Throttle/shift Cable
(See Accessory Guide)
