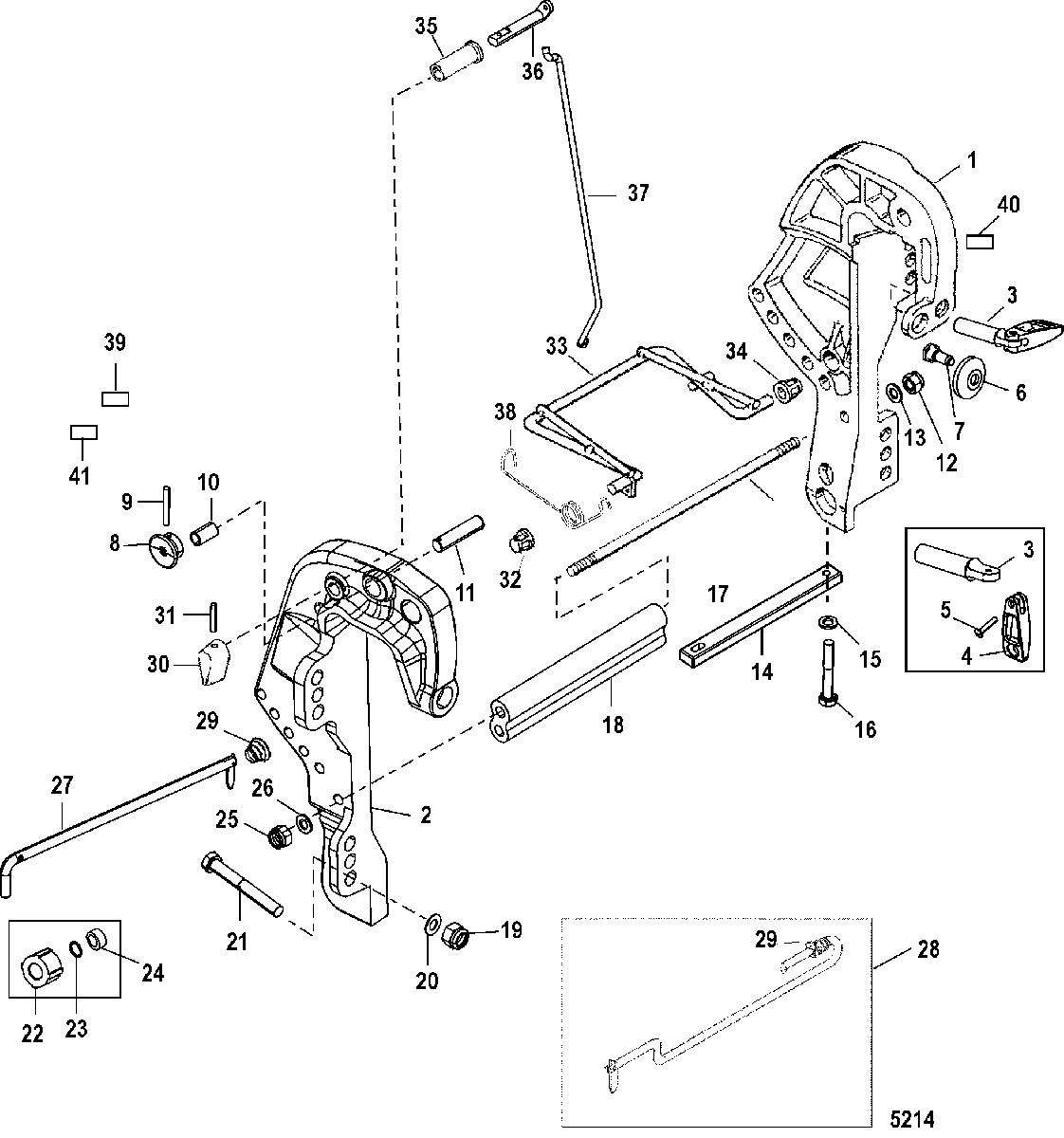

Clamp Bracket для Mercury - 30 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
13411-821773A3 CLAMP BRACKET
(Port Short)(1 Lower Mounting Hole)CLAMP BRACKET
(Port Short)(1 Lower Mounting Hole) -
13411-821773T1 CLAMP BRACKET
(Port Long)(3 Lower Mounting Holes)CLAMP BRACKET
(Port Long)(3 Lower Mounting Holes) -
23412-821774T6 CLAMP BRACKET
(Starboard Short)CLAMP BRACKET
(Starboard Short) -
23412-821774T8 CLAMP BRACKET
(Starboard Long)CLAMP BRACKET
(Starboard Long) -
310-818883A1 THUMB SCREW ASSEMBLY
(Manual)THUMB SCREW ASSEMBLY
(Manual) -
4NSS NOT SOLD SEPARATE, Handle-ManualNOT SOLD SEPARATE, Handle-Manual
-
5NSS NOT SOLD SEPARATE, Rivet-ManualNOT SOLD SEPARATE, Rivet-Manual
-
612-818884 WASHER
(Manual)WASHER
(Manual) -
710-768042 SHOULDER SCREW, Hex
(Manual)SHOULDER SCREW, Hex
(Manual) -
88224011 CAPCAP
-
917-25810 PINPIN
-
1023-86637 BEARINGBEARING
-
1117-8224002 PINPIN
-
1211-40140 NUT, (M10)NUT, (M10)
-
1312-4002319 WASHERWASHER
-
1497-8252711 ANODEANODE
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1716-8M0034459 STUD, (M10 x 277)STUD, (M10 x 277)
-
1823-824952 SPACERSPACER
-
1911-82671117 NUT, (.500-20)
(Long)NUT, (.500-20)
(Long) -
1911-82671117 NUT, (.500-20)
(Short-Top)NUT, (.500-20)
(Short-Top) -
1911-4013710 NUT, (M10) (M10 x 1.5)
(Short-Bottom)NUT, (M10) (M10 x 1.5)
(Short-Bottom) -
2012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(Long)WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(Long) -
2012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(Short-Top)WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(Short-Top) -
2012-4002319 WASHER
(Short-Bottom)WASHER
(Short-Bottom) -
2110-814259 SCREW, (.500-20 x 4.00)
(Long)SCREW, (.500-20 x 4.00)
(Long) -
2110-814259 SCREW, (.500-20 x 4.00)
(Short-Top)SCREW, (.500-20 x 4.00)
(Short-Top) -
2110-826110 SCREW
(Short-Bottom)SCREW
(Short-Bottom) -
2219624A1 SEAL KITSEAL KIT
-
2325-29619 O-RING, (.583 x .103)O-RING, (.583 x .103)
-
2423-78861 SPACERSPACER
-
2511-40140 NUT, (M10)NUT, (M10)
-
2612-4002319 WASHERWASHER
-
2717-8M0026103 PIN ASSEMBLY, Tilt Lock
(Work)PIN ASSEMBLY, Tilt Lock
(Work) -
2817-853923A1 PIN
(Manual Trim)PIN
(Manual Trim) -
2924-821461 SPRINGSPRING
-
30822409 LEVER, Shallow Water DriveLEVER, Shallow Water Drive
-
3117-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
3223-824858 BUSHING, PLASTICBUSHING, PLASTIC
-
33878580 ROD, Plastic, Shallow Water DriveROD, Plastic, Shallow Water Drive
-
3423-824858 BUSHING, PlasticBUSHING, Plastic
-
3523-823812 BUSHINGBUSHING
-
36822411 ARMARM
-
37878563 LINK RODLINK ROD
-
3824-832085A1 SPRINGSPRING
-
3937-830253 DECAL, Tilt LockDECAL, Tilt Lock
-
40NSS NOT SOLD SEPARATE, Warning DecalNOT SOLD SEPARATE, Warning Decal
-
41NSS NOT SOLD SEPARATE, Shallow Water Drive DecalNOT SOLD SEPARATE, Shallow Water Drive Decal
