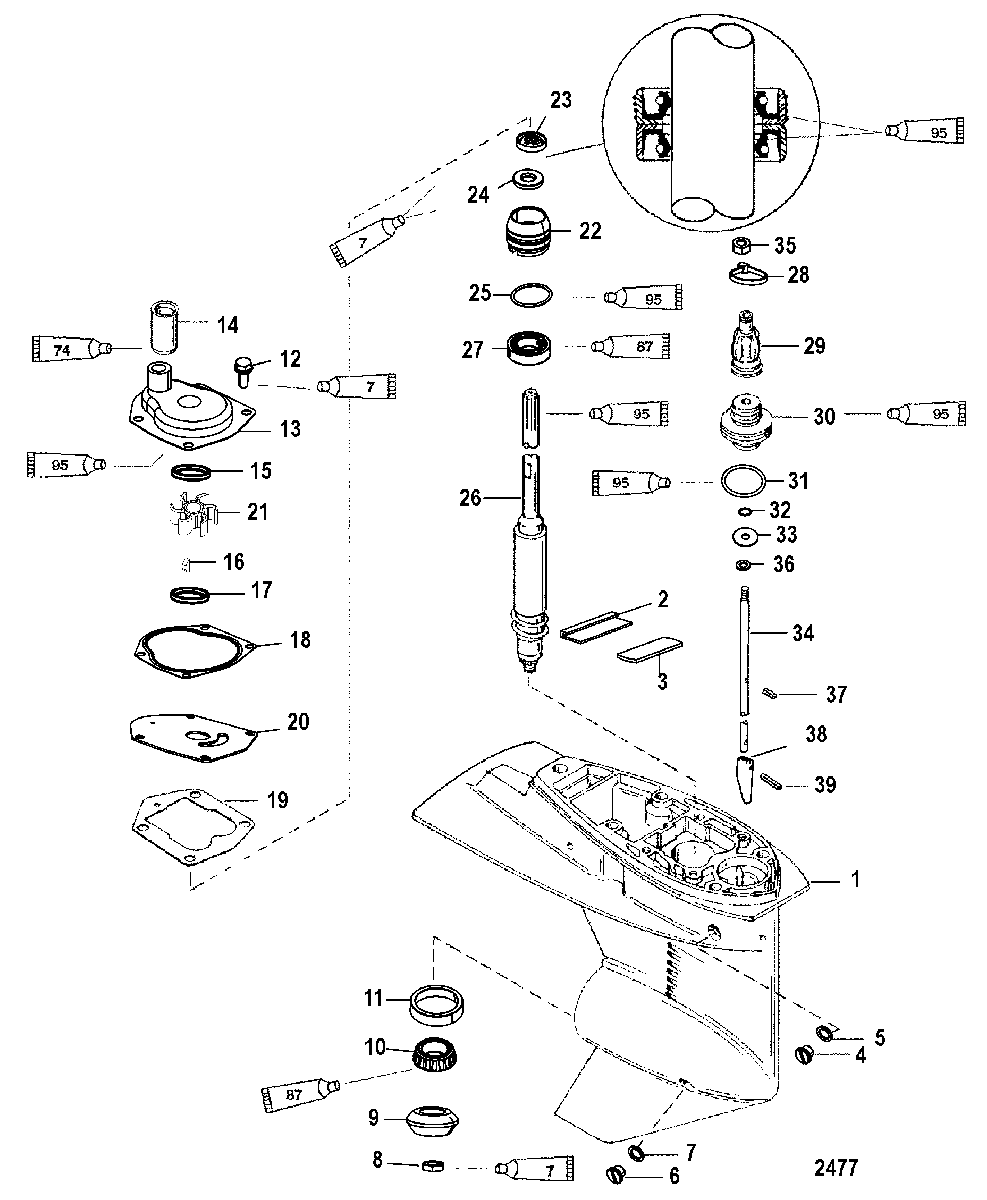

Gear Housing(Driveshaft)(2.00:1 Gear Ratio) для Mercury - 30 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
-1682-821306T8 GEAR HOUSING ASSEMBLY (Short)
Model Version Length Designation: S = 15 InchGEAR HOUSING ASSEMBLY (Short)
Model Version Length Designation: S = 15 Inch -
-1682-821306A55 GEAR HOUSING ASSEMBLY (SL-Export Only)
Model Version Length Designation: SL = 17.5 InchGEAR HOUSING ASSEMBLY (SL-Export Only)
Model Version Length Designation: SL = 17.5 Inch -
-1682-821306T6 GEAR HOUSING ASSEMBLY (Long)
Model Version Length Designation: L = 20 InchGEAR HOUSING ASSEMBLY (Long)
Model Version Length Designation: L = 20 Inch -
-1682-821306A10 GEAR HOUSING ASSEMBLY (LL)
Model Version Length Designation: LL = 22.5 InchGEAR HOUSING ASSEMBLY (LL)
Model Version Length Designation: LL = 22.5 Inch -
11682-821306T12 GEAR HOUSING ASSEMBLY, Basic
(Basic)GEAR HOUSING ASSEMBLY, Basic
(Basic) -
2818226A1 SEAL/PLATE KITSEAL/PLATE KIT
-
3NSS NOT SOLD SEPARATE, PlateNOT SOLD SEPARATE, Plate
-
410-79953Q04 SCREW KIT, (.375-16 x .250) Drain (.375-16 X .25)SCREW KIT, (.375-16 x .250) Drain (.375-16 X .25)
-
512-191833 SEALSEAL
-
610-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
622-8M0058389 PLUG KIT, Drain (Magnetic), MagneticPLUG KIT, Drain (Magnetic), Magnetic
-
712-191833 SEALSEAL
-
811-55910 NUT, (.437-20)NUT, (.437-20)
-
943-821326T1 GEAR, Pinion - 13 TeethGEAR, Pinion - 13 Teeth
-
1031-821321A2 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
11NSS NOT SOLD SEPARATE, Cup (Part of Reference #10)NOT SOLD SEPARATE, Cup (Part of Reference #10)
-
1210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1346-821351A3 HOUSING ASSEMBLY, Water Pump UpperHOUSING ASSEMBLY, Water Pump Upper
-
148235471 SEAL, Water Tube
(Short/Long)SEAL, Water Tube
(Short/Long) -
1512-866451 WASHERWASHER
-
1628-8M0032838 KEYKEY
-
1712-866451 WASHERWASHER
-
1827-822189 GASKET, Upper Water PumpGASKET, Upper Water Pump
-
1927-822217 GASKET, Lower Water Pump, LowerGASKET, Lower Water Pump, Lower
-
208213542 FACE PLATEFACE PLATE
-
2147-8508910 IMPELLERIMPELLER
-
2246-821307A2 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2326-821309 SEAL, OilSEAL, Oil
-
2426-821310 SEAL, OilSEAL, Oil
-
2525-821308 O-RING, (1.421 x .139)O-RING, (1.421 x .139)
-
2645-822466A1 DRIVESHAFT
(Short)(Refer to Model Length)DRIVESHAFT
(Short)(Refer to Model Length) -
2645-858399A1 DRIVESHAFT ASSEMBLY
(SL-Export Only)(Refer to Model Length)DRIVESHAFT ASSEMBLY
(SL-Export Only)(Refer to Model Length) -
2645-822159T1 DRIVESHAFT
(Long)(Refer to Model Length)DRIVESHAFT
(Long)(Refer to Model Length) -
2645-822552A1 DRIVESHAFT
(LL)(Refer to Model Length)DRIVESHAFT
(LL)(Refer to Model Length) -
2730-821311 BEARING, BallBEARING, Ball
-
2854-8M0064024 TIE STRAPTIE STRAP
-
29822158 BOOTBOOT
-
30821827 RETAINERRETAINER
-
3125-26855 O-RING, (1.609 x .139)O-RING, (1.609 x .139)
-
3225-85594 O-RING, (.239 x .174)O-RING, (.239 x .174)
-
3312-814803 WASHERWASHER
-
34822453A1 SHIFT SHAFT
(Short)(Refer to Model Length)SHIFT SHAFT
(Short)(Refer to Model Length) -
34858401A1 SHIFT SHAFT
(SL-Export Only)(Refer to Model Length)SHIFT SHAFT
(SL-Export Only)(Refer to Model Length) -
34821319A1 SHIFT SHAFT
(Long)(Refer to Model Length)SHIFT SHAFT
(Long)(Refer to Model Length) -
34822543A1 SHIFT SHAFT
(LL)(Refer to Model Length)SHIFT SHAFT
(LL)(Refer to Model Length) -
3511-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3717-85593 PIN, (.078 x .437)PIN, (.078 x .437)
-
388213161 CAM, ShiftCAM, Shift
-
3917-822369 PIN, (.125 x .625)PIN, (.125 x .625)
-
-27-822420A94 GASKET SETGASKET SET
-
-823547A2 SEAL KITSEAL KIT
-
-821354A2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
