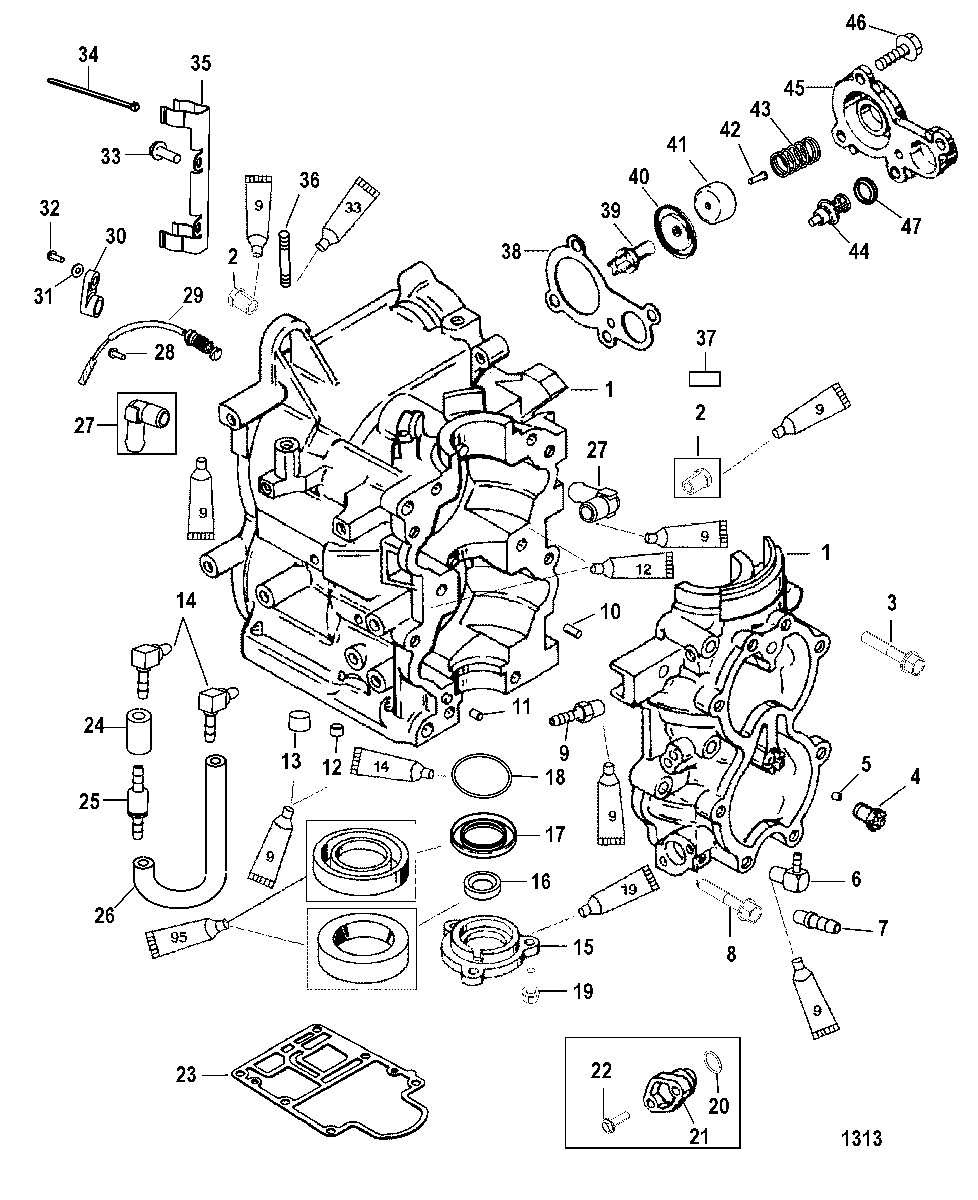

Cylinder Block для Mercury - 30 (2 CYL.) 0P325500 & Up

№

Артикул

Название
1

890-821358T5 CYLINDER BLOCK

CYLINDER BLOCK

92 500 ₽
2

22-328022 PLUG, Pipe (.125-27) Brass

PLUG, Pipe (.125-27) Brass

600 ₽
3

10-81742780 SCREW, (M8 x 80)

SCREW, (M8 x 80)

290 ₽
4

812888A2 CARRIER ASSEMBLY

CARRIER ASSEMBLY

990 ₽
5

21-42657A3 CHECK VALVE
SN# 1B859739 & Below

CHECK VALVE
SN# 1B859739 & Below

460 ₽
5

21-42657A4 CHECK VALVE
SN# 1B859740 & Up

CHECK VALVE
SN# 1B859740 & Up

580 ₽
6

21-8282182 CHECK VALVE

CHECK VALVE

2 300 ₽
7

22-56759 FITTING, Barbed, Barbed
(Electric)

FITTING, Barbed, Barbed
(Electric)

710 ₽
8

10-81742740 SCREW, (M8 x 40)

SCREW, (M8 x 40)

130 ₽
9

22-85439001 CONNECTOR, Male

CONNECTOR, Male

200 ₽
10

17-8M0084653 PIN, Center Main

PIN, Center Main

260 ₽
11

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
12

22-390721 PLUG, Pipe (.125-27) Brass

PLUG, Pipe (.125-27) Brass

660 ₽
13

22-185981 PLUG, Pipe (.375-18)

PLUG, Pipe (.375-18)

210 ₽
14

22-15133 FITTING

FITTING

810 ₽
15

1171-9812A8 END CAP ASSEMBLY

END CAP ASSEMBLY

5 100 ₽
16

26-828932 SEAL, Oil

SEAL, Oil

740 ₽
17

26-41953 SEAL

SEAL

1 140 ₽
18

25-896523 O-RING, (2.175 x .175)

O-RING, (2.175 x .175)

230 ₽
19

10-81742720 SCREW, (M8 x 20)

SCREW, (M8 x 20)

410 ₽
20

25-48462 O-RING, (.614 x .070), Included With Reference 1
(Manual)

O-RING, (.614 x .070), Included With Reference 1
(Manual)

140 ₽
21

8129962 COVER
(Manual)

COVER
(Manual)

1 600 ₽
22

10-40011108 SCREW, (M5 x 20) Stainless Steel
(Manual)

SCREW, (M5 x 20) Stainless Steel
(Manual)

140 ₽
23

27-8M0000822 GASKET, Included With Reference 1

GASKET, Included With Reference 1

2 340 ₽
24

32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 1.50 Inch Length)

TUBING, (20.00 Feet Bulk) (Cut to 1.50 Inch Length)

4 230 ₽
25

21-149126 CHECK VALVE, Double End

CHECK VALVE, Double End

1 060 ₽
26

32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)

TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)

4 230 ₽
27

22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (.125 Male)

FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (.125 Male)

200 ₽
28

10-878609 SCREW, (#10-16 x .600)

SCREW, (#10-16 x .600)

150 ₽
29

787994 SENDER

SENDER

8 510 ₽
30

889733 RETAINER

RETAINER

400 ₽
31

12-56681 WASHER, (.203 x .500 x .032)

WASHER, (.203 x .500 x .032)

140 ₽
32

10-878609 SCREW, (#10-16 x .600)

SCREW, (#10-16 x .600)

150 ₽
33

10-878609 SCREW, (#10-16 x .600)
(Quantity of 3 on Electric)

SCREW, (#10-16 x .600)
(Quantity of 3 on Electric)

150 ₽
34

54-816311T TIE STRAP, (8.00 Inches)
(Electric)

TIE STRAP, (8.00 Inches)
(Electric)

40 ₽
35

8261151 CLAMP, Connector
(Electric)

CLAMP, Connector
(Electric)

1 650 ₽
36

16-8161949 STUD, (M6 x 44)

STUD, (M6 x 44)

810 ₽
37

NSS NOT SOLD SEPARATE, Decal-Sterialization

NOT SOLD SEPARATE, Decal-Sterialization

0 ₽
38

27-8128672 GASKET, Included With Reference 1

GASKET, Included With Reference 1

350 ₽
39

8128821 POPPET

POPPET

990 ₽
40

812887002 DIAPHRAGM

DIAPHRAGM

840 ₽
41

12-94182 WASHER

WASHER

260 ₽
42

10-69570 SCREW, (#10-16 x .750)

SCREW, (#10-16 x .750)

150 ₽
43

24-47968 SPRING

SPRING

430 ₽
44

895338 THERMOSTAT, 54A°C (130A°F)

THERMOSTAT, 54A°C (130A°F)

2 930 ₽
44

895338 THERMOSTAT, 62A°C (143A°F)

THERMOSTAT, 62A°C (143A°F)

2 930 ₽
45

8M0036859 COVER

COVER

3 090 ₽
45

190742 COVER
(Greenland)

COVER
(Greenland)

3 580 ₽
46

10-40011149 SCREW, (M8 x 25) Stainless Steel, Included With Reference #1

SCREW, (M8 x 25) Stainless Steel, Included With Reference #1

140 ₽
47

27-62386001 GASKET, Thermostat (Included With Reference #1)

GASKET, Thermostat (Included With Reference #1)

350 ₽
-

27-822420A94 GASKET SET

GASKET SET

5 660 ₽
-

808569T02 POWERHEAD ASSEMBLY
30 HP

POWERHEAD ASSEMBLY
30 HP

417 950 ₽
-

61-8M0063311 POWERHEAD ASSEMBLY
40 HP

POWERHEAD ASSEMBLY
40 HP

355 390 ₽
