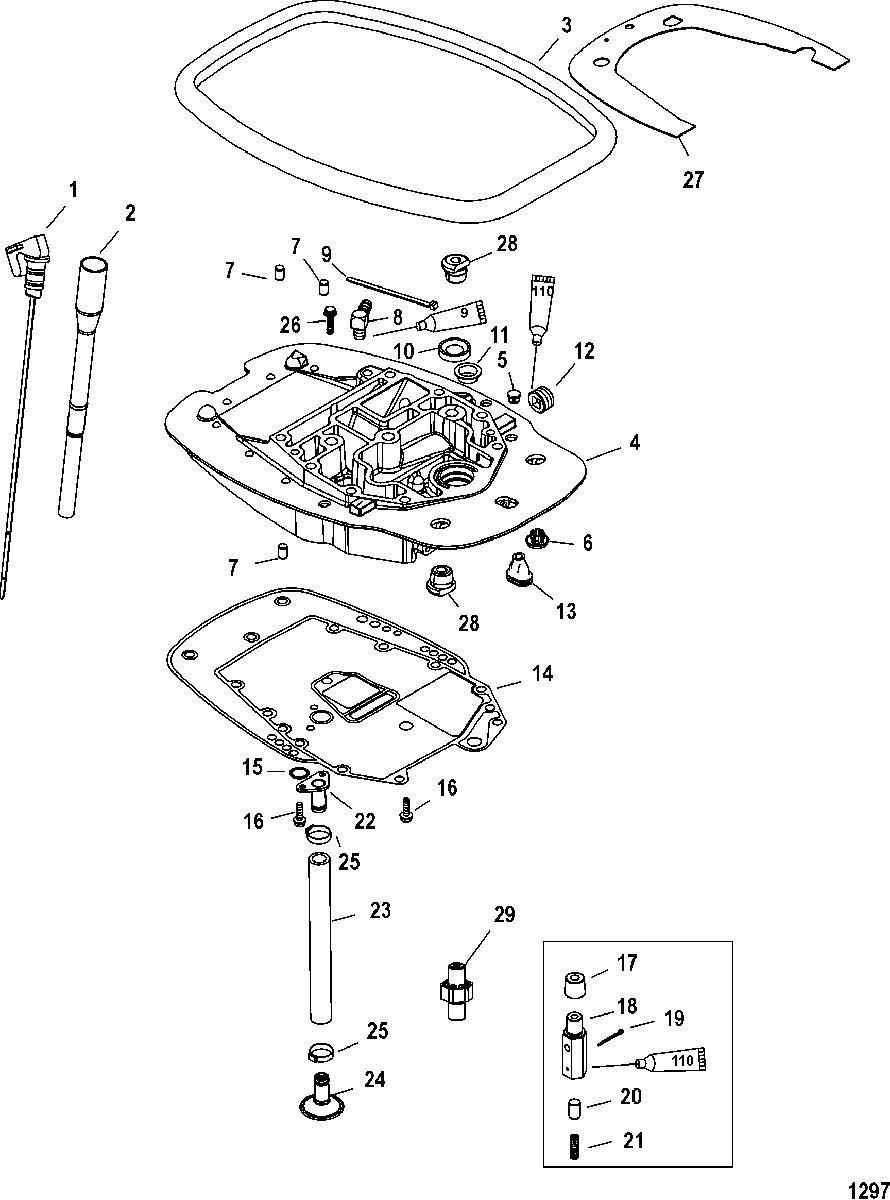

Adaptor Plate для Mercury - 30 Carb (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
1825990 DIPSTICKDIPSTICK
-
2825989003 DIPSTICK TUBE
SN# USA-0T979999/BEL-0P325499 and below & BelowDIPSTICK TUBE
SN# USA-0T979999/BEL-0P325499 and below & Below -
2825989003 DIPSTICK TUBE
SN# USA-0T980000/BEL-0P325500 and up & UpDIPSTICK TUBE
SN# USA-0T980000/BEL-0P325500 and up & Up -
38560552 SEALSEAL
-
4825228A17 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
519-822464 PLUGPLUG
-
619-48323 PLUGPLUG
-
717-23784 PIN, DowelPIN, Dowel
-
822-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1026-828932 SEAL, Oil
(NON-BIGFOOT)SEAL, Oil
(NON-BIGFOOT) -
1026-16977 SEAL, Oil
(BIGFOOT)SEAL, Oil
(BIGFOOT) -
1123-856743 BUSHING
(NON-BIGFOOT)BUSHING
(NON-BIGFOOT) -
1222-889567 PLUG, (.500-14)PLUG, (.500-14)
-
1325-822408001 GROMMET
(NON-BIGFOOT) SN# USA-0T979999/BEL-0P325499 and below & BelowGROMMET
(NON-BIGFOOT) SN# USA-0T979999/BEL-0P325499 and below & Below -
1325-822408001 GROMMET
(NON-BIGFOOT) SN# USA-0T980000/BEL-0P325500 and up & UpGROMMET
(NON-BIGFOOT) SN# USA-0T980000/BEL-0P325500 and up & Up -
1427-892320001 GASKET
SN# USA-0T979999/BEL-0P325499 and below & BelowGASKET
SN# USA-0T979999/BEL-0P325499 and below & Below -
1427-892320001 GASKET
SN# USA-0T980000/BEL-0P325500 and up & UpGASKET
SN# USA-0T980000/BEL-0P325500 and up & Up -
1525-845746 O-RINGO-RING
-
1610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
17856592 DEFLECTOR, Oil
SN# 0T459948 and below & BelowDEFLECTOR, Oil
SN# 0T459948 and below & Below -
18881872A1 BODY ASSEMBLY, Oil Pressure Relief
SN# 0T459948 and below & BelowBODY ASSEMBLY, Oil Pressure Relief
SN# 0T459948 and below & Below -
1918-45882 COTTER PIN
SN# 0T459948 and below & BelowCOTTER PIN
SN# 0T459948 and below & Below -
208252151 PLUNGER
SN# 0T459948 and below & BelowPLUNGER
SN# 0T459948 and below & Below -
2124-825216 SPRING
SN# 0T459948 and below & BelowSPRING
SN# 0T459948 and below & Below -
22893765 PLATE, Oil Pickup-TopPLATE, Oil Pickup-Top
-
2332-854793 HOSE, Oil PickupHOSE, Oil Pickup
-
24893700 BAFFLEBAFFLE
-
2554-855228 CLAMPCLAMP
-
2610-4007455 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
278289151 HEAT SHIELDHEAT SHIELD
-
2825-19564001 GROMMET
(NON-POWER TRIM)GROMMET
(NON-POWER TRIM) -
2825-19565002 GROMMET
(SPLIT- POWER TRIM)GROMMET
(SPLIT- POWER TRIM) -
29881872A1 BODY, Oil Pressure Relief
SN# OT459959 and up & UpBODY, Oil Pressure Relief
SN# OT459959 and up & Up
