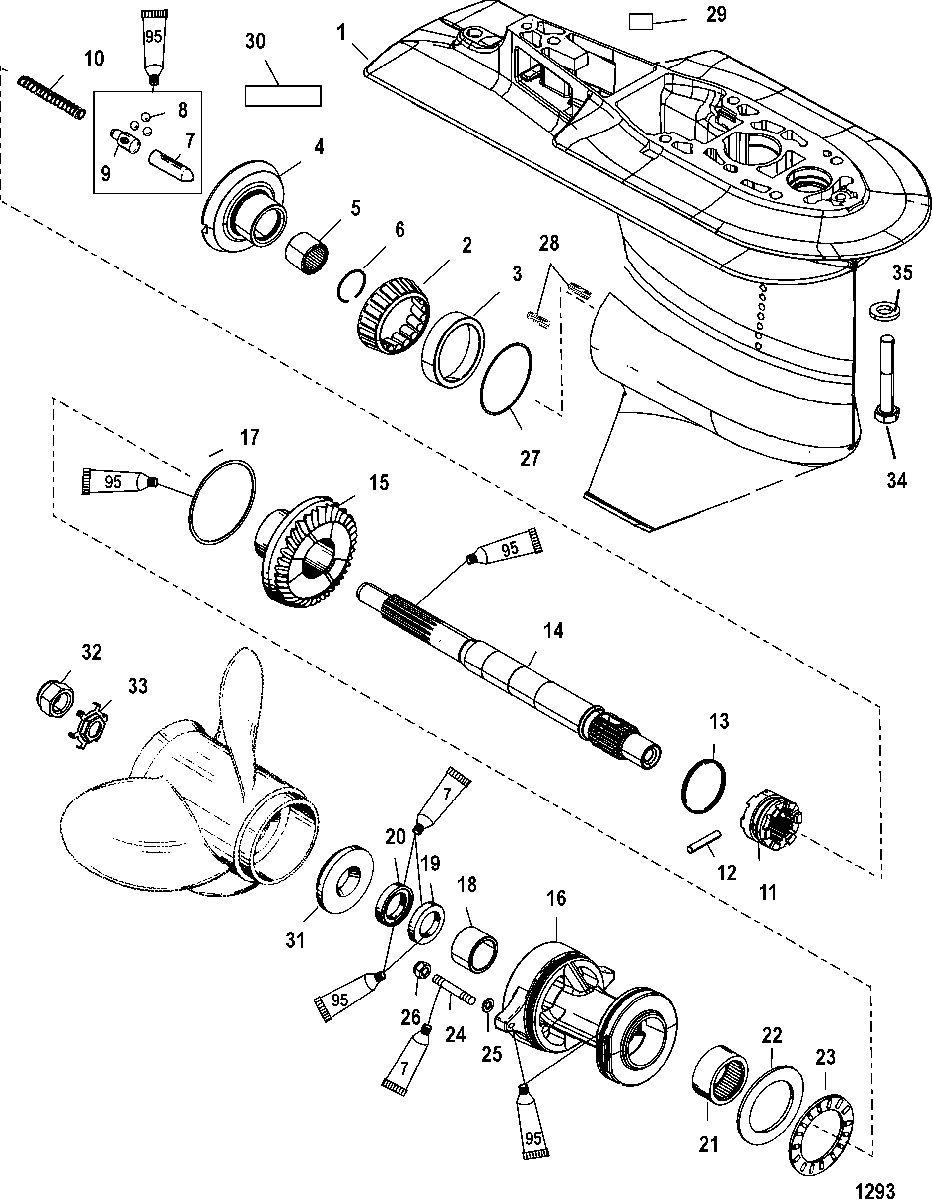

Gear Housing(Prop Shaft - 2.31:1 - S/N-0T625303 and below) для Mercury - 30 Carb (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
-1667-9011G86 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
11667-9011G59 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
231-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
3NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
443-859472A3 GEAR ASSEMBLY, Forward - 30 TeethGEAR ASSEMBLY, Forward - 30 Teeth
-
531-30895T BEARING, NeedleBEARING, Needle
-
653-856823 RING, RetainingRING, Retaining
-
7850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
830-44530 BALLBALL
-
9NSS NOT SOLD SEPARATE, SlideNOT SOLD SEPARATE, Slide
-
1024-850327 SPRINGSPRING
-
1152-850048T CLUTCHCLUTCH
-
1217-8M0100263 PIN, CrossPIN, Cross
-
1324-30893 SPRINGSPRING
-
1444-8M0140445 PROPELLER SHAFTPROPELLER SHAFT
-
1543-850034T GEAR, Reverse (30 Teeth)GEAR, Reverse (30 Teeth)
-
1612596T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
1725-861844 O-RING, (3.609 x .139)O-RING, (3.609 x .139)
-
1831-30956T BEARING, NeedleBEARING, Needle
-
1926-70080 SEAL, Oil (INNER)SEAL, Oil (INNER)
-
2026-70081 SEAL, Oil (OUTER)SEAL, Oil (OUTER)
-
2131-12578T BEARING, RollerBEARING, Roller
-
2212-12577 THRUST WASHERTHRUST WASHER
-
2331-12576 BEARING, ThrustBEARING, Thrust
-
2416-8M0034456 STUD, (M8 x 48)STUD, (M8 x 48)
-
2512-855941 WASHER, (.323 x .590 x .112) Stainless SteelWASHER, (.323 x .590 x .112) Stainless Steel
-
2611-401378 NUT, (M8)NUT, (M8)
-
2715-8M0063266 SHIM SETSHIM SET
-
288227731 INSERT, ThreadedINSERT, Threaded
-
29NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
30NSS NOT SOLD SEPARATE, Decal-Prop OperationNOT SOLD SEPARATE, Decal-Prop Operation
-
3113191Q01 THRUST WASHER
(SERVICE ITEMS)THRUST WASHER
(SERVICE ITEMS) -
3211-52707Q1 PROP NUT KIT, (.750-16)
(SERVICE ITEMS)PROP NUT KIT, (.750-16)
(SERVICE ITEMS) -
3314-816629Q TAB WASHER
(SERVICE ITEMS)TAB WASHER
(SERVICE ITEMS) -
3410-4000380 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
3512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
-26-43035A05 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
