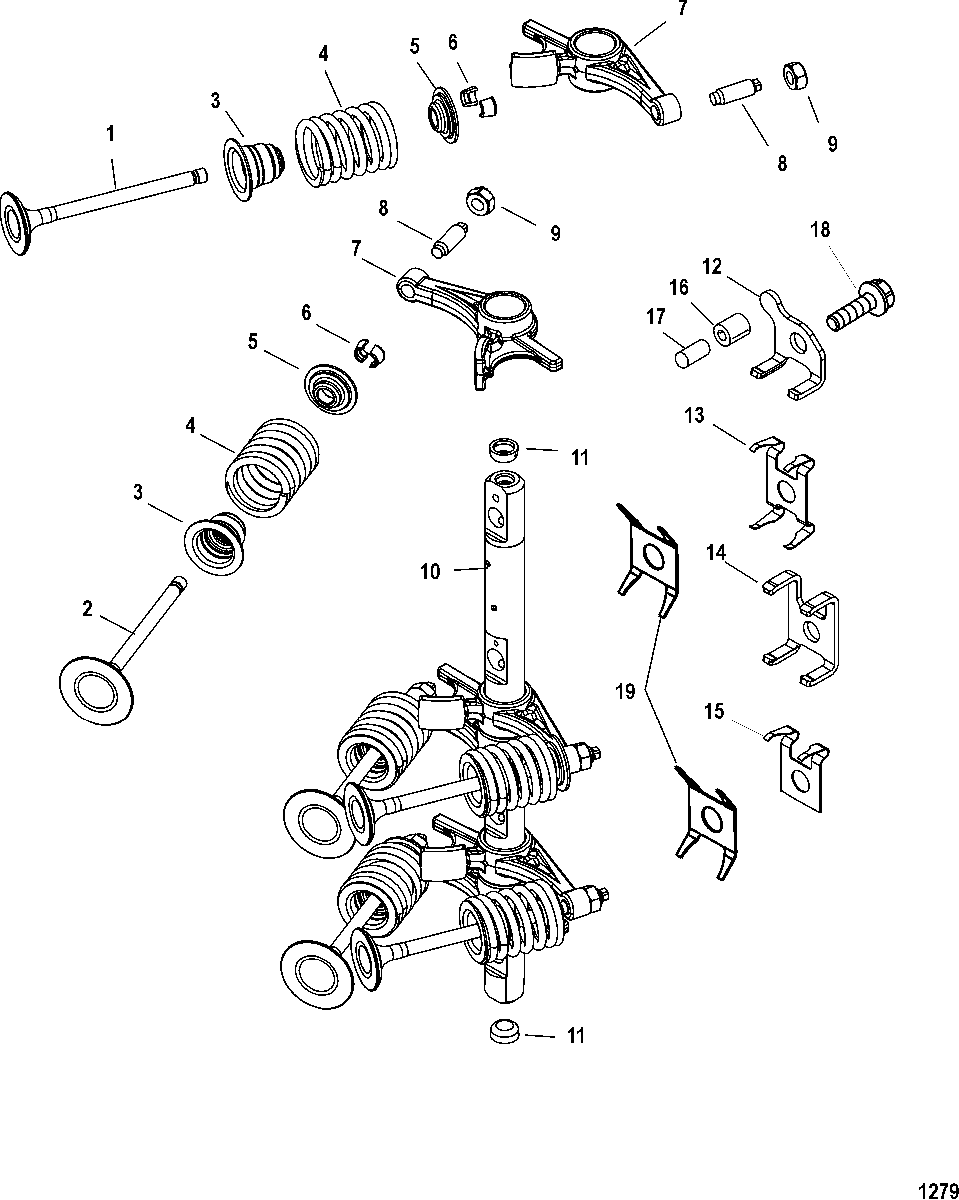

Intake/Exhaust Valves для Mercury - 30 Carb (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
18M0065029 VALVE, ExhaustVALVE, Exhaust
-
2832990T3 VALVE, IntakeVALVE, Intake
-
326-858271 SEALSEAL
-
424-893552 SPRING, Valve - OuterSPRING, Valve - Outer
-
5893553 RETAINERRETAINER
-
628-893554 KEYKEY
-
7898821A01 ROCKER ARMROCKER ARM
-
8898821A01 SCREWSCREW
-
911-826150 NUTNUT
-
10834780T1 SHAFT, RockerSHAFT, Rocker
-
11NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
12893560 BRACKETBRACKET
-
1324-893562 SPRINGSPRING
-
14893561 BRACKETBRACKET
-
1524-854713 SPRINGSPRING
-
1627-893645 GASKETGASKET
-
1717-859575 PINPIN
-
1810-875218 SCREW, (M8 x 23)SCREW, (M8 x 23)
-
1924-893563 SPRING, Overload
SN# USA-USA-0T800999/BEL-0P267999 and below & BelowSPRING, Overload
SN# USA-USA-0T800999/BEL-0P267999 and below & Below -
1924-893563 SPRING, Overload
SN# USA-0T801000/BEL-0P268000 and up & UpSPRING, Overload
SN# USA-0T801000/BEL-0P268000 and up & Up -
-27-825231A02 GASKET SET, EngineGASKET SET, Engine
-
-893504T01 CYLINDER HEAD ASSEMBLY
(ELECTRIC)CYLINDER HEAD ASSEMBLY
(ELECTRIC) -
-893504T02 CYLINDER HEAD ASSEMBLY
(MANUAL)CYLINDER HEAD ASSEMBLY
(MANUAL)
