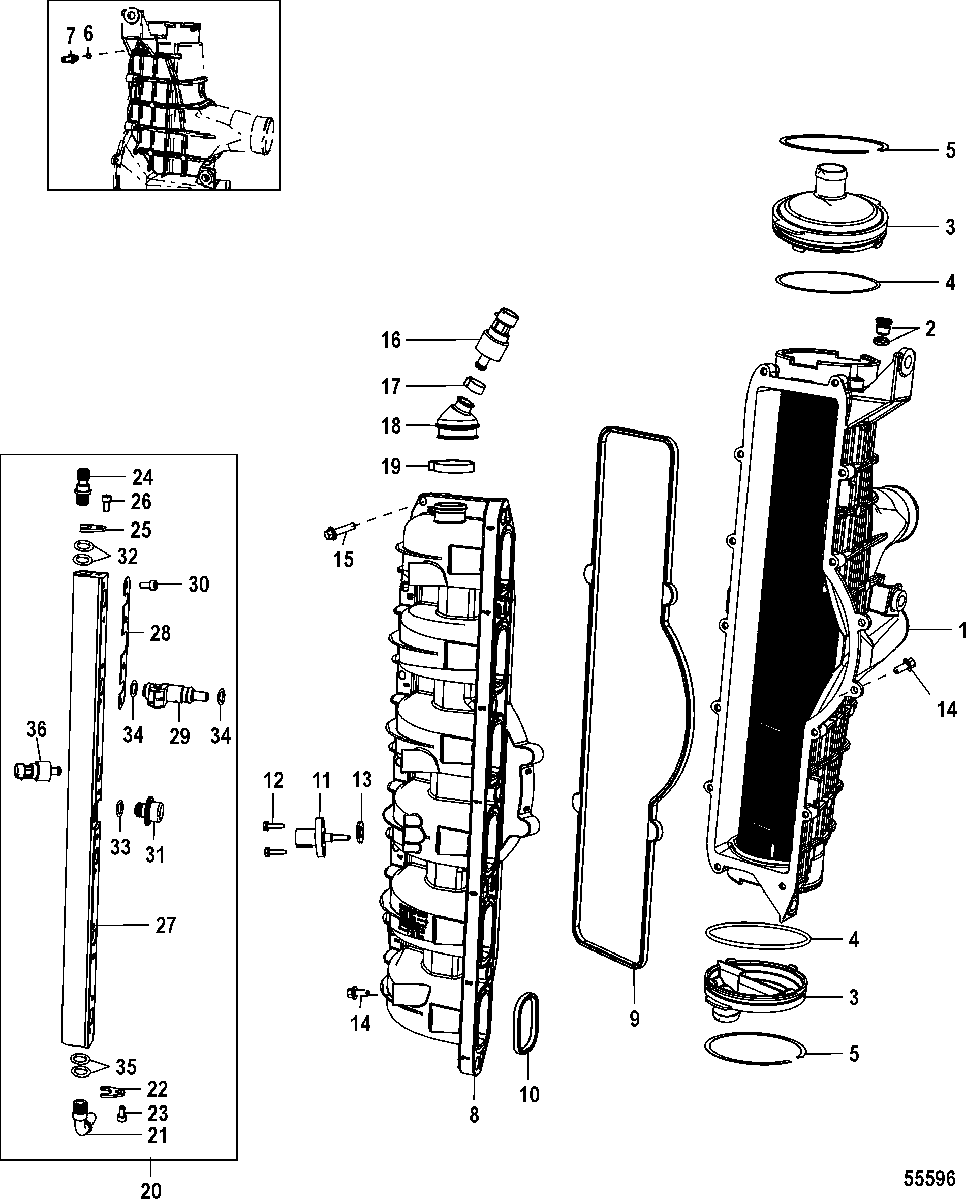

Charge Cooler/Intake Manifold(Gen II) End Cap Serviced для Mercury - 350SCi Verado 1B716557 & Up
-
№АртикулНазвание
-
-8M0131231 MODULE ASSEMBLY, Integrated Air FuelMODULE ASSEMBLY, Integrated Air Fuel
-
18M0132388 CAC ASSEMBLYCAC ASSEMBLY
-
219-8M0048079 PLUG, Zero Leak (M8 x 1.0)PLUG, Zero Leak (M8 x 1.0)
-
38M0046698 END CAP ASSEMBLYEND CAP ASSEMBLY
-
425-8M0039516 O-RINGO-RING
-
553-8M0039464 RING, RetainingRING, Retaining
-
625-8M0040116 O-RINGO-RING
-
722-8M0039993 FITTINGFITTING
-
8NSS NOT SOLD SEPARATE
INTAKE MANIFOLDNOT SOLD SEPARATE
INTAKE MANIFOLD -
9895019 SEAL, Manifold to CACSEAL, Manifold to CAC
-
10895020 SEAL, Manifold HeadSEAL, Manifold Head
-
11891663001 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1210-895054 SCREWSCREW
-
138M0142578 GASKETGASKET
-
1410-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to ManifoldSCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold
-
1410-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, CAC to ManifoldSCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold
-
1510-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CACSCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC
-
168M6000639 SENSORSENSOR
-
1754-13791 CLAMP, (15.7 mm)CLAMP, (15.7 mm)
-
188M0041053 BOOT, MAP SensorBOOT, MAP Sensor
-
1954-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
208M0043469 FUEL RAIL ASSEMBLYFUEL RAIL ASSEMBLY
-
2132-8M0047054 TUBE KIT, Fuel InletTUBE KIT, Fuel Inlet
-
228M0041097 BRACKET, RetainingBRACKET, Retaining
-
2310-8M0041100 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
2421-8M0043468 VALVE KIT, ShraderVALVE KIT, Shrader
-
258M0041097 BRACKET, RetainingBRACKET, Retaining
-
2610-8M0041100 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
27NSS NOT SOLD SEPARATE, FUEL RAILNOT SOLD SEPARATE, FUEL RAIL
-
288M0041096 BRACKET, Fuel Injector MountingBRACKET, Fuel Injector Mounting
-
29842915T01 INJECTOR ASSEMBLY, FuelINJECTOR ASSEMBLY, Fuel
-
3010-8M0041100 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
318M0041101 DAMPER, Fuel RailDAMPER, Fuel Rail
-
-8M0047056 O-RING KITO-RING KIT
-
32NSS NOT SOLD SEPARATE, O-RING, Shrader ValveNOT SOLD SEPARATE, O-RING, Shrader Valve
-
3325-851889 O-RING, DamperO-RING, Damper
-
3425-851889 O-RING, Fuel InjectorO-RING, Fuel Injector
-
35NSS NOT SOLD SEPARATE, O-RING, TubeNOT SOLD SEPARATE, O-RING, Tube
-
368M6000637 SENSOR, PressureSENSOR, Pressure
