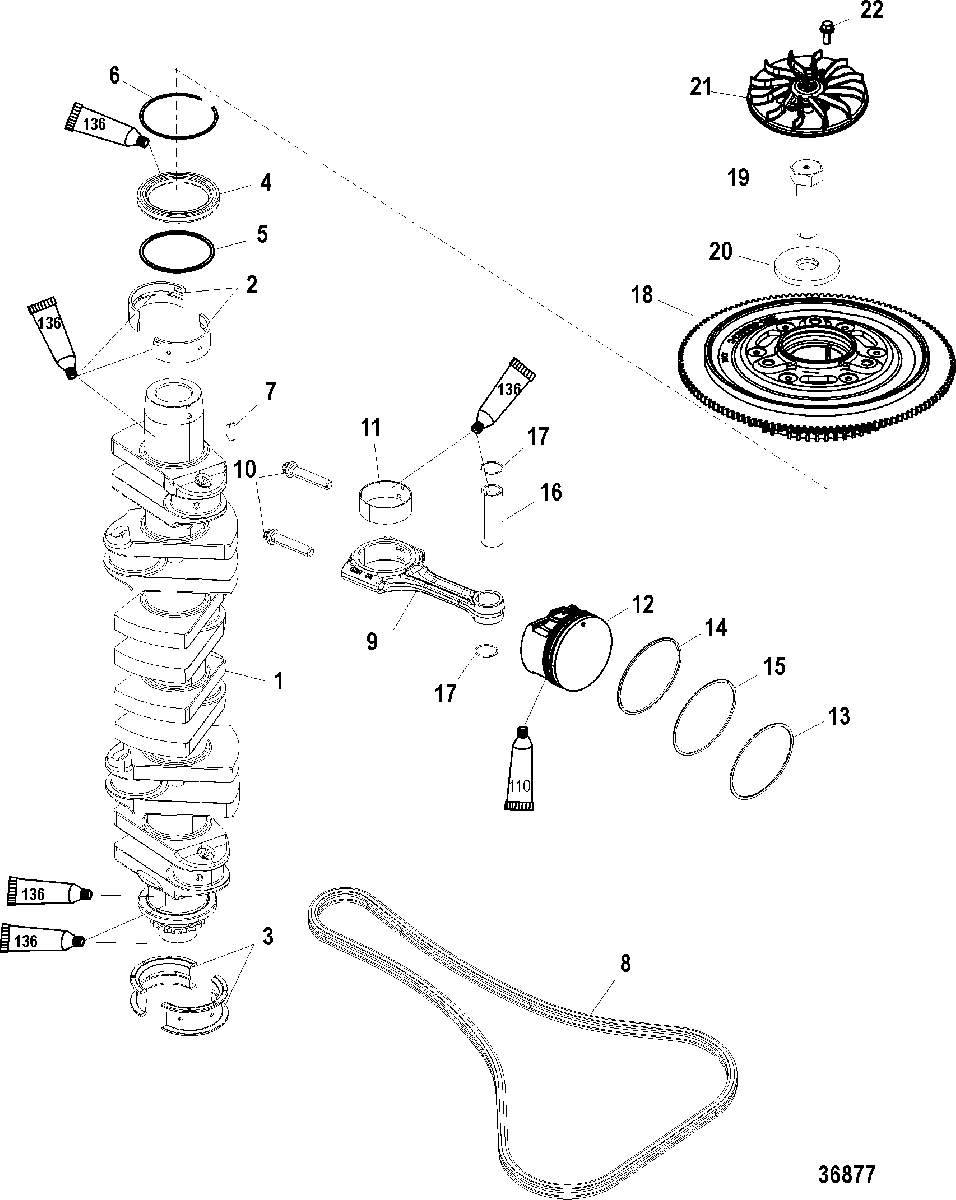

Crankshaft, Pistons and Connecting Rods для Mercury - 350SCi Verado 1B716557 & Up
-
№АртикулНазвание
-
1400-891644A04 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
223-897498T05 BEARING, Main (Green)BEARING, Main (Green)
-
223-897498T06 BEARING, Main (Navy Blue)BEARING, Main (Navy Blue)
-
223-897498T07 BEARING, Main (White)BEARING, Main (White)
-
223-897498T08 BEARING, Main (Orange)BEARING, Main (Orange)
-
323-8M0117003 BEARING, Thrust - Green, Crankshaft-LowerBEARING, Thrust - Green, Crankshaft-Lower
-
323-8M0117001 BEARING, Thrust - Navy Blue, Crankshaft-LowerBEARING, Thrust - Navy Blue, Crankshaft-Lower
-
323-8M0117002 BEARING, Thrust - White, Crankshaft-LowerBEARING, Thrust - White, Crankshaft-Lower
-
323-8M0117004 BEARING, Thrust - Orange, Crankshaft-LowerBEARING, Thrust - Orange, Crankshaft-Lower
-
426-8M0032912 SEAL, Top Main BearingSEAL, Top Main Bearing
-
523-896883 SPACERSPACER
-
653-896882 RING, RetainingRING, Retaining
-
728-91800 KEY, WoodruffKEY, Woodruff
-
88M0103398 CHAIN, Roller Cam DriveCHAIN, Roller Cam Drive
-
9662-8M0103285 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1010-884441 BOLTBOLT
-
1123-892005A01 BEARING, Connecting Rod - BlueBEARING, Connecting Rod - Blue
-
1123-892005A02 BEARING, Connecting Rod - WhiteBEARING, Connecting Rod - White
-
1123-892005A03 BEARING, Connecting Rod - OrangeBEARING, Connecting Rod - Orange
-
12700-8M0110019 PISTON ASSEMBLYPISTON ASSEMBLY
-
1339-881180A02 RING SET, PistonRING SET, Piston
-
14NSS NOT SOLD SEPARATE, Piston Ring-OilNOT SOLD SEPARATE, Piston Ring-Oil
-
15NSS NOT SOLD SEPARATE, Piston Ring-2ndNOT SOLD SEPARATE, Piston Ring-2nd
-
16NSS NOT SOLD SEPARATE, Piston PinNOT SOLD SEPARATE, Piston Pin
-
1740-896594 CIRCLIPCIRCLIP
-
18200-888983T03 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
1910-880515 BOLT, (M20 x 68 MM)BOLT, (M20 x 68 MM)
-
2012-8M0090010 WASHERWASHER
-
218M0010316 FANFAN
-
2210-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
-27-880552A08 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247A08 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
