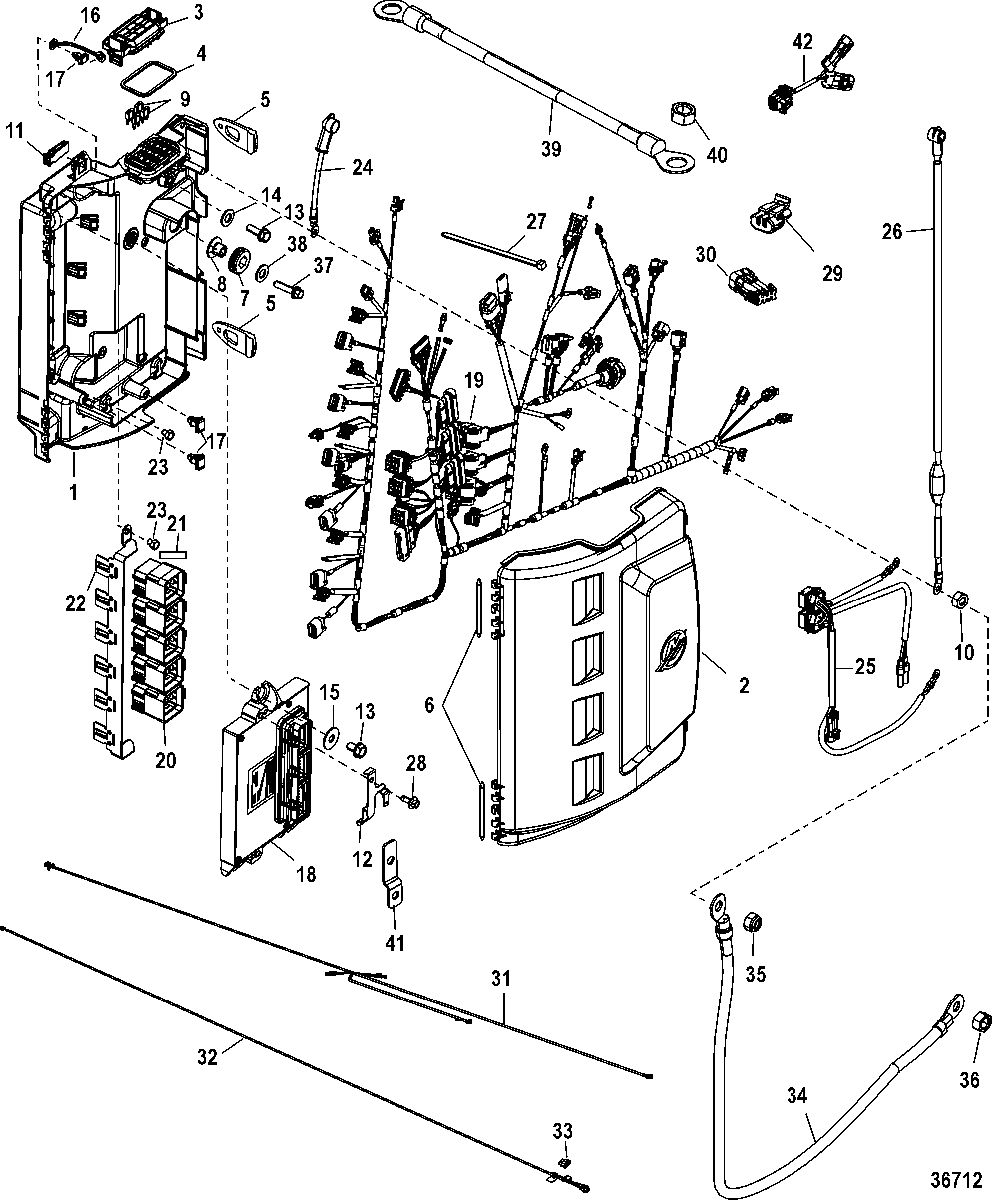

Electrical Box Components для Mercury - 350SCi Verado 1B716557 & Up

№

Артикул

Название
-

NSS NOT SOLD SEPARATE, Electrical Box-Complete

NOT SOLD SEPARATE, Electrical Box-Complete

0 ₽
-

NSS NOT SOLD SEPARATE, Electrical Box

NOT SOLD SEPARATE, Electrical Box

0 ₽
1

885560T03 BASE, Electrical Box

BASE, Electrical Box

24 070 ₽
2

885561T COVER, Fuse Box

COVER, Fuse Box

16 860 ₽
3

888491 COVER, Fuse

COVER, Fuse

410 ₽
4

25-885583 SEAL

SEAL

120 ₽
5

889531 STRAP

STRAP

140 ₽
6

885584 PIN, Hinge

PIN, Hinge

440 ₽
7

25-833155 GROMMET

GROMMET

280 ₽
8

23-8502341 BUSHING

BUSHING

220 ₽
9

88-832969T20 FUSE, Mini - Yellow - 20 Ampere

FUSE, Mini - Yellow - 20 Ampere

270 ₽
9

88-8329692 FUSE, Mini - Gray - 2 Ampere

FUSE, Mini - Gray - 2 Ampere

270 ₽
10

11-400213 NUT, (M8) Stainless Steel

NUT, (M8) Stainless Steel

180 ₽
11

895099 EXTRACTOR, Fuse

EXTRACTOR, Fuse

150 ₽
12

54-891520001 CLIP

CLIP

450 ₽
13

10-40011146 SCREW, (M8 x 13) Stainless Steel

SCREW, (M8 x 13) Stainless Steel

200 ₽
14

12-843108 WASHER, (.330 x .560 x .060) Stainless Steel

WASHER, (.330 x .560 x .060) Stainless Steel

60 ₽
15

12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel

WASHER, (.344 x 1.00 x .063) Stainless Steel

50 ₽
16

892244 STRAP, Cover

STRAP, Cover

200 ₽
17

54-879962 CLIP

CLIP

110 ₽
18

89790754T PCM, Propulsion Control Module
SN# 1B718255 & Below

PCM, Propulsion Control Module
SN# 1B718255 & Below

594 280 ₽
18

89790754T PCM, Propulsion Control Module
SN# 1B718256 & Up

PCM, Propulsion Control Module
SN# 1B718256 & Up

594 280 ₽
18

89790755T PCM, Propulsion Control Module
EU

PCM, Propulsion Control Module
EU

686 450 ₽
19

84-880616T08 HARNESS ASSEMBLY, Engine

HARNESS ASSEMBLY, Engine

111 960 ₽
-

NSS NOT SOLD SEPARATE, Relay Bracket Assembly

NOT SOLD SEPARATE, Relay Bracket Assembly

0 ₽
20

882751A04 RELAY ASSEMBLY

RELAY ASSEMBLY

1 990 ₽
21

NSS NOT SOLD SEPARATE, Decal-Trim Relay

NOT SOLD SEPARATE, Decal-Trim Relay

0 ₽
22

889532 BRACKET

BRACKET

1 360 ₽
23

10-40007103 SCREW, (M5 x 6)

SCREW, (M5 x 6)

180 ₽
24

84-93388A17 CABLE ASSEMBLY, (8.50 Inches)

CABLE ASSEMBLY, (8.50 Inches)

2 020 ₽
25

84-879345T34 HARNESS ASSEMBLY, Trim

HARNESS ASSEMBLY, Trim

6 210 ₽
26

84-892137T03 HARNESS ASSEMBLY, Fuse

HARNESS ASSEMBLY, Fuse

9 530 ₽
27

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
28

10-82129114 SCREW, (M6 x 14)

SCREW, (M6 x 14)

120 ₽
29

830797A01 CONNECTOR ASSEMBLY, Weather Cap - 2 Pin Female

CONNECTOR ASSEMBLY, Weather Cap - 2 Pin Female

410 ₽
30

877613A1 CONNECTOR ASSEMBLY, 8 Pin

CONNECTOR ASSEMBLY, 8 Pin

1 090 ₽
31

84-899887T21 HARNESS ASSEMBLY, Vessel

HARNESS ASSEMBLY, Vessel

17 740 ₽
32

84-8M0113732 HARNESS ASSEMBLY
Long

HARNESS ASSEMBLY
Long

6 160 ₽
33

862646 FUSE, Tan - 5 Ampere

FUSE, Tan - 5 Ampere

270 ₽
34

84-88439A25 CABLE ASSEMBLY, Battery - Positive
(Long)

CABLE ASSEMBLY, Battery - Positive
(Long)

11 600 ₽
35

11-401388 NUT, (M8) Stainless Steel

NUT, (M8) Stainless Steel

260 ₽
36

11-86226 NUT, (.375-16), Battery Cable-Positive

NUT, (.375-16), Battery Cable-Positive

220 ₽
37

10-8M0103814 SCREW, (M8 x 35 MM)

SCREW, (M8 x 35 MM)

330 ₽
38

12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel

WASHER, (.344 x 1.00 x .063) Stainless Steel

50 ₽
39

84-88439A26 CABLE ASSEMBLY, Battery - Negative

CABLE ASSEMBLY, Battery - Negative

5 340 ₽
40

11-68292 NUT, (.312-18), Battery Cable-Negative

NUT, (.312-18), Battery Cable-Negative

200 ₽
41

858953 BRACKET

BRACKET

1 050 ₽
42

84-898289T74 HARNESS, Adaptor-Fuel Tank

HARNESS, Adaptor-Fuel Tank

1 660 ₽
