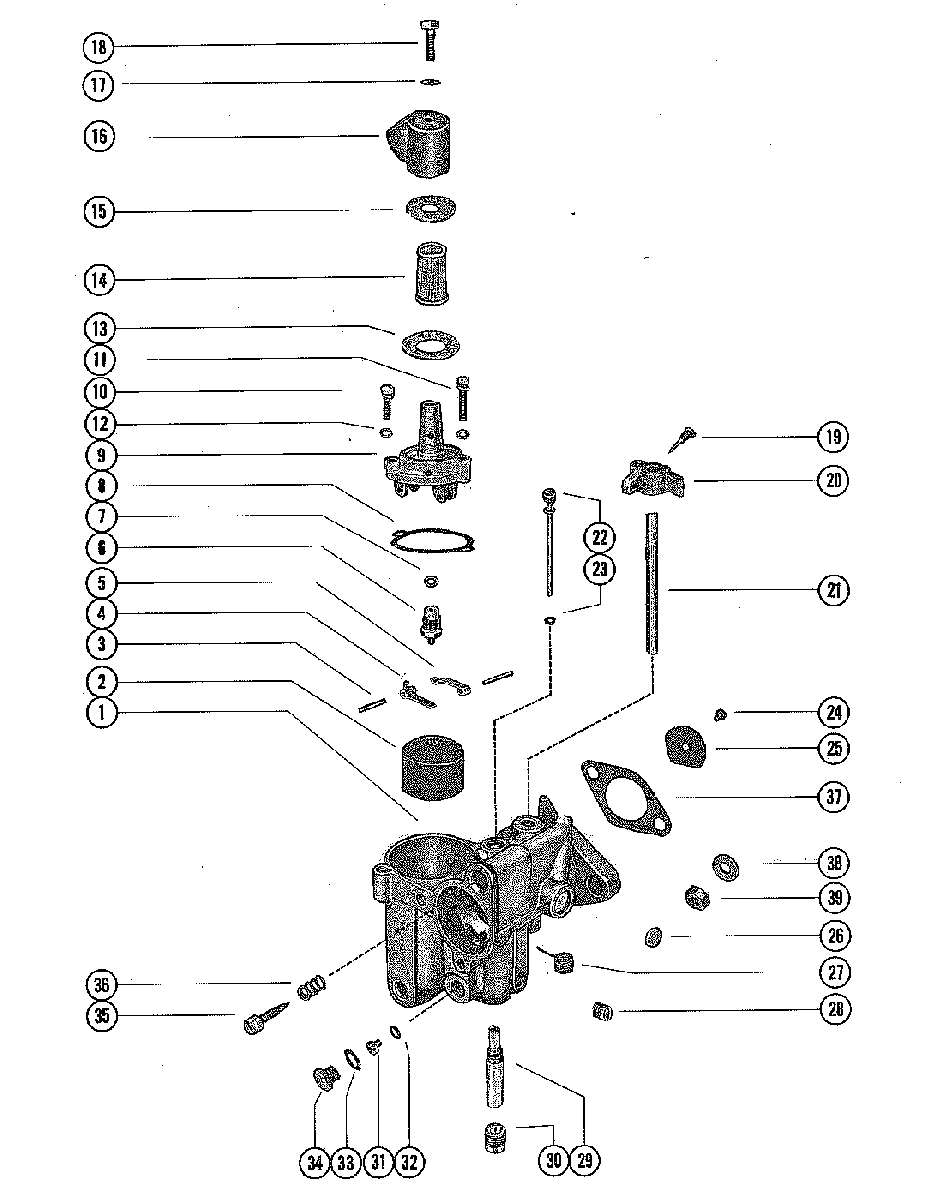

CARBURETOR ASSEMBLY для Mercury - 40 (1 CYL.) 9000306 THRU 90721718
-
№АртикулНазвание
-
11341-8740A1 CARBURETOR ASSEMBLY, COMPLETE (KB-10A)CARBURETOR ASSEMBLY, COMPLETE (KB-10A)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
1390-8M0143356 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
1590-8M0143356 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
161399-1135 COVER, STRAINERCOVER, STRAINER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1810-25822 SCREW, STRAINER COVERSCREW, STRAINER COVER
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
211399-1716 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
2390-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2490-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
251399-3739 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2690-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
2790-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
2810-28845 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
2990-8M0143356 ,MAIN NOZZLE,MAIN NOZZLE
-
3010-23178 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
311399-1896 JET, MAIN FUEL (.041)JET, MAIN FUEL (.041)
-
311399-2407 JET, MAIN FUEL (.039)JET, MAIN FUEL (.039)
-
311399-3026 JET, MAIN FUEL (.036) - STANDARDJET, MAIN FUEL (.036) - STANDARD
-
311399-3251 JET, MAIN FUEL (.034)JET, MAIN FUEL (.034)
-
311399-3252 JET, MAIN FUEL (.032)JET, MAIN FUEL (.032)
-
3290-8M0143356 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
3390-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
3410-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
351399-3740 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
3690-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
--1399-1717 GASKET AND PACKING SETGASKET AND PACKING SET
-
--1395-92621 REPAIR PARTS KITREPAIR PARTS KIT
-
3727-63309 GASKET, CARBURETOR TO REED BLOCKGASKET, CARBURETOR TO REED BLOCK
-
3812-20583 WASHER, CARBURETOR MOUNTING STUDWASHER, CARBURETOR MOUNTING STUD
-
3911-24652 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
