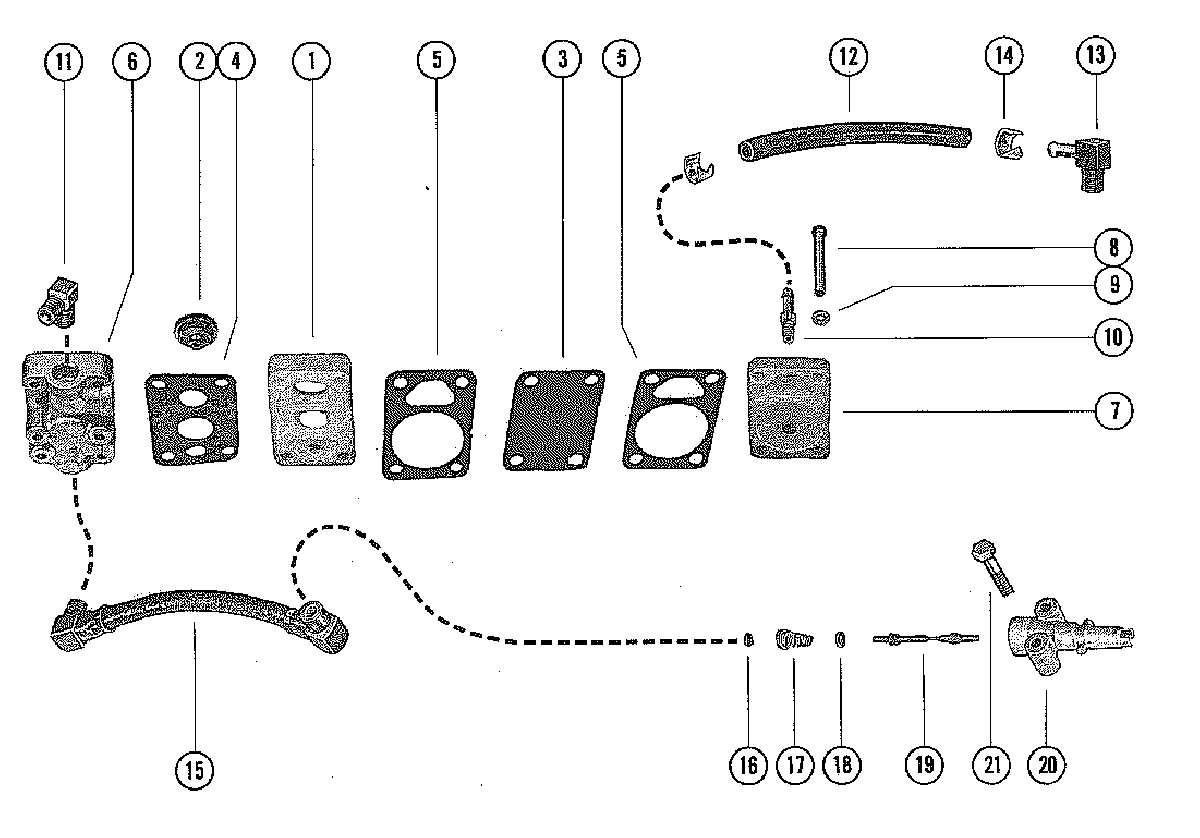

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 40 (1 CYL.) 9000306 THRU 90721718
-
№АртикулНазвание
-
189977A1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A2 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
353245A1 DIAPHRAGM KIT, FUEL PUMPDIAPHRAGM KIT, FUEL PUMP
-
490-8M0143356 GASKET, FUEL PUMP TO BASEGASKET, FUEL PUMP TO BASE
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
653241 BASE, FUEL PUMPBASE, FUEL PUMP
-
761541 COVER, FUEL PUMPCOVER, FUEL PUMP
-
810-32627 SCREW, FUEL PUMP TO BASE (1 1/2")SCREW, FUEL PUMP TO BASE (1 1/2")
-
912-847883 WASHER, FUEL PUMP SCREWSWASHER, FUEL PUMP SCREWS
-
1022-54064 CONNECTOR, HOSE TO FUEL PUMP
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWCONNECTOR, HOSE TO FUEL PUMP
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
1022-61544 ELBOW, HOSE TO FUEL PUMP (45)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWELBOW, HOSE TO FUEL PUMP (45)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
1122-39079 ELBOW, FUEL PUMP TO CARBURETORELBOW, FUEL PUMP TO CARBURETOR
-
1232-9912688 HOSE ASSEMBLY, FUEL PUMP TO CYLINDER BLOCK (4 1/2")HOSE ASSEMBLY, FUEL PUMP TO CYLINDER BLOCK (4 1/2")
-
1322-33373001 ELBOW, HOSE TO CYLINDER BLOCK (90)ELBOW, HOSE TO CYLINDER BLOCK (90)
-
1454-20387 CLAMP, FUEL PUMP HOSE TO ELBOWSCLAMP, FUEL PUMP HOSE TO ELBOWS
-
1532-61642 FUEL LINE, INLET - ADAPTOR TO FUEL PUMPFUEL LINE, INLET - ADAPTOR TO FUEL PUMP
-
1630188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
1724-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
1825-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
1923069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2022833 ADAPTOR, CHECK UNITADAPTOR, CHECK UNIT
-
2110-37923 SCREW, CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/4")SCREW, CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/4")
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #1)
- CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #2)
- CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL AND IGNITION COIL
- • FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- SHIFT CONTROL LINKAGE
- STATOR AND IGNITION COMPONENTS
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
