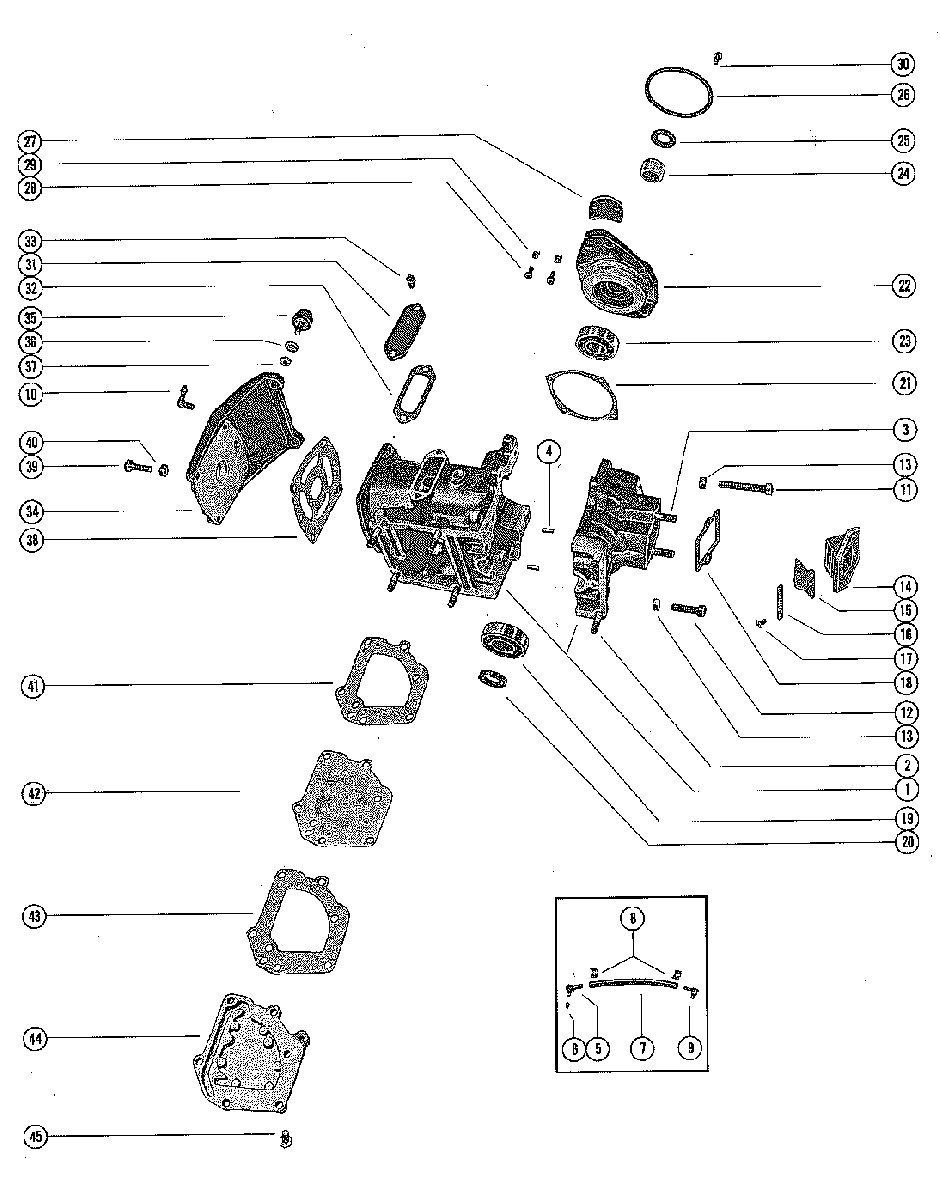

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 40 (1 CYL.) 9000306 THRU 90721718
-
№АртикулНазвание
-
1843-8694A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
216-66021 STUD, SYLINDER BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSINGSTUD, SYLINDER BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING
-
316-66020 STUD, CARBURETOR MOUNTINGSTUD, CARBURETOR MOUNTING
-
417-8M0084726 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCKPIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
-
521-64871A2 ELBOW ASSEMBLY, BLEED DRAIN
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWELBOW ASSEMBLY, BLEED DRAIN
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
621-42657A3 CHECK VALVE ASSEMBLY
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWCHECK VALVE ASSEMBLY
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
521-64871A2 FITTING ASSEMBLY, BLEED DRAIN
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897FITTING ASSEMBLY, BLEED DRAIN
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
732-9938779 HOSE, BLEED DRAIN (7 1/2")HOSE, BLEED DRAIN (7 1/2")
-
854-56223 CLAMP, BLEED HOSE ATTACHINGCLAMP, BLEED HOSE ATTACHING
-
922-78916 ELBOW, BLEED DRAINELBOW, BLEED DRAIN
-
1022-996642 ELBOW, 90 - 1/8' MALE (TELL TALE)ELBOW, 90 - 1/8' MALE (TELL TALE)
-
1110-24624 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
-
1210-64278 SCREW, CRANKCASE TO CYLINDER BLOCK (1")SCREW, CRANKCASE TO CYLINDER BLOCK (1")
-
1311-20184 NUT, CRANKCASE FASTENING SCREWNUT, CRANKCASE FASTENING SCREW
-
1470726 REED BLOCKREED BLOCK
-
1534-35836 REED, INLET VALVEREED, INLET VALVE
-
1634-22215 RETAINER, REEDRETAINER, REED
-
1710-28430 SCREW, REED AND RETAINER TO BLOCK (1/4")SCREW, REED AND RETAINER TO BLOCK (1/4")
-
1827-357391 GASKET, REED BLOCK TO CRANKCASEGASKET, REED BLOCK TO CRANKCASE
-
1930-72961 BEARING, BALL - CRANKCASE (LOWER)BEARING, BALL - CRANKCASE (LOWER)
-
2026-56397 OIL SEAL, CRANKCASE (LOWER)OIL SEAL, CRANKCASE (LOWER)
-
2115-31412A1 SHIM ASSEMBLY, UPPER HOUSING TO BLOCK (.002-3-5-10)SHIM ASSEMBLY, UPPER HOUSING TO BLOCK (.002-3-5-10)
-
221132-6352A1 BEARING HOUSING ASSEMBLY, UPPERBEARING HOUSING ASSEMBLY, UPPER
-
2330-72961 BEARING, BALL - UPPER BEARING HOUSINGBEARING, BALL - UPPER BEARING HOUSING
-
2431-31410 BEARING, ROLLER - UPPER BEARING HOUSINGBEARING, ROLLER - UPPER BEARING HOUSING
-
2526-31411 OIL SEAL, UPPER BEARING HOUSINGOIL SEAL, UPPER BEARING HOUSING
-
2625-20863 "O" RING, UPPER BEARING HOUSING"O" RING, UPPER BEARING HOUSING
-
2754-34598 CLAMP, HOLD DOWN RINGCLAMP, HOLD DOWN RING
-
2810-36205 SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING (9/16")SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING (9/16")
-
2924-34731 SPRING, HOLD DOWN RING CLAMPSPRING, HOLD DOWN RING CLAMP
-
3010-39002 SCREW, UPPER BEARING HOUSING (#12-24 X 1/2)SCREW, UPPER BEARING HOUSING (#12-24 X 1/2)
-
3135658 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
3227-35657 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
3310-20720 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
-
341016-7070A1 COVER, CYLINDER BLOCK
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWCOVER, CYLINDER BLOCK
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
3531014 MOUNT, RUBBER - COVER TO TOP COWL
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWMOUNT, RUBBER - COVER TO TOP COWL
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
3613-26992 LOCKWASHER, RUBBER MOUNT
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWLOCKWASHER, RUBBER MOUNT
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
3711-20088 NUT, RUBBER MOUNT TO COVER
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWNUT, RUBBER MOUNT TO COVER
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
341016-7070A1 COVER ASSEMBLY, CYLINDER BLOCK
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897COVER ASSEMBLY, CYLINDER BLOCK
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
3566019 MOUNT, RUBBER - COVER TO TOP COWL
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897MOUNT, RUBBER - COVER TO TOP COWL
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
3613-20202 LOCKWASHER, RUBBER MOUNT
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897LOCKWASHER, RUBBER MOUNT
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
3711-22053 NUT, RUBBER MOUNT TO COVER
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897NUT, RUBBER MOUNT TO COVER
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
3827-416151 GASKET, COVER TO CYLINDER BLOCKGASKET, COVER TO CYLINDER BLOCK
-
3910-21091 SCREW, SYLINDER BLOCK COVER TO CYLINDER BLOCK (1 1/4")SCREW, SYLINDER BLOCK COVER TO CYLINDER BLOCK (1 1/4")
-
4011-20184 NUT, CYLINDER BLOCK COVER MOUNTING SCREWNUT, CYLINDER BLOCK COVER MOUNTING SCREW
-
4127-416141 GASKET, SYLINDER BLOCK TO BAFFLE PLATEGASKET, SYLINDER BLOCK TO BAFFLE PLATE
-
4246234 PLATE, BAFFLET - EXHAUST MANIFOLDPLATE, BAFFLET - EXHAUST MANIFOLD
-
4327-416141 GASKET, BUFFLE PLATE TO EXHAUST MANIFOLD COVERGASKET, BUFFLE PLATE TO EXHAUST MANIFOLD COVER
-
4446171 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
4510-28636 SCREW, PLATE/MANIFOLD COVER TO BLOCK (3/4")
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSCREW, PLATE/MANIFOLD COVER TO BLOCK (3/4")
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
4510-49668 SCREW, PLATE/MANIFOLD COVER TO BLOCK (3/4")
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSCREW, PLATE/MANIFOLD COVER TO BLOCK (3/4")
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW
