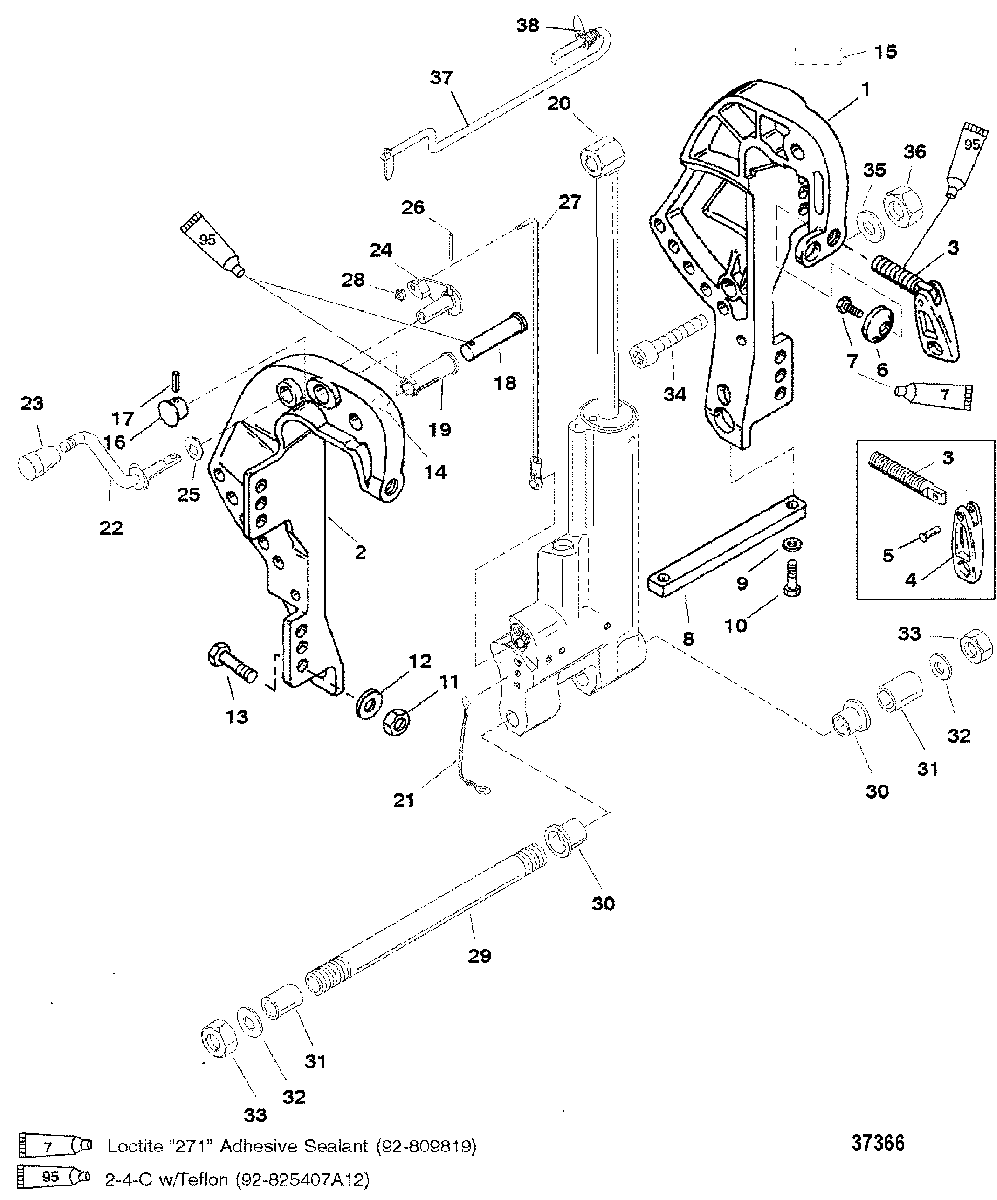

CLAMP BRACKET(GAS ASSIST TRIM) для Mercury - 40 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
13411-821773T1 CLAMP BRACKET
(BLACK) PORTCLAMP BRACKET
(BLACK) PORT -
13411-821773A2 CLAMP BRACKET
(GRAY) PORTCLAMP BRACKET
(GRAY) PORT -
23412-821774T8 CLAMP BRACKET
(BLACK) STARBOARDCLAMP BRACKET
(BLACK) STARBOARD -
23412-821774T8 CLAMP BRACKET
(GRAY) STARBOARDCLAMP BRACKET
(GRAY) STARBOARD -
310-818883A1 THUMB SCREW ASSEMBLY
MANUALTHUMB SCREW ASSEMBLY
MANUAL -
4NSS NOT SOLD SEPARATE, HANDLE
MANUALNOT SOLD SEPARATE, HANDLE
MANUAL -
5NSS NOT SOLD SEPARATE, RIVET
MANUALNOT SOLD SEPARATE, RIVET
MANUAL -
612-818884 WASHER
MANUALWASHER
MANUAL -
710-768042 SHOULDER SCREW, Hex
MANUALSHOULDER SCREW, Hex
MANUAL -
897-8252711 ANODEANODE
-
912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1010-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1111-91962 NUT, (.500-20)NUT, (.500-20)
-
1212-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1310-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
14NSS NOT SOLD SEPARATE, DECAL, Tilt LockNOT SOLD SEPARATE, DECAL, Tilt Lock
-
15NSS NOT SOLD SEPARATE, DECAL, WarningNOT SOLD SEPARATE, DECAL, Warning
-
16822401 CAPCAP
-
1717-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
1823-823589 BUSHINGBUSHING
-
1917-8224001 PINPIN
-
20828533A1 TRIM, HYDRAULIC ASSIST
GAS ASSIST TRIMTRIM, HYDRAULIC ASSIST
GAS ASSIST TRIM -
2188238A11 CABLE ASSEMBLY
GAS ASSIST TRIMCABLE ASSEMBLY
GAS ASSIST TRIM -
22828924 LEVER, Tilt
GAS ASSIST TRIMLEVER, Tilt
GAS ASSIST TRIM -
238M0007469 TILT KNOB
GAS ASSIST TRIMTILT KNOB
GAS ASSIST TRIM -
24828930 ARM, Lever
GAS ASSIST TRIMARM, Lever
GAS ASSIST TRIM -
2513-31030 WAVE WASHER
GAS ASSIST TRIMWAVE WASHER
GAS ASSIST TRIM -
2617-25319 PIN, (.125 x 0.75 Inches)
GAS ASSIST TRIMPIN, (.125 x 0.75 Inches)
GAS ASSIST TRIM -
278289961 LINK
GAS ASSIST TRIMLINK
GAS ASSIST TRIM -
2811-46438 NUT, (#10-32)
GAS ASSIST TRIMNUT, (#10-32)
GAS ASSIST TRIM -
2917-822481001 PIN, Anchor (14 mm)
GAS ASSIST TRIM & POWER TRIM MOUNTINGPIN, Anchor (14 mm)
GAS ASSIST TRIM & POWER TRIM MOUNTING -
3023-822482 BUSHING
GAS ASSIST TRIM & POWER TRIM MOUNTINGBUSHING
GAS ASSIST TRIM & POWER TRIM MOUNTING -
3123-822484 BUSHING
GAS ASSIST TRIM & POWER TRIM MOUNTINGBUSHING
GAS ASSIST TRIM & POWER TRIM MOUNTING -
3212-825190 WASHER
GAS ASSIST TRIM & POWER TRIM MOUNTINGWASHER
GAS ASSIST TRIM & POWER TRIM MOUNTING -
3311-826712 NUT, (M14)
GAS ASSIST TRIM & POWER TRIM MOUNTINGNUT, (M14)
GAS ASSIST TRIM & POWER TRIM MOUNTING -
3410-4009040 SCREW, (M10 x 40) Stainless Steel
GAS ASSIST TRIM & POWER TRIM MOUNTINGSCREW, (M10 x 40) Stainless Steel
GAS ASSIST TRIM & POWER TRIM MOUNTING -
3512-4002319 WASHER
GAS ASSIST TRIM & POWER TRIM MOUNTINGWASHER
GAS ASSIST TRIM & POWER TRIM MOUNTING -
3611-4013710 NUT, (M10)
GAS ASSIST TRIM & POWER TRIM MOUNTINGNUT, (M10)
GAS ASSIST TRIM & POWER TRIM MOUNTING -
3717-853923A1 PIN
NON POWER TRIMPIN
NON POWER TRIM -
3824-821461 SPRING
NON POWER TRIMSPRING
NON POWER TRIM
