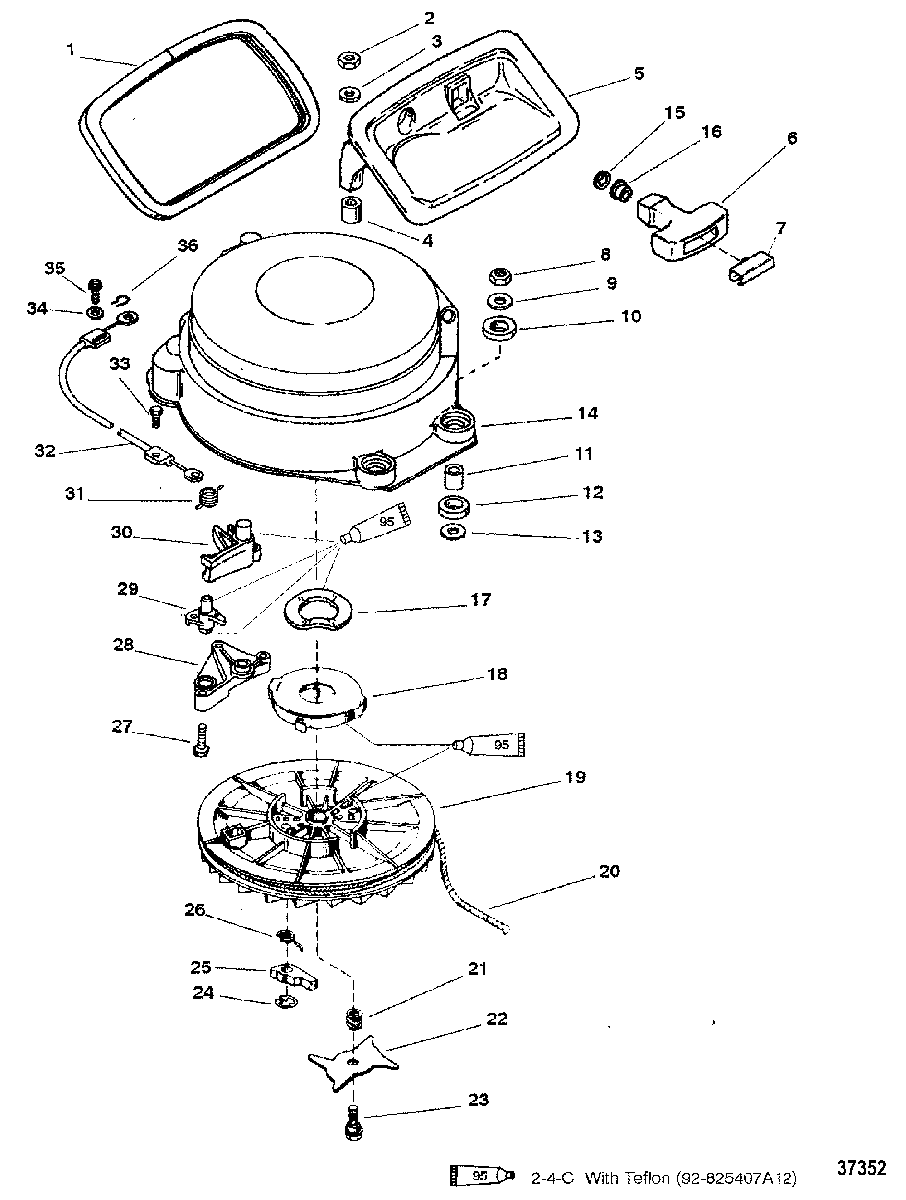

MANUAL START COMPONENTS для Mercury - 40 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
18M0043416 SEALSEAL
-
211-401196 NUT, (M6)
USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"NUT, (M6)
USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD" -
312-69056 WASHER, (.255 x .620 x .030) Stainless Steel
USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"WASHER, (.255 x .620 x .030) Stainless Steel
USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD" -
423-822392 SPACERSPACER
-
5821788T02 RESTREST
-
685174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
7NSS NOT SOLD SEPARATE, RETAINERNOT SOLD SEPARATE, RETAINER
-
811-401366 NUT, (M6)NUT, (M6)
-
9826414T WASHERWASHER
-
1025-8157951 GROMMETGROMMET
-
1123-816086 BUSHINGBUSHING
-
1225-8157951 GROMMETGROMMET
-
13826414T WASHERWASHER
-
-816728T14 STARTER ASSEMBLY, Recoil
SN# USA 0G239163, BEL 9864479 & BelowSTARTER ASSEMBLY, Recoil
SN# USA 0G239163, BEL 9864479 & Below -
-816728T14 STARTER ASSEMBLY, Recoil
SN# USA 0G239164, BEL 9864480 & UpSTARTER ASSEMBLY, Recoil
SN# USA 0G239164, BEL 9864480 & Up -
14816728T05 HOUSINGHOUSING
-
1553-818853 RING, RetainingRING, Retaining
-
1642690 BUSHINGBUSHING
-
1713-826229 LOCKWASHERLOCKWASHER
-
1824-86857T01 SPRINGSPRING
-
1950-825269T01 SHEAVE, StarterSHEAVE, Starter
-
2050-12066Q10 ROPEROPE
-
2124-868523 SPRINGSPRING
-
2286853T01 CAMCAM
-
2310-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2453-86849T01 RING, RetainingRING, Retaining
-
25868501 CAMCAM
-
2624-86851T02 SPRINGSPRING
-
2710-8182491 SCREW, (#10-16 x 1.00)SCREW, (#10-16 x 1.00)
-
28816711 RETAINERRETAINER
-
29816712T01 CAMCAM
-
308166902 LEVER
SN# USA 0G239163, BEL 9864479 & BelowLEVER
SN# USA 0G239163, BEL 9864479 & Below -
308166903 LEVER
SN# USA 0G239164, BEL 9864480 & UpLEVER
SN# USA 0G239164, BEL 9864480 & Up -
3124-826791 SPRINGSPRING
-
328567542 CABLE, InterlockCABLE, Interlock
-
3310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3412-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
3510-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3618-26811 COTTER PINCOTTER PIN
