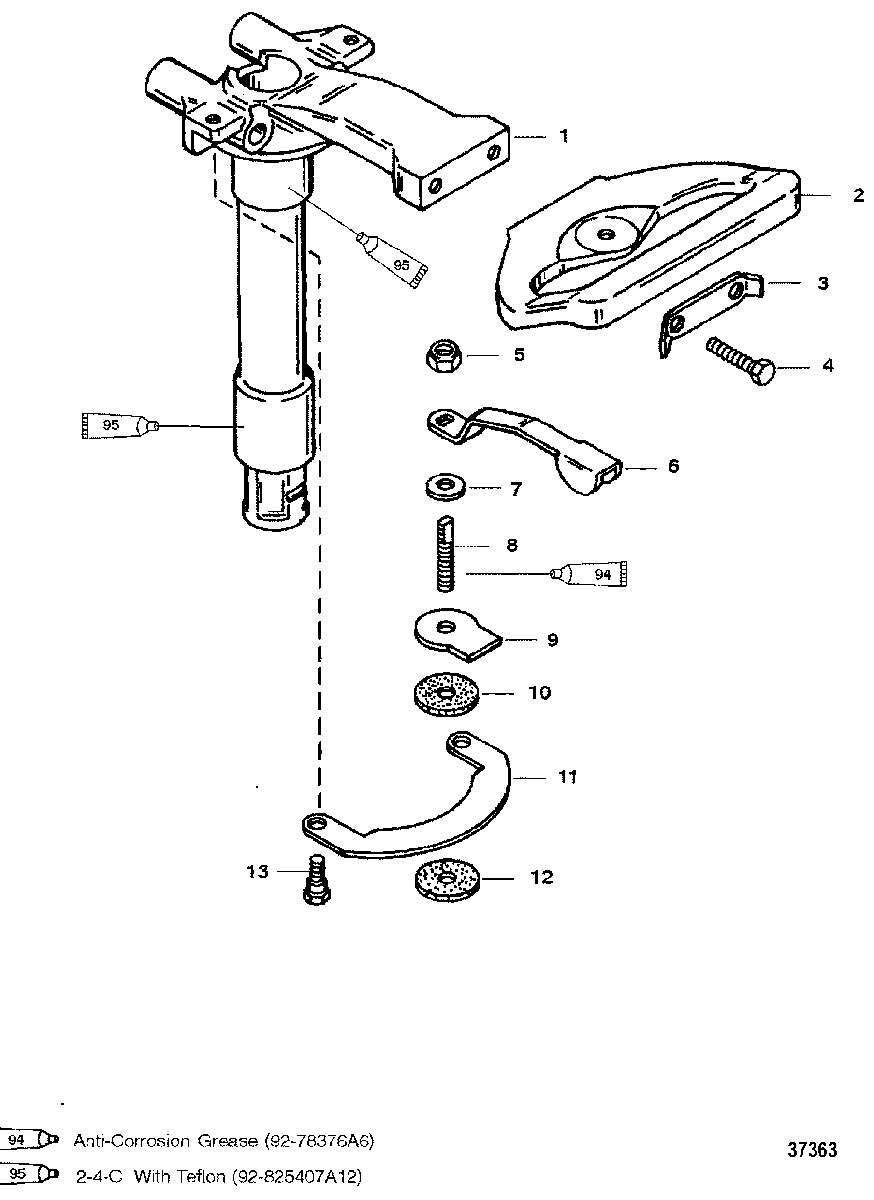

SWIVEL TUBE для Mercury - 40 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
1821769T1 HEAD, Swivel Tube
(BLACK)HEAD, Swivel Tube
(BLACK) -
1821769T1 HEAD, Swivel Tube
(GRAY)HEAD, Swivel Tube
(GRAY) -
2822465F1 HANDLE
(BLACK)HANDLE
(BLACK) -
2822465F1 HANDLE, Carrying
(GRAY)HANDLE, Carrying
(GRAY) -
314-43589 TAB WASHERTAB WASHER
-
410-824848F45 SCREW, (M10 x 45) (HEX HEAD CAP)SCREW, (M10 x 45) (HEX HEAD CAP)
-
511-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
6823792 LEVERLEVER
-
712-29330 WASHERWASHER
-
8821961 ROD (THREADED)ROD (THREADED)
-
9821957 BRAKE PLATEBRAKE PLATE
-
108165621 DISCDISC
-
118M0007471 PLATEPLATE
-
128165621 DISCDISC
-
1310-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
Все узлы модели:
- ACCESSORIES
- BOTTOM COWL
- BOTTOM COWL
- CARBURETOR
- CLAMP BRACKET
- CLAMP BRACKET(GAS ASSIST TRIM)
- CRANKSHAFT/PISTON/FLYWHEEL
- CYLINDER BLOCK
- CYLINDER BLOCK(CONTINUED)
- DRIVESHAFT HOUSING
- DRIVESHAFT HOUSING
- ELECTRICAL COMPONENTS(1)
- ELECTRICAL COMPONENTS(2)
- ELECTRICAL COMPONENTS(3)
- FUEL PUMP(ELECTRIC)
- FUEL PUMP(MANUAL)
- GEAR HOUSING(DRIVESHAFT)(2.00:1 GEAR RATIO)
- GEAR HOUSING(PROPELLER SHAFT)(2.00:1 GEAR RATIO)
- INDUCTION MANIFOLD
- MANUAL START COMPONENTS
- MISCELLANEOUS INFORMATION
- OIL INJECTION COMPONENTS
- POWER TRIM
- POWER TRIM MOUNTING
- STARTER MOTOR
- STATOR/TRIGGER(ELECTRIC MODELS)
- SWIVEL BRACKET
- • SWIVEL TUBE
- THROTTLE LINKAGE(S/N -USA-0G5899999/BEL-9973099 & BELOW)
- THROTTLE LINKAGE(S/N-0G590000/BEL-9973100 & UP)
- TILLER HANDLE
- TOOLS, SPECIAL
- TOP COWL
- X-LONG COMPONENTS
