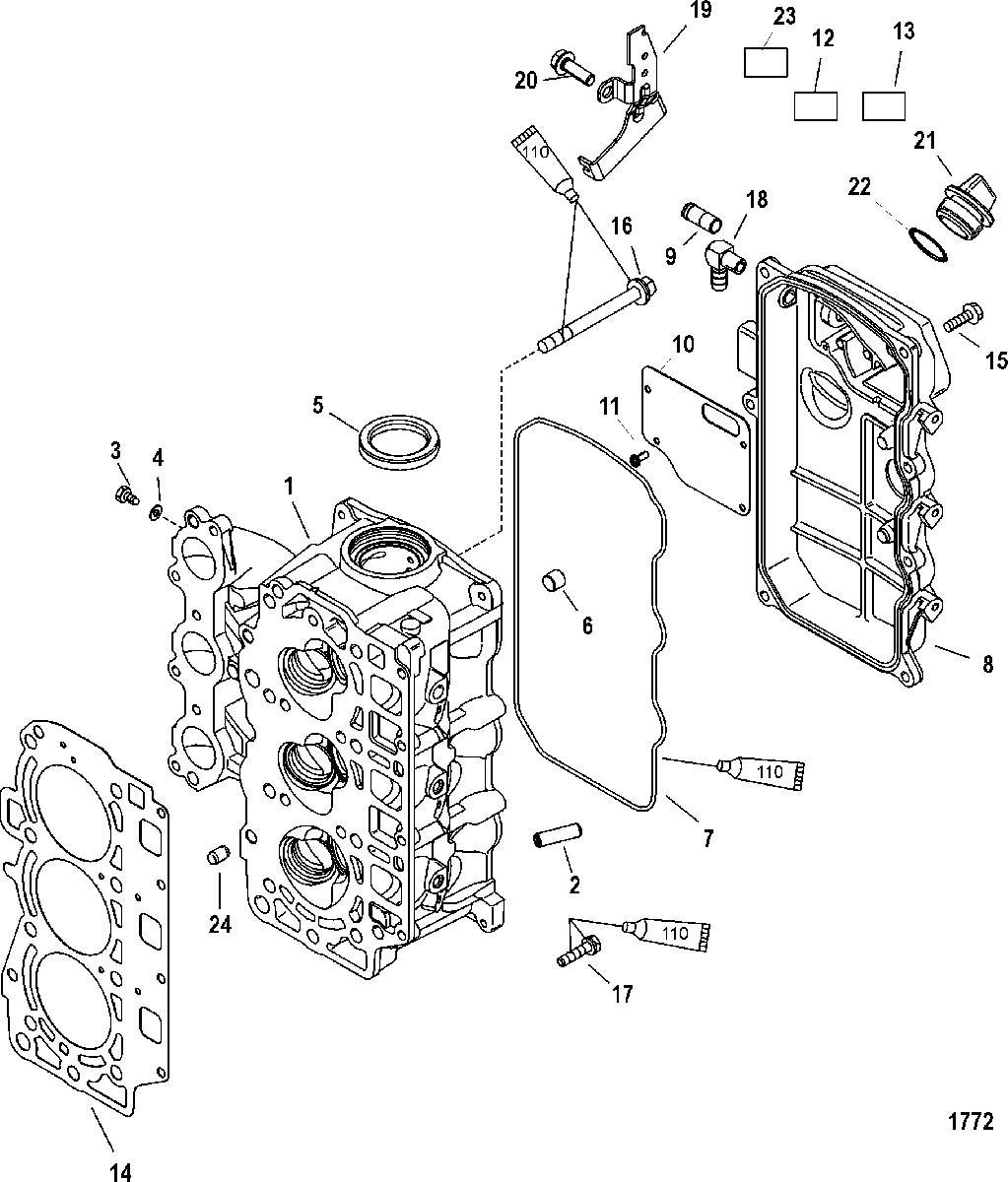

Cylinder Head для Mercury - 40 CARB (3 CYL.)(4-STROKE) 1C000001 THRU 1C018825

№

Артикул

Название
-

893504T02 CYLINDER HEAD ASSEMBLY

CYLINDER HEAD ASSEMBLY

82 900 ₽
1

893504T CYLINDER HEAD

CYLINDER HEAD

37 740 ₽
2

858266 GUIDE

GUIDE

370 ₽
3

10-4000325 SCREW, (M6 x 8)

SCREW, (M6 x 8)

290 ₽
4

12-859768 WASHER

WASHER

270 ₽
5

26-893549 SEAL, Oil

SEAL, Oil

2 720 ₽
6

22-875209 PIPE PLUG

PIPE PLUG

490 ₽
7

25-893898 O-RING

O-RING

900 ₽
8

893693A04 COVER

COVER

9 630 ₽
9

22-825054 BREATHER PIPE

BREATHER PIPE

1 140 ₽
10

855236 PLATE, Baffle

PLATE, Baffle

210 ₽
11

10-4005685 SCREW, (M4 x 10)

SCREW, (M4 x 10)

170 ₽
12

NSS NOT SOLD SEPARATE, Decal- Servicing Referral

NOT SOLD SEPARATE, Decal- Servicing Referral

0 ₽
13

NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance

NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance

0 ₽
14

27-8M0118180 GASKET

GASKET

3 250 ₽
15

10-8M4503518 SCREW, (M6 x 20) Stainless Steel

SCREW, (M6 x 20) Stainless Steel

380 ₽
16

10-82503395 SCREW, (M9 x 95)

SCREW, (M9 x 95)

1 180 ₽
17

10-893745025 SCREW, (M6 x 25)

SCREW, (M6 x 25)

230 ₽
18

22-629101 FITTING, Elbow - 90 Degree (.125-27)

FITTING, Elbow - 90 Degree (.125-27)

870 ₽
19

830294T1 BRACKET (Handle)

BRACKET (Handle)

9 860 ₽
20

10-40011126 SCREW, (M6 x 13) Stainless Steel (Handle)

SCREW, (M6 x 13) Stainless Steel (Handle)

220 ₽
21

859578A1 PLUG ASSEMBLY, Oil

PLUG ASSEMBLY, Oil

440 ₽
22

25-90196 O-RING, (.921 x .139)

O-RING, (.921 x .139)

350 ₽
23

NSS NOT SOLD SEPARATE, Decal- Horse Power Identification

NOT SOLD SEPARATE, Decal- Horse Power Identification

0 ₽
24

17-825010 PIN, Dowel

PIN, Dowel

270 ₽
-

27-825231A02 GASKET SET, Engine

GASKET SET, Engine

31 700 ₽
-

61-803017T01 POWERHEAD ASSEMBLY
(Short)

POWERHEAD ASSEMBLY
(Short)

150 480 ₽
-

61-803016T06 POWERHEAD ASSEMBLY
(Long)

POWERHEAD ASSEMBLY
(Long)

210 770 ₽
