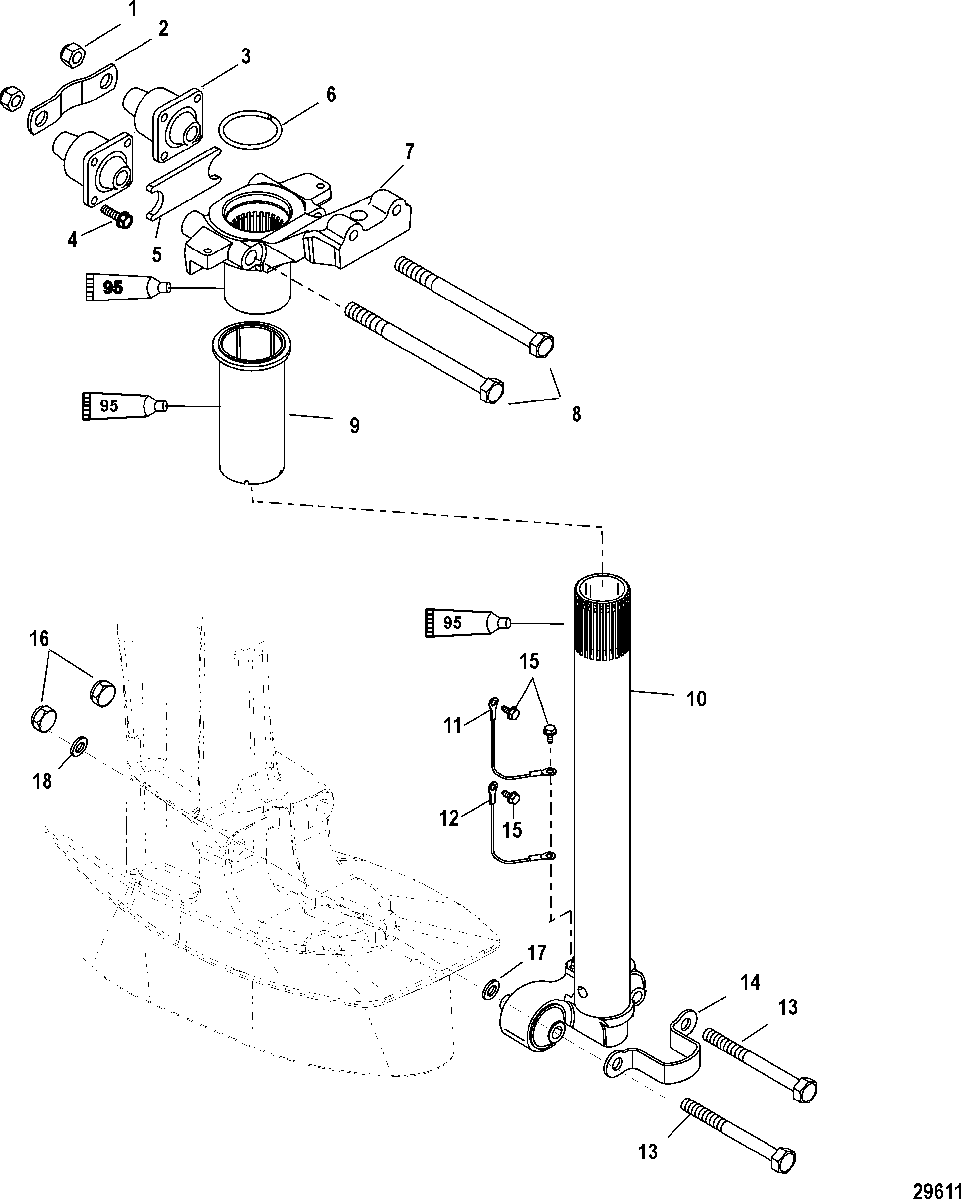

Steering Arm для Mercury - 40 CARB (3 CYL.)(4-STROKE) 1C000001 THRU 1C018825
-
№АртикулНазвание
-
111-896963 NUT, (M12)NUT, (M12)
-
2893773002 STRAP, Upper MountSTRAP, Upper Mount
-
3893655T MOUNT, UpperMOUNT, Upper
-
410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
5826658 BUMPERBUMPER
-
653-89531 RING, RetainingRING, Retaining
-
78M0118183 ARM, SteeringARM, Steering
-
810-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
923-8279973 SPACER
(Short)SPACER
(Short) -
923-8279971 SPACER
(Long)SPACER
(Long) -
10850175T03 SWIVEL TUBE
(Short)SWIVEL TUBE
(Short) -
10893590T01 SWIVEL TUBE
(Long)SWIVEL TUBE
(Long) -
1184-88238T01 CABLE ASSEMBLY, Steering Arm to Driveshaft HousingCABLE ASSEMBLY, Steering Arm to Driveshaft Housing
-
1288238A13 CABLE ASSEMBLY, Ground, Steering Arm to Swivel BracketCABLE ASSEMBLY, Ground, Steering Arm to Swivel Bracket
-
1310-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
SN# 1C046581 & BelowSCREW, (M10 x 105) Hex Flange - Stainless Steel
SN# 1C046581 & Below -
1310-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
SN# 0P502069 & BelowSCREW, (M10 x 105) Hex Flange - Stainless Steel
SN# 0P502069 & Below -
1310-8M0103829 SCREW, (M10 x 120)
SN# 1C046582 & UpSCREW, (M10 x 120)
SN# 1C046582 & Up -
1310-8M0103829 SCREW, (M10 x 120)
SN# 0P502070 & UpSCREW, (M10 x 120)
SN# 0P502070 & Up -
14893703 STRAP, Lower MountSTRAP, Lower Mount
-
1510-878607 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1611-40140 NUT, (M10)NUT, (M10)
-
1712-45176 WASHER, (.453 x .812 x .105) Stainless Steel
SN# 1C046581 & BelowWASHER, (.453 x .812 x .105) Stainless Steel
SN# 1C046581 & Below -
1712-45176 WASHER, (.453 x .812 x .105) Stainless Steel
SN# 0P502069 & BelowWASHER, (.453 x .812 x .105) Stainless Steel
SN# 0P502069 & Below -
1812-4002319 WASHER
SN# 1C046582 & UpWASHER
SN# 1C046582 & Up -
1812-4002319 WASHER
SN# 0P502070 & UpWASHER
SN# 0P502070 & Up
