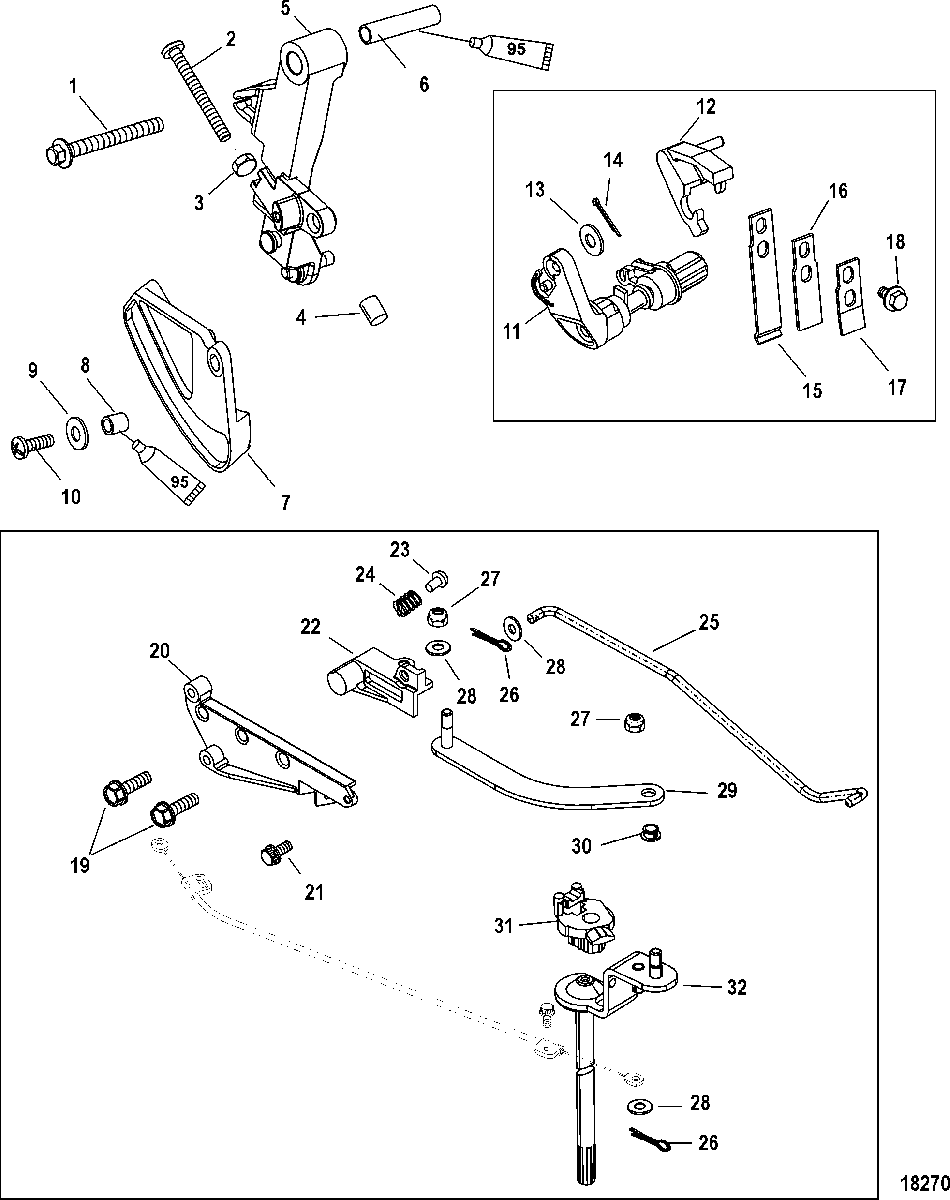

Linkage для Mercury - 40 CARB (3 CYL.)(4-STROKE) 1C000001 THRU 1C018825
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
623-825078 BUSHINGBUSHING
-
78535853 CAM, ThrottleCAM, Throttle
-
823-309772 SPACERSPACER
-
912-4002314 WASHERWASHER
-
1010-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
11826588A4 SHIFT SHAFT ASSEMBLY, Horizontal (Short)SHIFT SHAFT ASSEMBLY, Horizontal (Short)
-
128277071 RETAINER (Short)RETAINER (Short)
-
1312-29245 WASHER, (.281 x .500 x .060) Stainless Steel (Short)WASHER, (.281 x .500 x .060) Stainless Steel (Short)
-
1418-210711 COTTER PIN (Short)COTTER PIN (Short)
-
1524-826077 SPRING, Detent (Short)SPRING, Detent (Short)
-
1624-824993 SPRING, Backing (Short)SPRING, Backing (Short)
-
17824994 SPRING, Plate (Short)SPRING, Plate (Short)
-
1810-40011107 SCREW, (M5 x 16) Stainless Steel (Short)SCREW, (M5 x 16) Stainless Steel (Short)
-
1910-8248326 SCREW, (M6 x 25 MM) (Long)SCREW, (M6 x 25 MM) (Long)
-
20858245 SHIFT GUIDE (Long)SHIFT GUIDE (Long)
-
2110-82239312 SCREW, (M5 x 12) (Long)SCREW, (M5 x 12) (Long)
-
22858246 SHIFT SLIDE (Long)SHIFT SLIDE (Long)
-
238M0091388 DETENT/SPRING KIT (Long)DETENT/SPRING KIT (Long)
-
24NSS NOT SOLD SEPARATE, Spring (Long)NOT SOLD SEPARATE, Spring (Long)
-
25858247 SHIFT ROD (Long)SHIFT ROD (Long)
-
2618-210711 COTTER PIN (Long)COTTER PIN (Long)
-
2711-401386 NUT, (M6) Stainless Steel (Long)NUT, (M6) Stainless Steel (Long)
-
2812-29245 WASHER, (.281 x .500 x .060) Stainless Steel (Long)WASHER, (.281 x .500 x .060) Stainless Steel (Long)
-
29858248 SHIFT LINK (Long)SHIFT LINK (Long)
-
3023-48475 BUSHING (Long)BUSHING (Long)
-
3123-850165 BUSHING (Long)BUSHING (Long)
-
32850166T2 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
