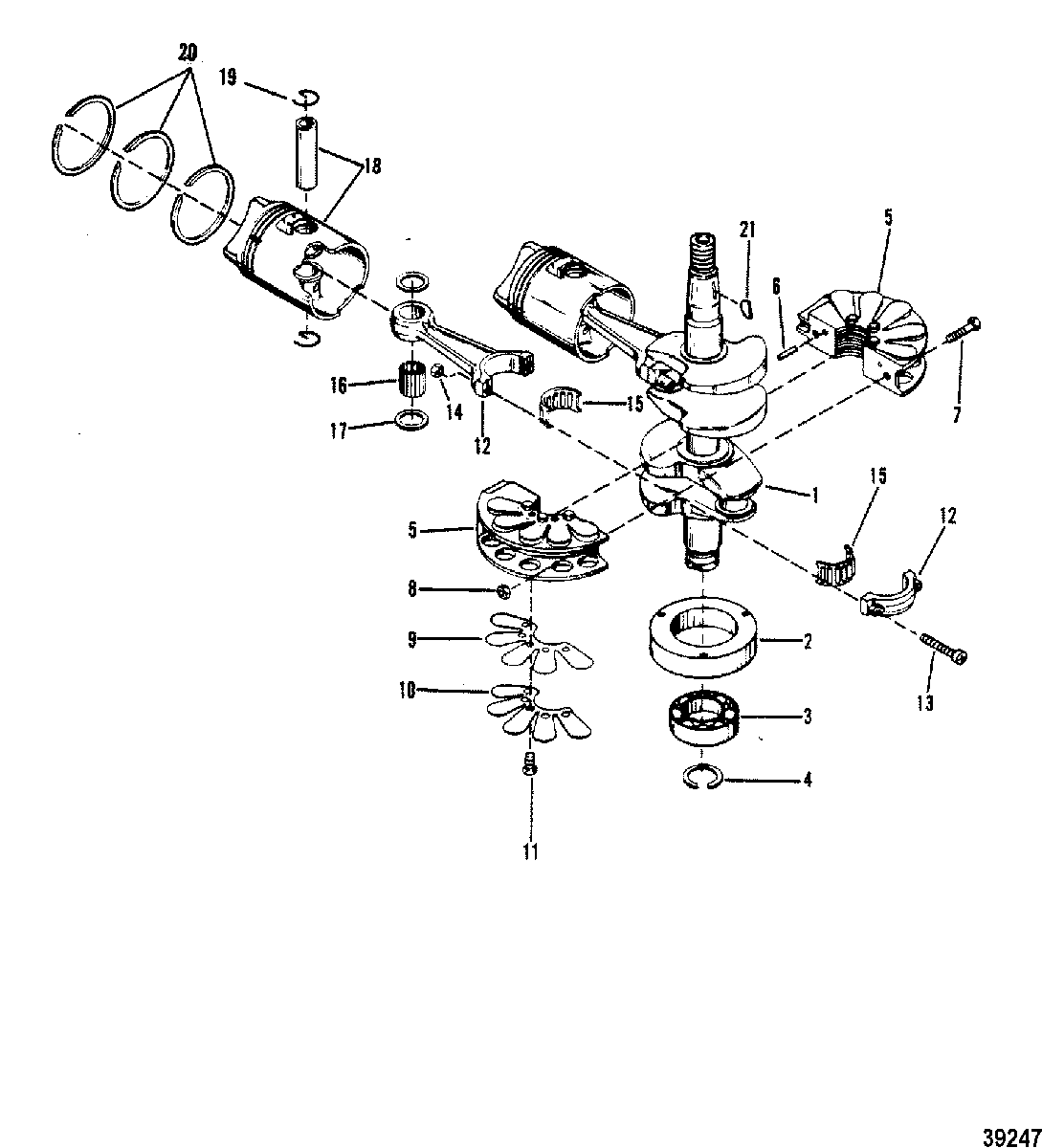

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 402, 40 (2 CYL.) 7144763 & Up
-
№АртикулНазвание
-
1454-9073A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
278308A1 RETAINER ASSEMBLY, BALL BEARINGRETAINER ASSEMBLY, BALL BEARING
-
330-63742T BEARING, Ball, RETAINER (CRANKSHAFT)BEARING, Ball, RETAINER (CRANKSHAFT)
-
453-63634 RING, Retaining, BALL BEARINGRING, Retaining, BALL BEARING
-
5540-7238A2 BEARING ASSEMBLY, Main, VALVE TYPEBEARING ASSEMBLY, Main, VALVE TYPE
-
617-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
710-45775 SCREW, (#12-28 x .560) , MAIN BEARING CLAMPINGSCREW, (#12-28 x .560) , MAIN BEARING CLAMPING
-
811-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
934-56007A1 REED SET, MAIN BEARING (MATCHED)REED SET, MAIN BEARING (MATCHED)
-
1034-56008 STOP, Reed, MAIN BEARING REED VALVESSTOP, Reed, MAIN BEARING REED VALVES
-
1110-20055 SCREW, (#10-32 x .375), REED STOP MOUNTINGSCREW, (#10-32 x .375), REED STOP MOUNTING
-
12624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1310-54803 SCREW, (.250-28 x 1.500), CONNECTING ROD
USE WITH NUTSCREW, (.250-28 x 1.500), CONNECTING ROD
USE WITH NUT -
1310-91012 SCREW, (.250-28 Special), CONNECTING ROD
USE WITHOUT NUTSCREW, (.250-28 Special), CONNECTING ROD
USE WITHOUT NUT -
1411-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
1531-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
1629-47270 BEARING, PISTON PINBEARING, PISTON PIN
-
1712-8M0032839 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
18774-9137A12 PISTON ASSEMBLY
STANDARDPISTON ASSEMBLY
STANDARD -
18774-9137A13 PISTON ASSEMBLY
(.015 OVERSIZE)PISTON ASSEMBLY
(.015 OVERSIZE) -
18774-9137A14 PISTON ASSEMBLY
(.030 OVERSIZE)PISTON ASSEMBLY
(.030 OVERSIZE) -
1953-857196 RING, Lock, PISTON PINRING, Lock, PISTON PIN
-
2039-78816A12 RING
STANDARDRING
STANDARD -
2039-78811A12 RING SET, Piston - .015 OversizeRING SET, Piston - .015 Oversize
-
2039-88392A12 RING SET, Piston - .030 OversizeRING SET, Piston - .030 Oversize
-
2128-45554 KEY, CRANKSHAFTKEY, CRANKSHAFT
