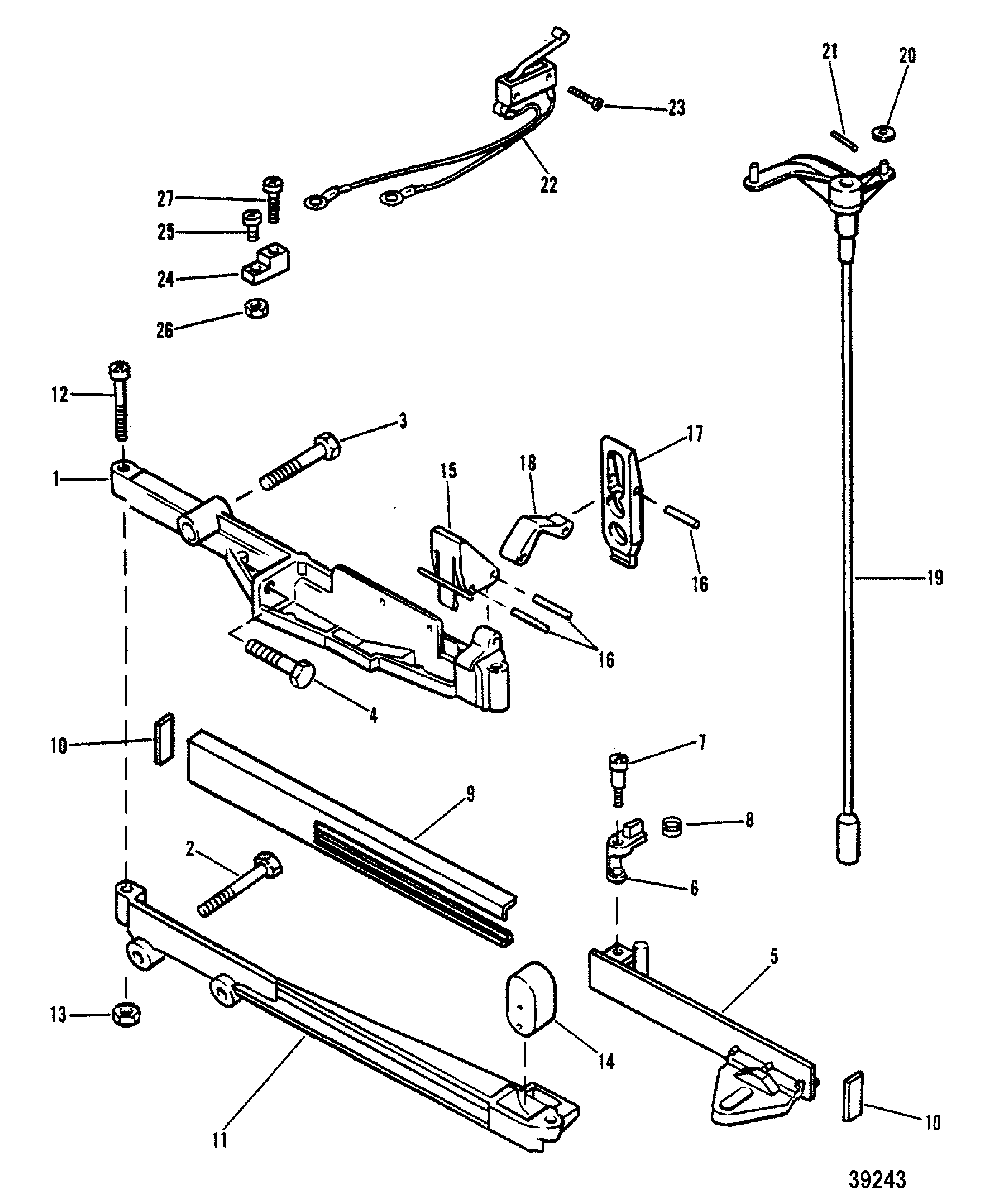

SHIFT CONTROL LINKAGE для Mercury - 402, 40 (2 CYL.) 7144763 & Up
-
№АртикулНазвание
-
187876A2 BRACKET, SHIFT ANCHOR - UPPERBRACKET, SHIFT ANCHOR - UPPER
-
210-73657 SCREW, (.312-18 x 1.50)SCREW, (.312-18 x 1.50)
-
310-67450 SCREW, (.312-18 x 2.250)SCREW, (.312-18 x 2.250)
-
410-35385 SCREW, (.312-18 x 1-3/4)SCREW, (.312-18 x 1-3/4)
-
587874 SLIDE, SHIFT ACTUATINGSLIDE, SHIFT ACTUATING
-
656193 LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)
-
710-39620 SCREW, LATCH TO SHIFT ACTUATING SLIDESCREW, LATCH TO SHIFT ACTUATING SLIDE
-
824-27087 SPRING, COMPRESSION - LATCH SCREWSPRING, COMPRESSION - LATCH SCREW
-
975717 SLIDE, NYLON - ANCHOR BRACKETSLIDE, NYLON - ANCHOR BRACKET
-
1039515 END CAP, NYLON - ANCHOR BRACKET SLIDEEND CAP, NYLON - ANCHOR BRACKET SLIDE
-
1187876A2 BRACKET, SHIFT ANCHOR - LOWERBRACKET, SHIFT ANCHOR - LOWER
-
1210-20012 SCREW, (.250-28 x 1.62)SCREW, (.250-28 x 1.62)
-
1311-826709109 NUT, (.250-28), UPPER ANCHOR BRACKET SCREWNUT, (.250-28), UPPER ANCHOR BRACKET SCREW
-
1439519 CUP
RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)CUP
RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL) -
1587609A1 LEVERLEVER
-
1617-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
1790211 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
1887609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
1975104A7 SHIFT SHAFT ASSEMBLY
(SHORT SHAFT)SHIFT SHAFT ASSEMBLY
(SHORT SHAFT) -
1975104A8 SHIFT SHAFT ASSEMBLY
(LONG SHAFT)SHIFT SHAFT ASSEMBLY
(LONG SHAFT) -
2012-37998 WASHER, UPPER SHIFT SHAFT
(MANUAL)WASHER, UPPER SHIFT SHAFT
(MANUAL) -
2118-26811 COTTER PIN, UPPER SHIFT SHAFT
(MANUAL)COTTER PIN, UPPER SHIFT SHAFT
(MANUAL) -
2287-88096A1 SWITCH ASSEMBLY, NEUTRAL START
(ELECTRIC TILLER HANDLE MODELS)SWITCH ASSEMBLY, NEUTRAL START
(ELECTRIC TILLER HANDLE MODELS) -
2310-30902 SCREW, (#6-32 x .750), SWITCH ATTACHING
(ELECTRIC TILLER HANDLE MODELS)SCREW, (#6-32 x .750), SWITCH ATTACHING
(ELECTRIC TILLER HANDLE MODELS) -
2486-45915 TERMINAL BLOCK
(ELECTRIC TILLER HANDLE MODELS)TERMINAL BLOCK
(ELECTRIC TILLER HANDLE MODELS) -
2510-25764 SCREW, (.190-32 x .50), TERMINAL BLOCK ATTACHING
(ELECTRIC TILLER HANDLE MODELS)SCREW, (.190-32 x .50), TERMINAL BLOCK ATTACHING
(ELECTRIC TILLER HANDLE MODELS) -
2611-27164 NUT AND LOCKWASHER, (#10-32), TERMINAL BLOCK SCREW
(ELECTRIC TILLER HANDLE MODELS)NUT AND LOCKWASHER, (#10-32), TERMINAL BLOCK SCREW
(ELECTRIC TILLER HANDLE MODELS) -
2710-69079 SCREW, (#10-16 x .440), SWITCH LEADS TO TERMINAL BLOCK
(ELECTRIC TILLER HANDLE MODELS)SCREW, (#10-16 x .440), SWITCH LEADS TO TERMINAL BLOCK
(ELECTRIC TILLER HANDLE MODELS)
