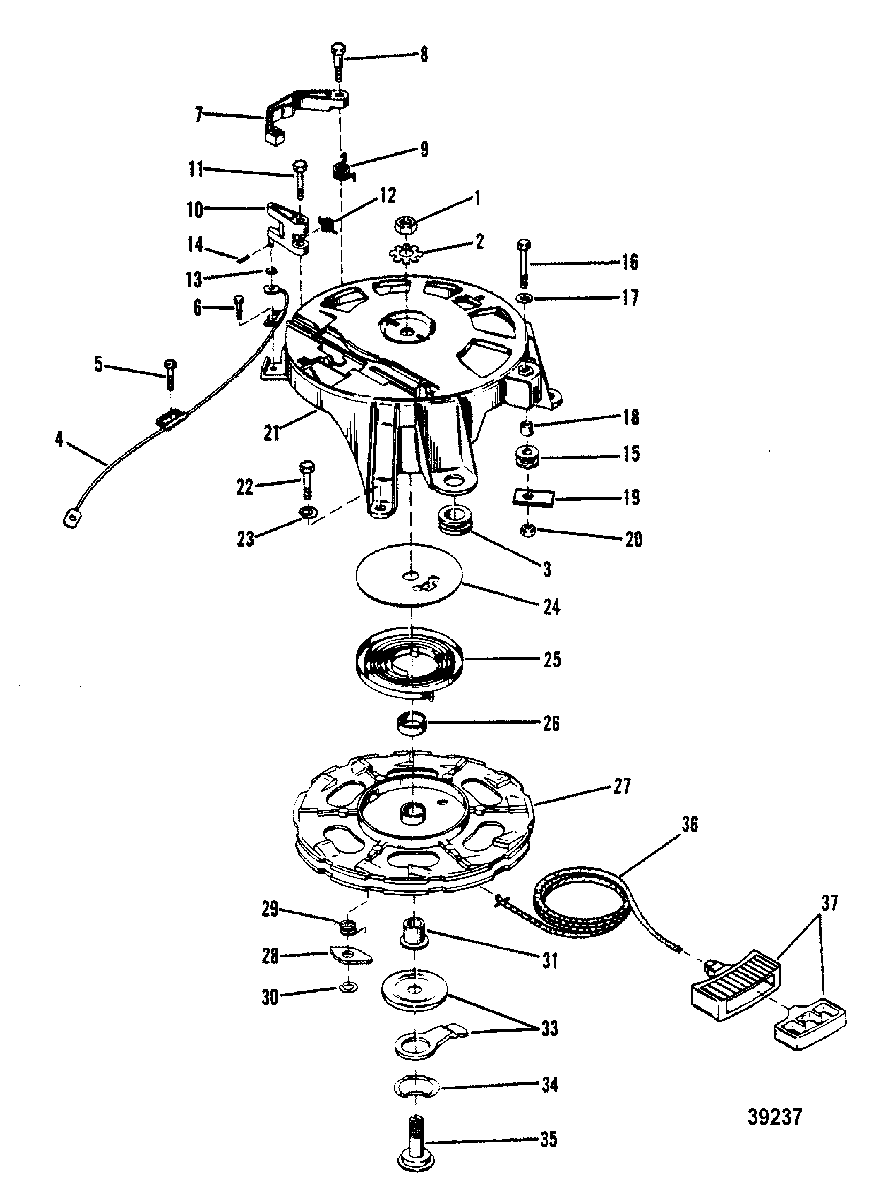

STARTER HOUSING ASSEMBLY для Mercury - 402, 40 (2 CYL.) 7144763 & Up
-
№АртикулНазвание
-
111-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
214-61004 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
325-39597 GROMMET, STARTER HOUSINGGROMMET, STARTER HOUSING
-
476141 CABLE ASSEMBLY, INTERLOCK
MANUALCABLE ASSEMBLY, INTERLOCK
MANUAL -
510-32228 SCREW, (#10-32 x .625), CABLE TO EXHAUST PLATE
MANUALSCREW, (#10-32 x .625), CABLE TO EXHAUST PLATE
MANUAL -
610-69022 SCREW, (#10-32 x .500) Stainless Steel
MANUALSCREW, (#10-32 x .500) Stainless Steel
MANUAL -
7428201 CAM, INTERLOCK
MANUALCAM, INTERLOCK
MANUAL -
810-76138 SCREW, (.312-18 x 1.120)
MANUALSCREW, (.312-18 x 1.120)
MANUAL -
924-761401 SPRING
MANUALSPRING
MANUAL -
1079371 ACTUATOR, INTERLOCK
MANUALACTUATOR, INTERLOCK
MANUAL -
1110-76137 SCREW (1-5/8")
MANUALSCREW (1-5/8")
MANUAL -
1224-76139 SPRING, INTERLOCK ACTUATOR SCREW - MANUAL
MANUALSPRING, INTERLOCK ACTUATOR SCREW - MANUAL
MANUAL -
1312-30191 WASHER, INTERLOCK CABLE
MANUALWASHER, INTERLOCK CABLE
MANUAL -
1418-26811 COTTER PIN, INTERLOCK CABLE TO ACTUATOR
MANUALCOTTER PIN, INTERLOCK CABLE TO ACTUATOR
MANUAL -
1593695 PULLEY, STARTER SCREWPULLEY, STARTER SCREW
-
1610-45210 SCREW, (.190-32 x 1.250), PULLEY TO STARTER HOUSINGSCREW, (.190-32 x 1.250), PULLEY TO STARTER HOUSING
-
1712-22887 WASHER, PULLEY SCREWWASHER, PULLEY SCREW
-
1823-309772 SPACER, PULLEY SCREWSPACER, PULLEY SCREW
-
1994121 RETAINER, STARTER ROPERETAINER, STARTER ROPE
-
2011-24656 NUT, PULLEY SCREWNUT, PULLEY SCREW
-
2176079A8 HOUSING ASSEMBLY, StarterHOUSING ASSEMBLY, Starter
-
2210-88759 SCREW, STARTER HOUSING TO CRANKCASE (1")SCREW, STARTER HOUSING TO CRANKCASE (1")
-
2313-26993 LOCKWASHER, (.312), STARTER HOUSING SCREWLOCKWASHER, (.312), STARTER HOUSING SCREW
-
2461002 PLATE, STARTER REWINDPLATE, STARTER REWIND
-
2524-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
2623-87649 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2750-94338A1 SHEAVE ASSEMBLY, StarterSHEAVE ASSEMBLY, Starter
-
2891936 PAWL, StarterPAWL, Starter
-
2924-87651 SPRING, STARTER PAWLSPRING, STARTER PAWL
-
3053-87706 E RING, STARTER PAWLE RING, STARTER PAWL
-
3123-63061 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3394962A1 LEVER ASSEMBLYLEVER ASSEMBLY
-
3413-20160 WAVE WASHERWAVE WASHER
-
3587656 SHEAVE SHAFTSHEAVE SHAFT
-
3650-12066Q10 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
3647341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
-
3779470A1 RETAINER KIT, Rope, STARTER ROPERETAINER KIT, Rope, STARTER ROPE
