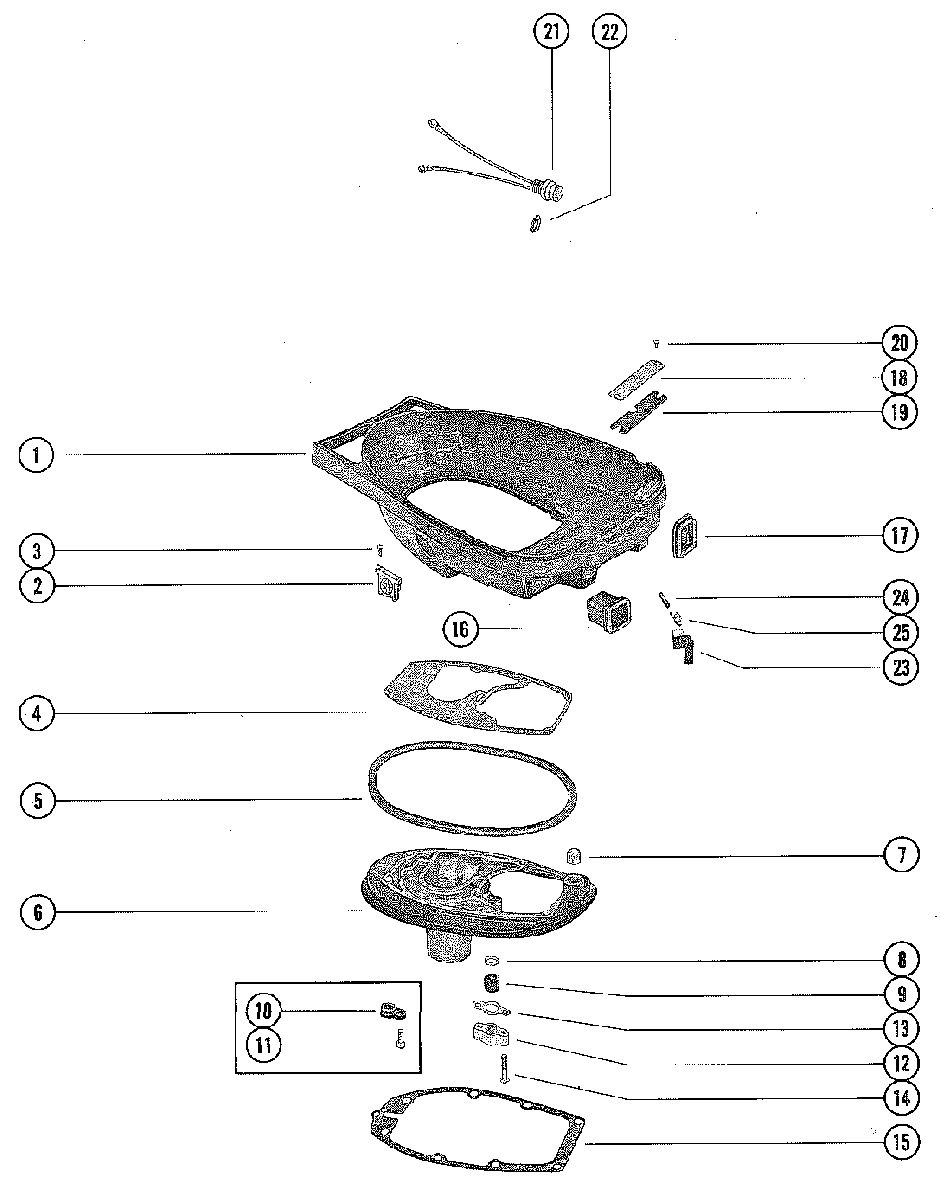

BOTTOM COWL AND EXHAUST PLATE ASSEMBLY для Mercury - 402, 40 (2 CYL.) 9184451 THRU 9251455
-
№АртикулНазвание
-
12139-7642A2 BOTTOM COWLBOTTOM COWL
-
248472 COVER, PLUG - BOTTOM COWL HARNESS HOLE
MANUALCOVER, PLUG - BOTTOM COWL HARNESS HOLE
MANUAL -
310-61802 SCREW, PLUG COVER TO BOTTOM COWL (7/8")
MANUALSCREW, PLUG COVER TO BOTTOM COWL (7/8")
MANUAL -
427-628601 GASKET
POWERHEAD TO EXHAUST EXTENSION PLATEGASKET
POWERHEAD TO EXHAUST EXTENSION PLATE -
539622 SEAL, RUBBER
EXHAUST PLATE TO BOTTOM COWLSEAL, RUBBER
EXHAUST PLATE TO BOTTOM COWL -
642818A1 PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL GROUP #1PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL GROUP #1 -
642818A1 PLATE ASSEMBLY, EXHUAST EXTENSION
SERIAL GROUP #1PLATE ASSEMBLY, EXHUAST EXTENSION
SERIAL GROUP #1 -
723-71980 BUSHING, FLANGE EXHUAST PLATEBUSHING, FLANGE EXHUAST PLATE
-
812-38453 WASHER, NYLON - WATER OUTLET TUBEWASHER, NYLON - WATER OUTLET TUBE
-
926-38452 SEAL, RUBBER - WATER OUTLET TUBESEAL, RUBBER - WATER OUTLET TUBE
-
1038500 RETAINER, WATER OUTLET TUBE SEAL
SERIAL GROUP #1RETAINER, WATER OUTLET TUBE SEAL
SERIAL GROUP #1 -
1110-65414 SCREW RETAINER TO EXHAUST PLATE (3/4")
SERIAL GROUP#1SCREW RETAINER TO EXHAUST PLATE (3/4")
SERIAL GROUP#1 -
1279799 HOUSING, WATER INLET TUBE SEAL
SERIAL GROUP #2HOUSING, WATER INLET TUBE SEAL
SERIAL GROUP #2 -
1327-797971 GASKET, HOUSING
SERIAL GROUP #2GASKET, HOUSING
SERIAL GROUP #2 -
1410-79798 SCREW, HOUSING TO EXHAUST PLATE (1 3/8")
SERIAL GROUP #2SCREW, HOUSING TO EXHAUST PLATE (1 3/8")
SERIAL GROUP #2 -
1527-385011 GASKET
EXHAUST PLATE TO DRIVE SHAFT HOUSINGGASKET
EXHAUST PLATE TO DRIVE SHAFT HOUSING -
1637637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1739616 BOOT, CONTROL CABLE - BOTTOM COWLBOOT, CONTROL CABLE - BOTTOM COWL
-
1839555 COVER PLATE ASSEMBLYCOVER PLATE ASSEMBLY
-
1939556 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
2010-8M0113176 SCREW, COVER PLATE TO BOTTOM COWLSCREW, COVER PLATE TO BOTTOM COWL
-
2187-69508A31 STOP SWITCH ASSEMBLY
MANUALSTOP SWITCH ASSEMBLY
MANUAL -
2211-69844 NUT, STOP SWITCH
MANUALNUT, STOP SWITCH
MANUAL -
2376176 LEVER, FRONT COVERLEVER, FRONT COVER
-
2417-26541 ROLL PIN, LEVER TO BOTTOM COWLROLL PIN, LEVER TO BOTTOM COWL
-
2524-76177 SPRING, FRONT COVER LEVERSPRING, FRONT COVER LEVER
