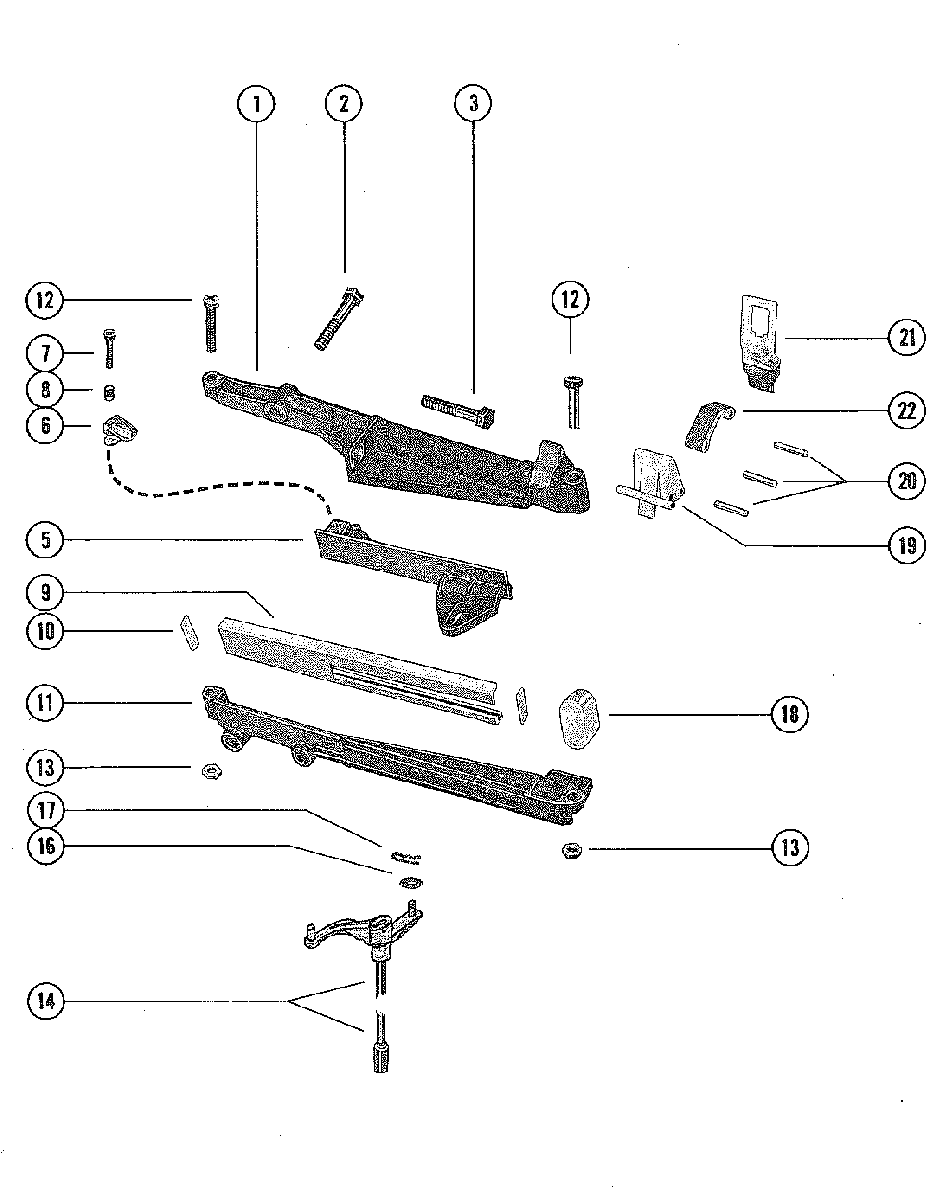

SHIFT CONTROL LINKAGE для Mercury - 402, 40 (2 CYL.) 9184451 THRU 9251455
-
№АртикулНазвание
-
187876A2 BRACKET, SHIFT ANCHOR - UPPERBRACKET, SHIFT ANCHOR - UPPER
-
210-73657 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK
(1 1/2")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK
(1 1/2") -
210-67450 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK
(2 1/8")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK
(2 1/8") -
310-35385 SCREW, BRACKET TO CRANKCASE
(1 3/4")SCREW, BRACKET TO CRANKCASE
(1 3/4") -
587874 SLIDE, SHIFT ACTUATINGSLIDE, SHIFT ACTUATING
-
656193 LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)
-
810-39620 SPRING, COMPRESSION - LATCH SCREWSPRING, COMPRESSION - LATCH SCREW
-
975717 SLIDE, NYLON - ANCHOR BRACKETSLIDE, NYLON - ANCHOR BRACKET
-
1039515 END CAP, NYLON - ANCHOR BRACKET SLIDEEND CAP, NYLON - ANCHOR BRACKET SLIDE
-
1187876A2 BRACKET, SHIFT ANCHOR - LOWERBRACKET, SHIFT ANCHOR - LOWER
-
1210-20012 SCREW, UPPER BRACKET TO LOWER BRACKET
(1 5/8")SCREW, UPPER BRACKET TO LOWER BRACKET
(1 5/8") -
1324-20856 NUT, UPPER ANCHOR BRACKET SCREWNUT, UPPER ANCHOR BRACKET SCREW
-
1475104A7 SHIFT SHAFT ASSEMBLY (SHORT SHAFT)SHIFT SHAFT ASSEMBLY (SHORT SHAFT)
-
1475104A8 SHIFT SHAFT ASSEMBLY (LONG SHAFT)SHIFT SHAFT ASSEMBLY (LONG SHAFT)
-
1612-37998 WASHER, UPPER SHIFT SHAFT
MANUALWASHER, UPPER SHIFT SHAFT
MANUAL -
1718-26811 COTTOER PIN, UPPER SHIFT SHAFT
MANUALCOTTOER PIN, UPPER SHIFT SHAFT
MANUAL -
1839519 CUP, RETAINER - ANCHOR BRACKET
(SHIFT CABLE BARREL)CUP, RETAINER - ANCHOR BRACKET
(SHIFT CABLE BARREL) -
1987609A1 LEVER, NYLON - SHIFT CABLE LOCKING
(UPPER BRACKET)LEVER, NYLON - SHIFT CABLE LOCKING
(UPPER BRACKET) -
2017-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
2139667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
2287609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
