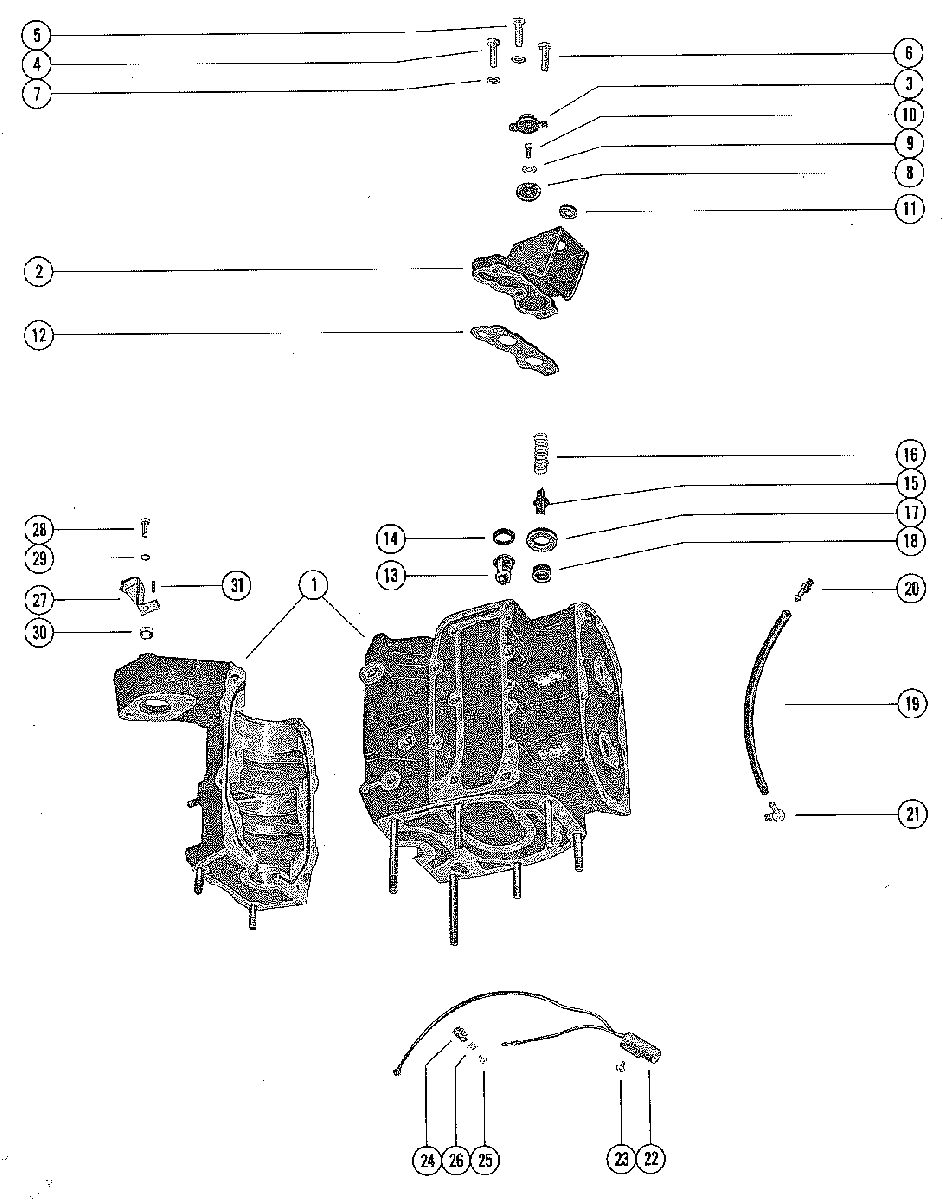

CYLINDER BLOCK AND COIL MOUNTING BRACKET для Mercury - 402, 40 (2 CYL.) 9184451 THRU 9251455
-
№АртикулНазвание
-
1851-7940A6 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
266843T BRACKET, COIL MOUNTINGBRACKET, COIL MOUNTING
-
399436A1 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
410-31984 SCREW, COIL MOUNTING BRACKET TO BLOCK
(1 3/8")SCREW, COIL MOUNTING BRACKET TO BLOCK
(1 3/8") -
510-31984 SCREW, STARTER BRACKET AND COVER TO BLOCK
(1 3/8")SCREW, STARTER BRACKET AND COVER TO BLOCK
(1 3/8") -
610-58414 SCREW, COVER AND COIL BRACKET TO BLOCK
(2 1/2")SCREW, COVER AND COIL BRACKET TO BLOCK
(2 1/2") -
713-26993 LOCKWASHER, COIL MOUNTING BRACKET SCREWLOCKWASHER, COIL MOUNTING BRACKET SCREW
-
8648771 DIAPHRAGM, POPPET VALVEDIAPHRAGM, POPPET VALVE
-
912-76451 WASHER, DIAPHRAGMWASHER, DIAPHRAGM
-
1010-69570 SCREW
WASHER AND DIAPHRAGM TO POPPET VALVESCREW
WASHER AND DIAPHRAGM TO POPPET VALVE -
1125-39597 GROMMET, COIL MOUNTING BRACKETGROMMET, COIL MOUNTING BRACKET
-
1227-66847 GASKET, COIL MOUNTING BRACKET TO BLOCKGASKET, COIL MOUNTING BRACKET TO BLOCK
-
1375692 THERMOSTATTHERMOSTAT
-
1427-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
1586596 POPPET, RELIEF VALVEPOPPET, RELIEF VALVE
-
1624-66852 SPRING, COMPRESSION - POPPET RELIEF VALVESPRING, COMPRESSION - POPPET RELIEF VALVE
-
1765848 CARRIER, POPPET VALVECARRIER, POPPET VALVE
-
1825-64872 GROMMET, POPPET VALVEGROMMET, POPPET VALVE
-
1932-9938779 HOSE, CYLINDER BLEED (8")HOSE, CYLINDER BLEED (8")
-
2021-42866 FITTING, CYLINDER BLEED (TOP)FITTING, CYLINDER BLEED (TOP)
-
2121-42863 ELBOW, CYLINDER BLEED (BOTTOM)ELBOW, CYLINDER BLEED (BOTTOM)
-
2258124A17 SWITCH ASSEMBLY, MERCURYSWITCH ASSEMBLY, MERCURY
-
2310-48409 SCREW, MERCURY SWITCH TO EXHAUST COVER
(5/8")SCREW, MERCURY SWITCH TO EXHAUST COVER
(5/8") -
2454-26550 CLIP, MERCURY SWITCH LEADCLIP, MERCURY SWITCH LEAD
-
2510-62568 SCREW, MERCURY SWITCH CLIP (3/8")SCREW, MERCURY SWITCH CLIP (3/8")
-
268M0084613 "D" WASHER, CLIP SCREW"D" WASHER, CLIP SCREW
-
2776184 INDICATOR, TIMING
ELECTRICINDICATOR, TIMING
ELECTRIC -
2810-25299 SCREW, INDICATOR ATTACHING (3/4")
ELECTRICSCREW, INDICATOR ATTACHING (3/4")
ELECTRIC -
2912-20084 WASHER, INDICATOR ATTACHING SCREW
ELECTRICWASHER, INDICATOR ATTACHING SCREW
ELECTRIC -
3023-62769 SPACER, INDICATOR ATTACHING SCREW
ELECTRICSPACER, INDICATOR ATTACHING SCREW
ELECTRIC -
3117-29908 ROLL PIN, INDICATOR LOCATING
ELECTRICROLL PIN, INDICATOR LOCATING
ELECTRIC
