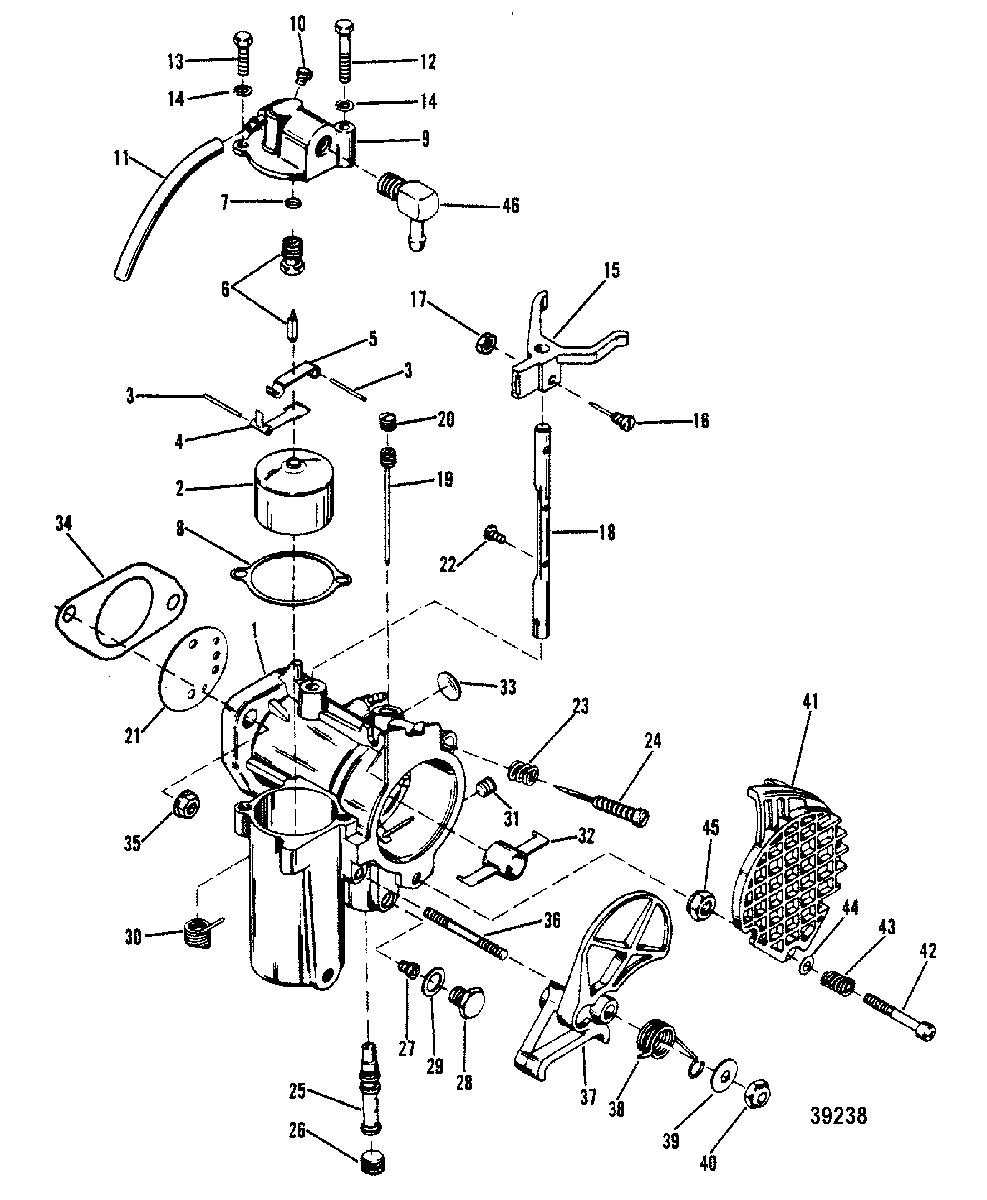

CARBURETOR ASSEMBLY для Mercury - 402, 40 (2 CYL.) 9251456 & Up
-
№АртикулНазвание
-
11368-7226A19 CARBURETOR ASSEMBLY
WMK-33CARBURETOR ASSEMBLY
WMK-33 -
11368-7226A19 CARBURETOR ASSEMBLY
WMK-34CARBURETOR ASSEMBLY
WMK-34 -
11368-7226A19 CARBURETOR ASSEMBLY
WMK-38CARBURETOR ASSEMBLY
WMK-38 -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3NSS NOT SOLD SEPARATE, PIN, FLOAT LEVER PINIONNOT SOLD SEPARATE, PIN, FLOAT LEVER PINION
-
4NSS NOT SOLD SEPARATE, LEVER, FLOAT (LOWER)NOT SOLD SEPARATE, LEVER, FLOAT (LOWER)
-
5NSS NOT SOLD SEPARATE, LEVER, FLOAT (UPPER)NOT SOLD SEPARATE, LEVER, FLOAT (UPPER)
-
61395-83181 NEEDLE, InletNEEDLE, Inlet
-
7NSS NOT SOLD SEPARATE, GASKET, INLET SEATNOT SOLD SEPARATE, GASKET, INLET SEAT
-
8NSS NOT SOLD SEPARATE, GASKET, FLOAT BOWL COVERNOT SOLD SEPARATE, GASKET, FLOAT BOWL COVER
-
91395-5680 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
91395-9016 COVER, FLOAT BOWL
WMK-38COVER, FLOAT BOWL
WMK-38 -
101399-6249 JET, Main (.096)JET, Main (.096)
-
101395-5733 JET, Main (.092)
WMK-38JET, Main (.092)
WMK-38 -
1132-892024122 HOSE, ECONOMIZERHOSE, ECONOMIZER
-
1210-52195 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
131395-4804 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
1413-26995 LOCKWASHER, (#8) Stainless Steel, FLOAT BOWL COVER SCREWLOCKWASHER, (#8) Stainless Steel, FLOAT BOWL COVER SCREW
-
1574371 LEVER, THROTTLE
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowLEVER, THROTTLE
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
1592880 LEVER, THROTTLE
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpLEVER, THROTTLE
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
161395-6027 SCREW, THROTTLE LEVER
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowSCREW, THROTTLE LEVER
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
1610-60293 SCREW, (#5-40 x .500), THROTTLE LEVER
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpSCREW, (#5-40 x .500), THROTTLE LEVER
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
1711-92500 PUSH NUT, THROTTLE LEVER SCREW
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpPUSH NUT, THROTTLE LEVER SCREW
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
181395-7942 SHAFT
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowSHAFT
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
181395-8641 SHAFT, Throttle
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpSHAFT, Throttle
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
19NSS NOT SOLD SEPARATE, IDLE TUBENOT SOLD SEPARATE, IDLE TUBE
-
201395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
211395-7639 VALVEVALVE
-
211395-9017 SHUTTER, Throttle
WMK-38SHUTTER, Throttle
WMK-38 -
22NSS NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTERNOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER
-
23NSS NOT SOLD SEPARATE, SPRING, IDLE ADJUSTMENT SCREWNOT SOLD SEPARATE, SPRING, IDLE ADJUSTMENT SCREW
-
24NSS NOT SOLD SEPARATE, SCREW, IDLE ADJUSTMENTNOT SOLD SEPARATE, SCREW, IDLE ADJUSTMENT
-
25NSS NOT SOLD SEPARATE, MAIN NOZZLENOT SOLD SEPARATE, MAIN NOZZLE
-
261395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
271399-3794 JET, (.074), MAIN FUELJET, (.074), MAIN FUEL
-
271395-6207 JET, (.072), MAIN FUELJET, (.072), MAIN FUEL
-
271395-6030 JET, (.070), MAIN FUELJET, (.070), MAIN FUEL
-
281395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
29NSS NOT SOLD SEPARATE, GASKET, JET CHANNEL PLUG SCREWNOT SOLD SEPARATE, GASKET, JET CHANNEL PLUG SCREW
-
30NSS NOT SOLD SEPARATE, SPRING, THROTTLE SHAFT RETURNNOT SOLD SEPARATE, SPRING, THROTTLE SHAFT RETURN
-
311395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
3252106A1 VENTURI, PlasticVENTURI, Plastic
-
33NSS NOT SOLD SEPARATE, PLUG, BODY CHANNELNOT SOLD SEPARATE, PLUG, BODY CHANNEL
-
3427-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3511-64809 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
3616-69016 STUD, CHOKE SHUTTER PIVOT (CARBURETOR)STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
-
3755179 SHUTTER, Choke, CARBURETORSHUTTER, Choke, CARBURETOR
-
3824-55163 SPRING, TENSION - CHOKE SHUTTERSPRING, TENSION - CHOKE SHUTTER
-
3912-47960 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
4011-20110 NUT, (#10-32), CHOKE SHUTTER TO CARBURETOR STUDNUT, (#10-32), CHOKE SHUTTER TO CARBURETOR STUD
-
4135-57819 SCREEN, CARBURETORSCREEN, CARBURETOR
-
4210-58185 SCREW, (#10-32 x 1.00), SCREEN TO CARBURETORSCREW, (#10-32 x 1.00), SCREEN TO CARBURETOR
-
4324-57818 SPRING, TENSION - SCREEN SCREWSPRING, TENSION - SCREEN SCREW
-
4412-30164 WASHER, SCREEN SCREWWASHER, SCREEN SCREW
-
4511-20110 NUT, (#10-32), SCREEN SCREWNUT, (#10-32), SCREEN SCREW
-
4622-19688 FITTING, ELBOW - CARBURETORFITTING, ELBOW - CARBURETOR
-
-27-78028A78 GASKET SETGASKET SET
-
-1395-879194024 GASKET SETGASKET SET
-
-1395-51091 REPAIR PARTS KITREPAIR PARTS KIT
-
-1395-51091 REPAIR PARTS KIT
WMK-38REPAIR PARTS KIT
WMK-38
