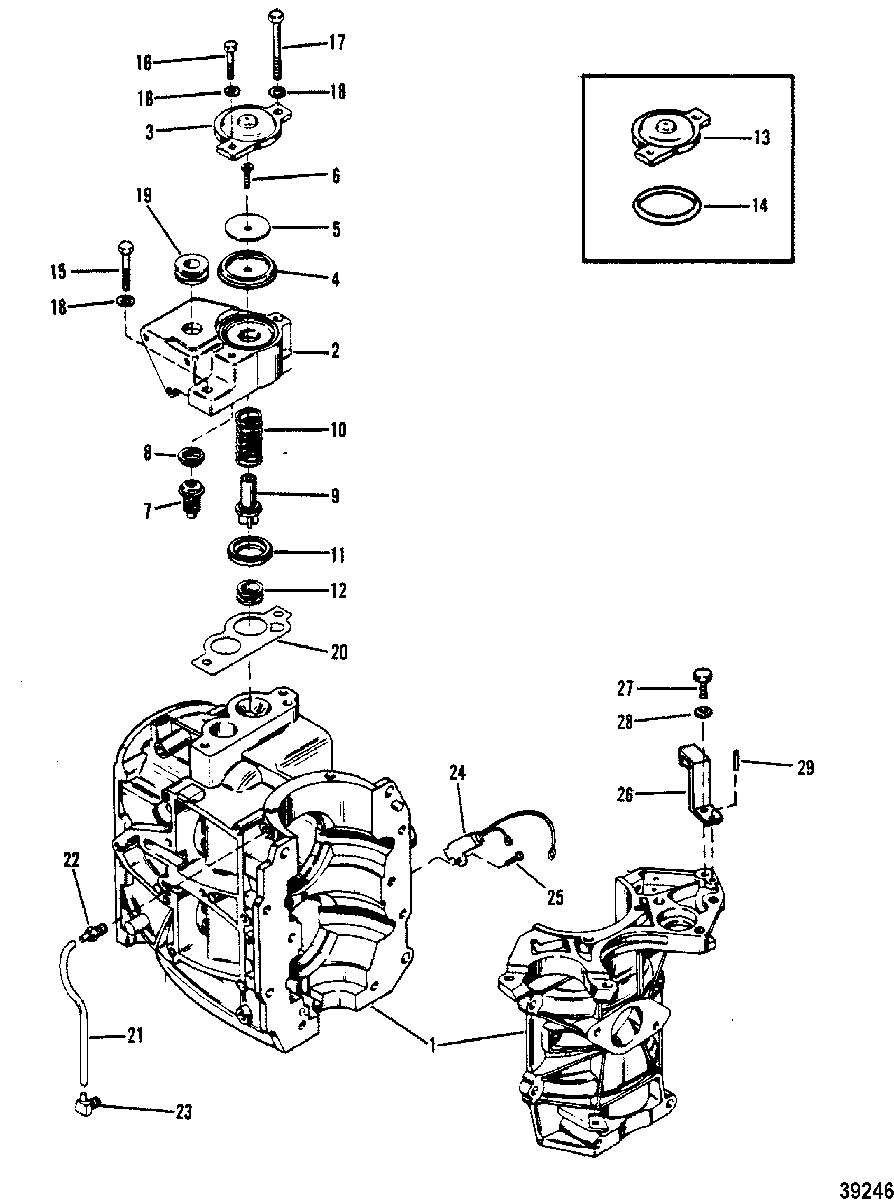

CYLINDER BLOCK AND THERMOSTAT для Mercury - 402, 40 (2 CYL.) 9251456 & Up
-
№АртикулНазвание
-
1851-7940A6 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
266843T BRACKET, COIL MOUNTINGBRACKET, COIL MOUNTING
-
399436A1 COVER, DIAPHRAGM
WITH THERMOSTATCOVER, DIAPHRAGM
WITH THERMOSTAT -
4648771 DIAPHRAGM, POPPET VALVE
WITH THERMOSTATDIAPHRAGM, POPPET VALVE
WITH THERMOSTAT -
512-76451 WASHER, DIAPHRAGM
WITH THERMOSTATWASHER, DIAPHRAGM
WITH THERMOSTAT -
610-69570 SCREW, (#10-16 x .750), WASHER AND DIAPHRAGM
WITH THERMOSTATSCREW, (#10-16 x .750), WASHER AND DIAPHRAGM
WITH THERMOSTAT -
775692 THERMOSTAT
WITH THERMOSTATTHERMOSTAT
WITH THERMOSTAT -
827-62386001 GASKET, THERMOSTAT
WITH THERMOSTATGASKET, THERMOSTAT
WITH THERMOSTAT -
986596 POPPET VALVE, RELIEF VALVE
WITH THERMOSTATPOPPET VALVE, RELIEF VALVE
WITH THERMOSTAT -
1024-66852 SPRING, COMPRESSION
WITH THERMOSTATSPRING, COMPRESSION
WITH THERMOSTAT -
1165848 CARRIER, POPPET VALVE
WITH THERMOSTATCARRIER, POPPET VALVE
WITH THERMOSTAT -
1225-64872 GROMMET, POPPET VALVE
WITH THERMOSTATGROMMET, POPPET VALVE
WITH THERMOSTAT -
1399436A1 COVER ASSEMBLY, COIL BRACKET
W/O THERMOSTATCOVER ASSEMBLY, COIL BRACKET
W/O THERMOSTAT -
1425-823683 O-RING, COVER
W/O THERMOSTATO-RING, COVER
W/O THERMOSTAT -
1510-31984 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
1610-88760 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1710-58414 SCREW (2-1/2")SCREW (2-1/2")
-
1813-26993 LOCKWASHER, (.312), COIL MOUNTING BRACKET SCREWLOCKWASHER, (.312), COIL MOUNTING BRACKET SCREW
-
1925-39597 GROMMET, COIL MOUNTING BRACKETGROMMET, COIL MOUNTING BRACKET
-
2027-66847 GASKET, COIL MOUNTING BRACKET TO BLOCKGASKET, COIL MOUNTING BRACKET TO BLOCK
-
2132-9938779 HOSE, CYLINDER BLEED (8")HOSE, CYLINDER BLEED (8")
-
2221-42866 CHECK VALVE, CYLINDER BLEED (TOP)CHECK VALVE, CYLINDER BLEED (TOP)
-
2321-42863 FITTING, CYLINDER BLEED (BOTTOM)FITTING, CYLINDER BLEED (BOTTOM)
-
2458124A17 SWITCH ASSEMBLY, MERCURY
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowSWITCH ASSEMBLY, MERCURY
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
2458124A27 SWITCH ASSEMBLY, MERCURY
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpSWITCH ASSEMBLY, MERCURY
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
2510-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
2676184 INDICATOR, TIMING
ELECTRICINDICATOR, TIMING
ELECTRIC -
2710-25299 SCREW, (.312-18 x .75), INDICATOR ATTACHING
ELECTRICSCREW, (.312-18 x .75), INDICATOR ATTACHING
ELECTRIC -
2812-20084 WASHER, (.328 x .562 x .062), INDICATOR ATTACHING SCREW
ELECTRICWASHER, (.328 x .562 x .062), INDICATOR ATTACHING SCREW
ELECTRIC -
2917-29908 PIN, INDICATOR LOCATING
ELECTRICPIN, INDICATOR LOCATING
ELECTRIC -
-27-78028A78 GASKET SETGASKET SET
