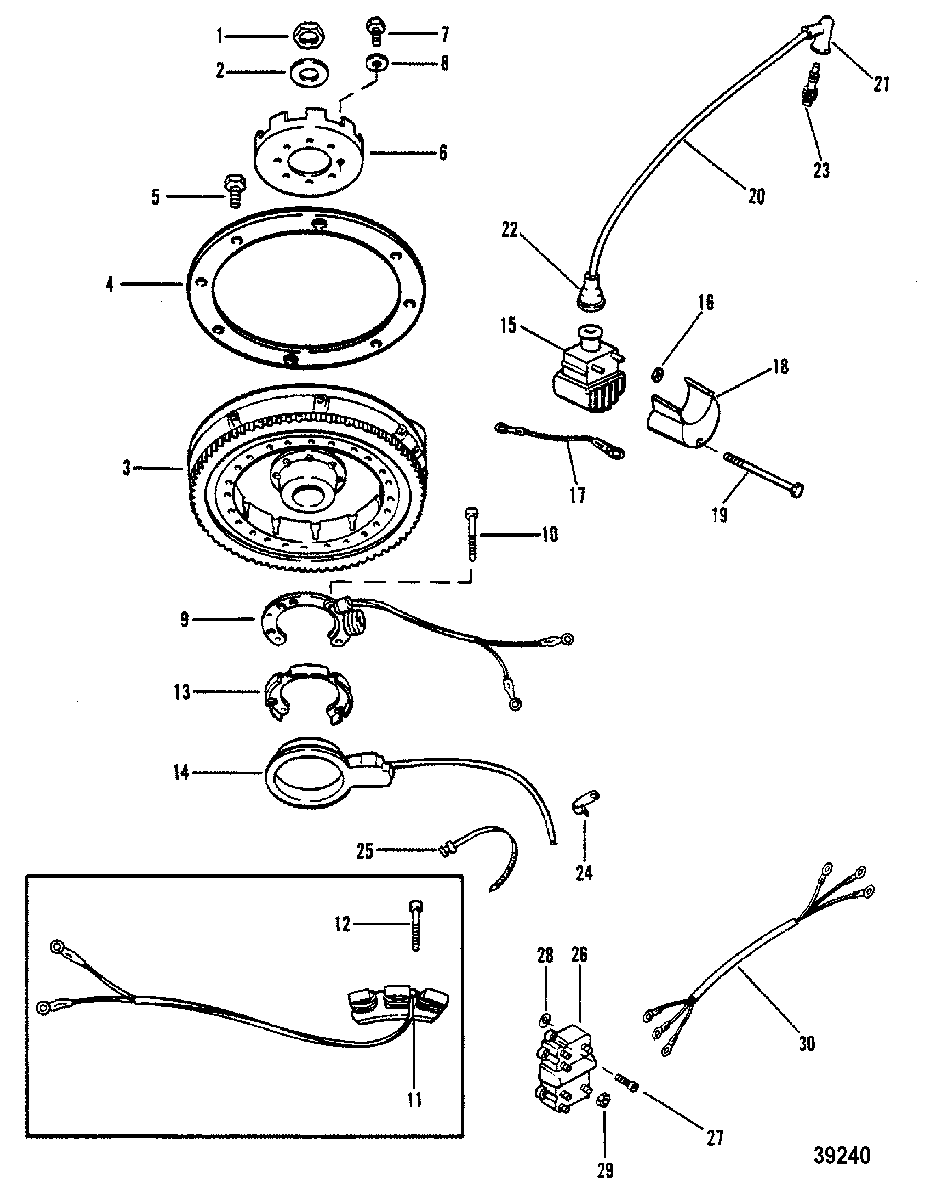

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 402, 40 (2 CYL.) 9251456 & Up
-
№АртикулНазвание
-
111-22339 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
212-36258 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
3242-7912A14 FLYWHEEL ASSEMBLY
(MANUAL)FLYWHEEL ASSEMBLY
(MANUAL) -
3242-7912A8 FLYWHEEL ASSEMBLY
(ELECTRIC - 78 TEETH)FLYWHEEL ASSEMBLY
(ELECTRIC - 78 TEETH) -
3242-7912A12 FLYWHEEL ASSEMBLY
(ELECTRIC - 77 TEETH)FLYWHEEL ASSEMBLY
(ELECTRIC - 77 TEETH) -
441409A1 INERTIA RING ASSEMBLYINERTIA RING ASSEMBLY
-
510-32417 SCREW, (.250-28 x .625), FLYWHEELSCREW, (.250-28 x .625), FLYWHEEL
-
650-65213 RATCHET, FLYWHEEL
(MANUAL)RATCHET, FLYWHEEL
(MANUAL) -
710-69088 SCREW, RATCHET TO FLYWHEEL (7/8")
(MANUAL)SCREW, RATCHET TO FLYWHEEL (7/8")
(MANUAL) -
813-20202 LOCKWASHER, RATCHET SCREW
(MANUAL)LOCKWASHER, RATCHET SCREW
(MANUAL) -
986617A20 STATOR ASSEMBLY, IGNITIONSTATOR ASSEMBLY, IGNITION
-
1010-77363 SCREW, (#10-24 x 1.50), STATOR TO UPPER END CAPSCREW, (#10-24 x 1.50), STATOR TO UPPER END CAP
-
1010-19926100 SCREW, (#10-24 x 1.00), STATOR TO UPPER END CAPSCREW, (#10-24 x 1.00), STATOR TO UPPER END CAP
-
1186704A10 STATOR ASSEMBLY, CHARGING
(ELECTRIC)STATOR ASSEMBLY, CHARGING
(ELECTRIC) -
1210-93787 SCREW, (#10-24 x 1.750), STATOR TO UPPER END CAP
(ELECTRIC)SCREW, (#10-24 x 1.750), STATOR TO UPPER END CAP
(ELECTRIC) -
1395707 SUPPORT, StatorSUPPORT, Stator
-
1492431A6 TRIGGER PLATETRIGGER PLATE
-
15339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1611-45076 NUT, (#10-32) Brass, COIL TERMINALNUT, (#10-32) Brass, COIL TERMINAL
-
1784-60466A1 CABLE ASSEMBLY, Black (2.50 Inches) , COIL COVER SCREWCABLE ASSEMBLY, Black (2.50 Inches) , COIL COVER SCREW
-
1876254 COVER, IGNITION COILCOVER, IGNITION COIL
-
1910-69002 SCREW, (#10-24 x 1.750), COVER TO COIL BRACKETSCREW, (#10-24 x 1.750), COVER TO COIL BRACKET
-
1910-93460 SCREW, (.190-24 x 2.125), COVER TO COIL BRACKETSCREW, (.190-24 x 2.125), COVER TO COIL BRACKET
-
2084-813715A1 LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
-
2185-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
22332-2854T01 BOOT, IGNITION COILBOOT, IGNITION COIL
-
2333-97180Q SPARK PLUG (AC#V-40FFM)SPARK PLUG (AC#V-40FFM)
-
2333-14103550 SPARK PLUG (CHAMPION #QL76V)
FOR CANADA AND BELGIUMSPARK PLUG (CHAMPION #QL76V)
FOR CANADA AND BELGIUM -
2454-54457 J CLIP, LEAD WIRESJ CLIP, LEAD WIRES
-
2561990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
26899883230 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
2710-23015 SCREW, SWITCH BOX TO BRACKETSCREW, SWITCH BOX TO BRACKET
-
2813-69432 LOCKWASHER, External (#10), GROUNDLOCKWASHER, External (#10), GROUND
-
2911-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
3084-94295A1 HARNESS ASSEMBLY, PRIMARYHARNESS ASSEMBLY, PRIMARY
