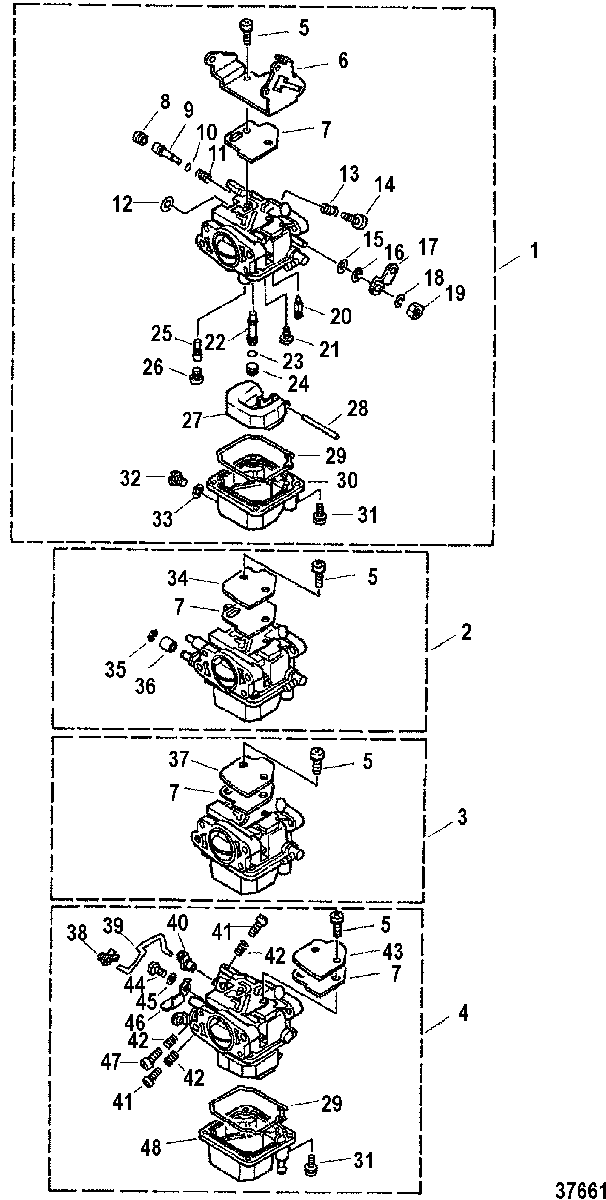

CARBURETOR(ADJUSTABLE PILOT SCREW) для Mercury - 45 BODENSEE (4-STROKE) 9944807 THRU 0P016999
-
№АртикулНазвание
-
13319-825073T1 CARBURETOR
(1) 50-ADJUSTABLE PILOT SCREWCARBURETOR
(1) 50-ADJUSTABLE PILOT SCREW -
13319-825073A6 CARBURETOR
(1) 40/45CARBURETOR
(1) 40/45 -
21300-8M0128511 CARBURETOR
(2) 50-ADJUSTABLE PILOT SCREWCARBURETOR
(2) 50-ADJUSTABLE PILOT SCREW -
23319-825073A7 CARBURETOR
(2) 40/45CARBURETOR
(2) 40/45 -
33319-825073A3 CARBURETOR
(3) 50-ADJUSTABLE PILOT SCREWCARBURETOR
(3) 50-ADJUSTABLE PILOT SCREW -
33319-825073A8 CARBURETOR
(3) 40/45CARBURETOR
(3) 40/45 -
43319-825073A4 CARBURETOR
(4) 50-ADJUSTABLE PILOT SCREWCARBURETOR
(4) 50-ADJUSTABLE PILOT SCREW -
43319-825073T9 CARBURETOR
(4) 40/45CARBURETOR
(4) 40/45 -
510-809571 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
6809572 COVER
(1)COVER
(1) -
7809573 GASKETGASKET
-
819-855237 PLUG, Metal
(50)PLUG, Metal
(50) -
826-827737 SEAL, Rubber
(40/45 )SEAL, Rubber
(40/45 ) -
910-809578 SCREW, Pilot
(50)SCREW, Pilot
(50) -
910-8095784 SCREW SET, Pilot
(40/45)SCREW SET, Pilot
(40/45) -
1025-809124M O-RINGO-RING
-
1124-809579 SPRING, Air AdjustingSPRING, Air Adjusting
-
1212-826943M WASHER
(1/2/3)WASHER
(1/2/3) -
1324-8095791 SPRING
(1/2/3)SPRING
(1/2/3) -
1410-8095781 SCREW, Throttle
(1/2/3)SCREW, Throttle
(1/2/3) -
1512-809580 WASHERWASHER
-
1653-94722M RING, RetainingRING, Retaining
-
17809582 LEVER
(1)LEVER
(1) -
1813-92515M LOCKWASHER
(1)LOCKWASHER
(1) -
1911-809581 NUT
(1)NUT
(1) -
20809570 NEEDLE VALVE
(50)NEEDLE VALVE
(50) -
208095701 VALVE, Needle
(40/45)VALVE, Needle
(40/45) -
2110-8095711 SCREW, (M4 x 5)SCREW, (M4 x 5)
-
22809574 MAIN NOZZLE
(50)MAIN NOZZLE
(50) -
228095741 MAIN NOZZLE
(40/45)MAIN NOZZLE
(40/45) -
2325-11802M O-RINGO-RING
-
24809577 MAIN NOZZLEMAIN NOZZLE
-
258095761 JET, Pilot (#44)
(50)JET, Pilot (#44)
(50) -
258095761 JET, Pilot (#42)
(40/45)JET, Pilot (#42)
(40/45) -
26809575 JET, Main (#112)
(50)JET, Main (#112)
(50) -
268095751 JET, Main (#104)
(1/2) (40/45 )JET, Main (#104)
(1/2) (40/45 ) -
268095752 JET, Main (#103)
(3/4) (40/45)JET, Main (#103)
(3/4) (40/45) -
27809569 FLOATFLOAT
-
2817-11794M PINPIN
-
2927-809568 GASKETGASKET
-
30809567 BODY
(1/2/3)BODY
(1/2/3) -
3110-81758M SCREW, (M4 x 12)SCREW, (M4 x 12)
-
3210-8095783 SCREW, Drain (M5 x 6)SCREW, Drain (M5 x 6)
-
3327-8095681 GASKETGASKET
-
348095721 COVER
(2)COVER
(2) -
3553-809584 CLIP
(2)CLIP
(2) -
36809585 ROLLER
(2)ROLLER
(2) -
378095721 COVER
(3)COVER
(3) -
3811829M RETAINER
(4)RETAINER
(4) -
39809586 ROD, Starter
(4)ROD, Starter
(4) -
40809587 JOINT
(4)JOINT
(4) -
4110-8095781 SCREW, Throttle
(4)SCREW, Throttle
(4) -
4224-8095791 SPRING, Pilot Adjusting
(4)SPRING, Pilot Adjusting
(4) -
438095721 COVER
(4)COVER
(4) -
4410-8095712 SCREW
(4)SCREW
(4) -
4512-8095801 WASHER
(4)WASHER
(4) -
468095821 LEVER
(4)LEVER
(4) -
4710-826931M SCREW
(4)SCREW
(4) -
488095671 BODY
(4)BODY
(4) -
-809594A1 REPAIR KIT, Carburetor
(One Kit per Carburetor)REPAIR KIT, Carburetor
(One Kit per Carburetor)
