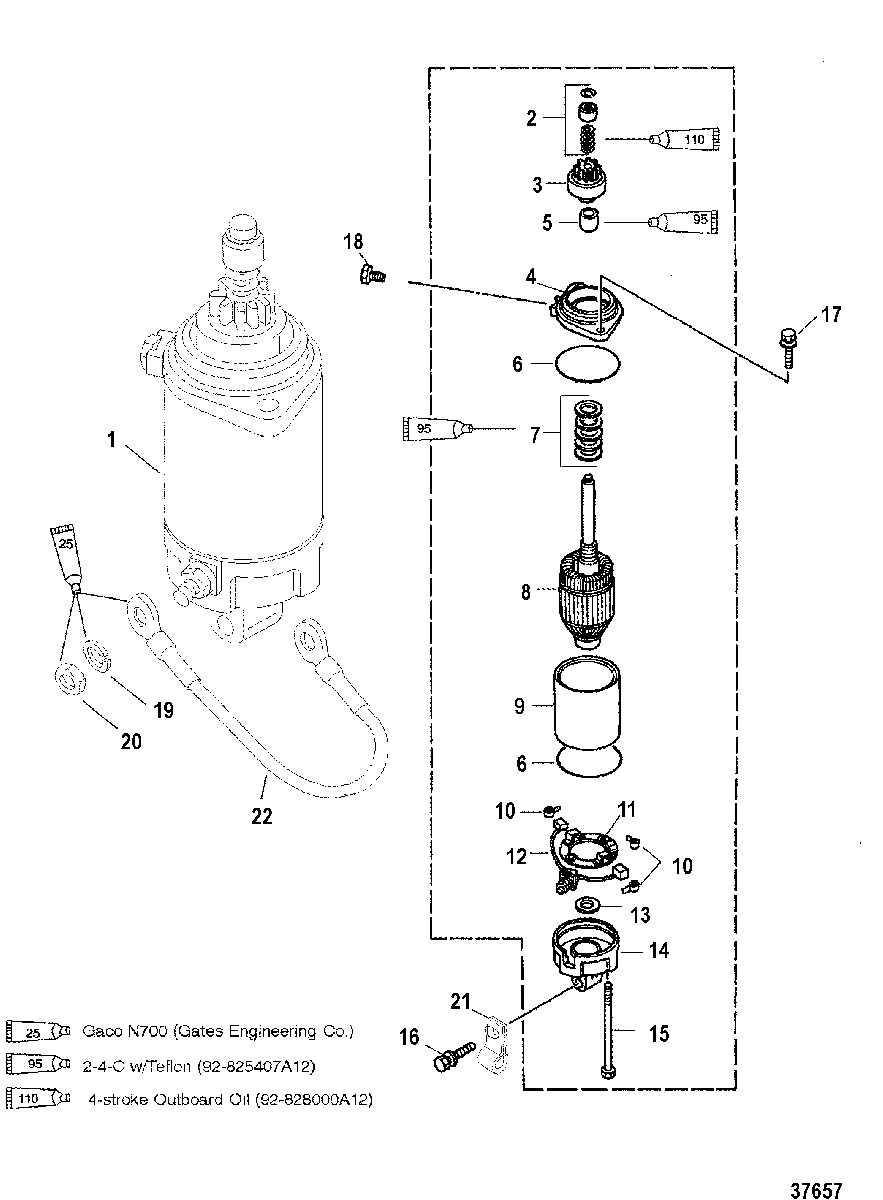

STARTER MOTOR(S/N-0G472132 AND BELOW) для Mercury - 45 BODENSEE (4-STROKE) 9944807 THRU 0P016999
-
№АртикулНазвание
-
150-825095 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2809556 RETAINERRETAINER
-
3809555T GEARGEAR
-
4809557 BRACKET, FrontBRACKET, Front
-
5809588 METALMETAL
-
625-809550 O-RINGO-RING
-
712-809548 WASHER KITWASHER KIT
-
8809547 ARMATUREARMATURE
-
9809549 STATORSTATOR
-
1024-809553 SPRINGSPRING
-
11809552 HOLDER ASSEMBLY, BrushHOLDER ASSEMBLY, Brush
-
12809551 BRUSH SETBRUSH SET
-
1312-8095481 WASHERWASHER
-
14809554 BRACKET, RearBRACKET, Rear
-
1510-809558 BOLTBOLT
-
1610-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
1710-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1810-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
1913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2011-64015 NUT, (.250-20)NUT, (.250-20)
-
2154-814634 CLAMPCLAMP
-
2284-93388A6 CABLE ASSEMBLY, (5.500 Inches)CABLE ASSEMBLY, (5.500 Inches)
