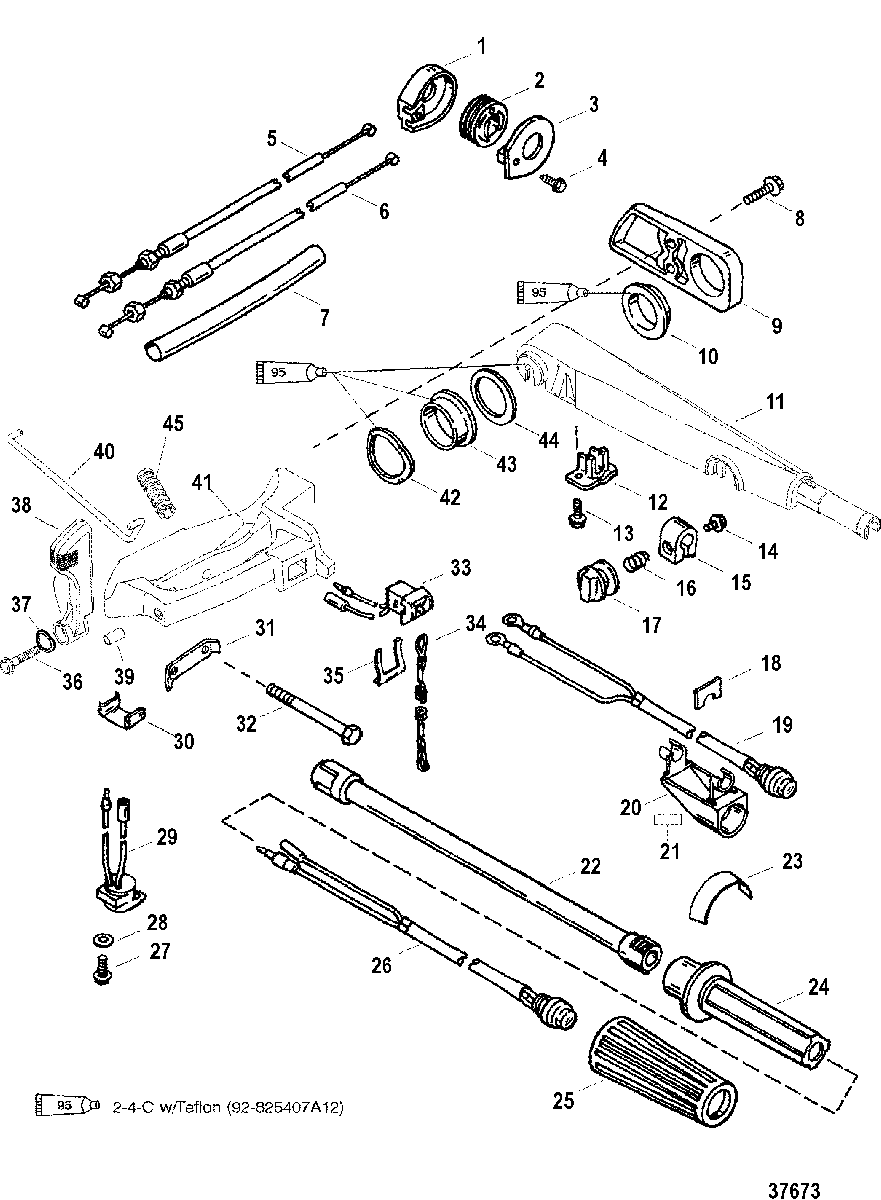

TILLER HANDLE для Mercury - 45 BODENSEE (4-STROKE) 9944807 THRU 0P016999
-
№АртикулНазвание
-
1822148T06 COVER KITCOVER KIT
-
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATE, CaseNOT SOLD SEPARATE, Case
-
410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
54324210 CABLE ASSEMBLY, Throttle (30.50 Inches)CABLE ASSEMBLY, Throttle (30.50 Inches)
-
64324211 CABLE ASSEMBLY, Throttle (41.50 Inches)CABLE ASSEMBLY, Throttle (41.50 Inches)
-
785-960099 SLEEVE, (12.00 Inches)SLEEVE, (12.00 Inches)
-
810-82526225 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
98M0072298 COVER
(BLACK)COVER
(BLACK) -
9822407F2 COVER
(GRAY)COVER
(GRAY) -
1023-821477 BUSHINGBUSHING
-
11828813T1 ARM
(BLACK)ARM
(BLACK) -
11828813T1 ARM, Steering Handle
(GRAY)ARM, Steering Handle
(GRAY) -
12822441 RETAINERRETAINER
-
1310-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
15892995 LOCK, ThrottleLOCK, Throttle
-
1624-96203 SPRINGSPRING
-
17821972T KNOB, ThrottleKNOB, Throttle
-
18824918 CLIPCLIP
-
1987-823609A12 SWITCH ASSEMBLY
(START)SWITCH ASSEMBLY
(START) -
20889734 HOUSING, SwitchHOUSING, Switch
-
21NSS NOT SOLD SEPARATE, Decal-StartNOT SOLD SEPARATE, Decal-Start
-
228M0138696 TILLER TUBETILLER TUBE
-
2337-8242004 DECALDECAL
-
24821465 HANDLE, ThrottleHANDLE, Throttle
-
2599589003 GRIPGRIP
-
2687-8M0104614 SWITCH ASSEMBLY
(STOP)SWITCH ASSEMBLY
(STOP) -
2710-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2812-4002316 WASHERWASHER
-
2984-8M0088388 ALARM ASSEMBLYALARM ASSEMBLY
-
30823687 CLIPCLIP
-
3114-8M0009820 TAB WASHERTAB WASHER
-
3210-82484890 SCREW, (M10 x 90)SCREW, (M10 x 90)
-
3387-11083A31 SWITCH
(STOP)SWITCH
(STOP) -
348M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
358M0032846 RETAINER, BrassRETAINER, Brass
-
3610-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
3713-12134 WASHER, WaveWASHER, Wave
-
38830180A01 HANDLEHANDLE
-
3923-830181 BUSHINGBUSHING
-
408301821 SHIFT RODSHIFT ROD
-
41821455A4 BRACKET, Tiller
(BLACK)BRACKET, Tiller
(BLACK) -
41821455A4 BRACKET, Tiller
(GRAY)BRACKET, Tiller
(GRAY) -
4213-826792 WAVE WASHERWAVE WASHER
-
4323-821477 BUSHINGBUSHING
-
4412-827314 WASHERWASHER
-
4532-828547633 CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)
