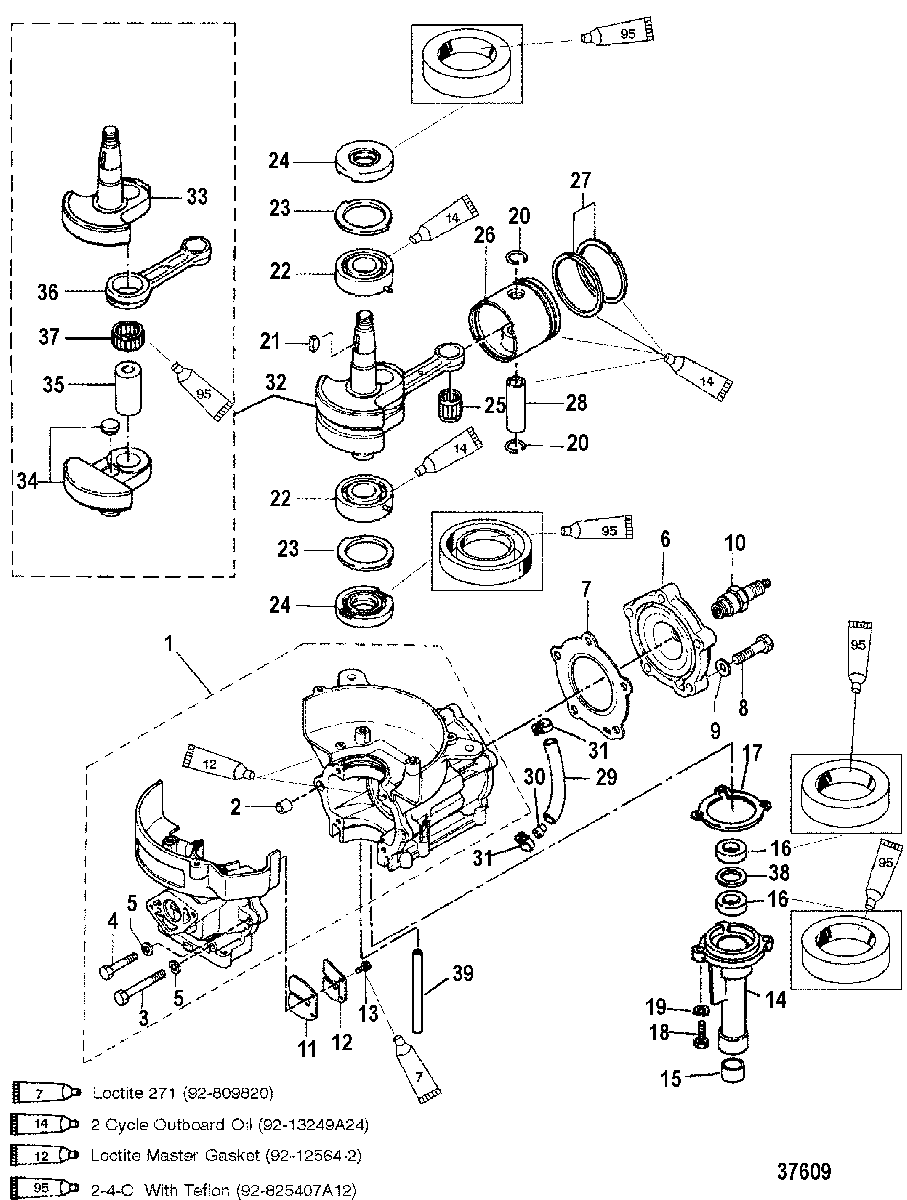

CYLINDER BLOCK/CRANKSHAFT/PISTON для Mercury - 4/5 0A855097 THRU 0G710612

№

Артикул

Название
1

878-815013A2 CYLINDER BLOCK
SN# USA-0G574242/BEL-9973100 & Up

CYLINDER BLOCK
SN# USA-0G574242/BEL-9973100 & Up

27 020 ₽
1

878-815013A5 CYLINDER BLOCK
SN# USA-0G574241/BEL-9973099 & Below

CYLINDER BLOCK
SN# USA-0G574241/BEL-9973099 & Below

24 470 ₽
2

17-9521814 PIN, Dowel
SN# USA-0G574242/BEL-9973100 & Up

PIN, Dowel
SN# USA-0G574242/BEL-9973100 & Up

210 ₽
2

17-95218 PIN, Dowel
SN# USA-0G574241/BEL-9973099 & Below

PIN, Dowel
SN# USA-0G574241/BEL-9973099 & Below

0 ₽
3

10-16695 BOLT

BOLT

150 ₽
4

10-16696 BOLT

BOLT

190 ₽
5

13-16818 LOCKWASHER

LOCKWASHER

100 ₽
6

979-96301 CYLINDER HEAD

CYLINDER HEAD

3 480 ₽
7

27-812939015 GASKET

GASKET

4 450 ₽
8

10-16126 BOLT

BOLT

150 ₽
9

12-4002217 WASHER

WASHER

120 ₽
10

33-17719547 SPARK PLUG, (NGK#BPR7HS-10) (W/RESISTANCE)

SPARK PLUG, (NGK#BPR7HS-10) (W/RESISTANCE)

480 ₽
10

33-8M0114744 SPARK PLUG, (NGK#BP7HS-10) (WITHOUT RESISTANCE)

SPARK PLUG, (NGK#BP7HS-10) (WITHOUT RESISTANCE)

560 ₽
11

34-16706 REED VALVE

REED VALVE

690 ₽
12

34-16707 STOP
(4 H.P.)

STOP
(4 H.P.)

220 ₽
12

34-17666 STOP
(5 H.P.)

STOP
(5 H.P.)

200 ₽
13

10-16820 SCREW

SCREW

170 ₽
14

8150162 HOUSING
SN# USA-0G574242/BEL-9973100 & Up

HOUSING
SN# USA-0G574242/BEL-9973100 & Up

2 090 ₽
14

8150162 HOUSING, Oil Seal
SN# USA-0G574241/BEL-9973099 & Below

HOUSING, Oil Seal
SN# USA-0G574241/BEL-9973099 & Below

2 090 ₽
15

23-815017 BUSHING
SN# USA-0G574241/BEL-9973099 & Below

BUSHING
SN# USA-0G574241/BEL-9973099 & Below

0 ₽
16

26-8M0101649 SEAL, Oil

SEAL, Oil

890 ₽
17

27-16704 GASKET

GASKET

190 ₽
18

10-16705 BOLT

BOLT

150 ₽
19

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
20

53-16057 CLIP

CLIP

120 ₽
21

28-16053 KEY

KEY

370 ₽
22

30-16049 BEARING, Ball

BEARING, Ball

3 120 ₽
23

8537122 THRUST PLATE

THRUST PLATE

220 ₽
24

26-16051 SEAL, Oil

SEAL, Oil

1 200 ₽
25

31-16052 BEARING, Roller

BEARING, Roller

1 090 ₽
26

779-8M0103755 PISTON
(STANDARD)

PISTON
(STANDARD)

7 050 ₽
26

779-8M0103756 PISTON
(.5MM O.S.)

PISTON
(.5MM O.S.)

9 600 ₽
27

39-8M0080357 RING, Piston
(STANDARD)

RING, Piston
(STANDARD)

4 690 ₽
27

39-8M0080356 RING, Piston
(.5MM O.S.)

RING, Piston
(.5MM O.S.)

5 310 ₽
28

41-898101918 PIN, Piston

PIN, Piston

970 ₽
29

32-8M0057112 HOSE, (160 mm)
USE WHERE APPLICABLE

HOSE, (160 mm)
USE WHERE APPLICABLE

1 780 ₽
30

21-42657A3 CHECK VALVE
USE WHERE APPLICABLE

CHECK VALVE
USE WHERE APPLICABLE

460 ₽
31

54-95224 CLIP

CLIP

150 ₽
32

474-879147T15 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

29 610 ₽
33

463-813044 CRANKSHAFT

CRANKSHAFT

0 ₽
34

474-879147T15 CRANKSHAFT

CRANKSHAFT

29 610 ₽
35

813046002 PIN, Crank

PIN, Crank

1 220 ₽
36

629-813047 CONNECTING ROD

CONNECTING ROD

2 860 ₽
37

31-813048 BEARING

BEARING

1 330 ₽
38

23-815018 SPACER

SPACER

120 ₽
39

32-823976 HOSE, Tell-Tale

HOSE, Tell-Tale

610 ₽
-

16115A03 GASKET SET, Powerhead

GASKET SET, Powerhead

11 980 ₽
-

815040T05 POWERHEAD ASSEMBLY
(4HP) SN# USA-0G574242/BEL-9973100 & Up

POWERHEAD ASSEMBLY
(4HP) SN# USA-0G574242/BEL-9973100 & Up

82 900 ₽
-

815042T04 POWERHEAD ASSEMBLY
(5HP) SN# USA-0G574242/BEL-9973100 & Up

POWERHEAD ASSEMBLY
(5HP) SN# USA-0G574242/BEL-9973100 & Up

88 060 ₽
-

815040T05 POWERHEAD ASSEMBLY
(4HP) SN# USA-0G574241/BEL-9973099 & Below

POWERHEAD ASSEMBLY
(4HP) SN# USA-0G574241/BEL-9973099 & Below

82 900 ₽
-

815042T04 POWERHEAD ASSEMBLY
(5HP) SN# USA-0G574241/BEL-9973099 & Below

POWERHEAD ASSEMBLY
(5HP) SN# USA-0G574241/BEL-9973099 & Below

88 060 ₽
