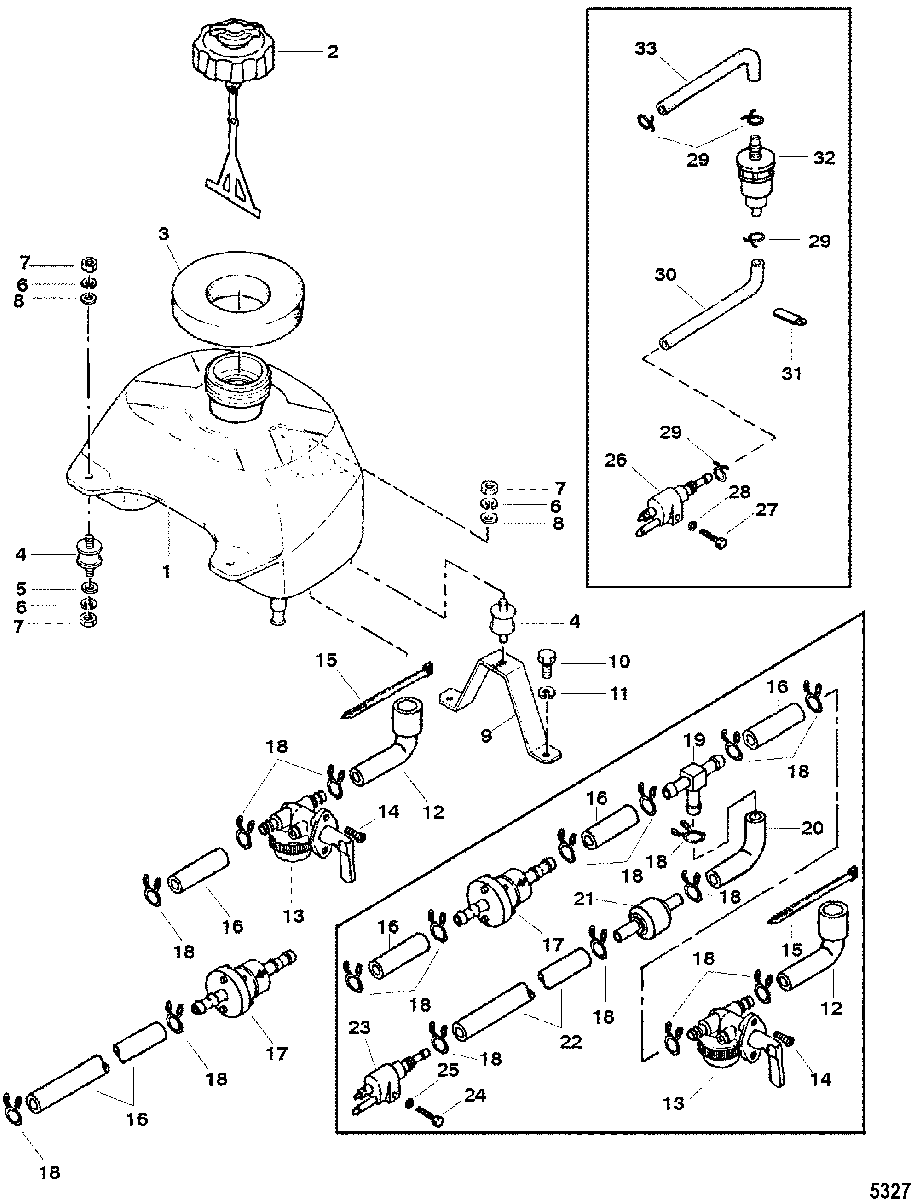

FUEL TANK(SERIAL GROUP #2) для Mercury - 4/5 0A855097 THRU 0G710612

№

Артикул

Название
1

1258-824964A03 TANK ASSEMBLY, Fuel

TANK ASSEMBLY, Fuel

0 ₽
2

36-8M0060029 CAP

CAP

1 960 ₽
3

26-8M0099393 SEAL
SN# USA-0G574242/BEL-9973100 & Up

SEAL
SN# USA-0G574242/BEL-9973100 & Up

730 ₽
3

26-8M0099393 SEAL
SN# USA-0G574241/BEL-9973099 & Below

SEAL
SN# USA-0G574241/BEL-9973099 & Below

730 ₽
4

16236 MOUNT

MOUNT

490 ₽
5

12-953921 WASHER, Stainless Steel

WASHER, Stainless Steel

230 ₽
6

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
7

11-400212 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

170 ₽
8

12-898101937 WASHER

WASHER

330 ₽
9

8M0046049 BRACKET

BRACKET

980 ₽
10

10-16832 BOLT, (M6 x 16)

BOLT, (M6 x 16)

190 ₽
11

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
12

22-815043 REDUCER ELBOW

REDUCER ELBOW

890 ₽
13

22-815045 FUEL COCK ASSEMBLY

FUEL COCK ASSEMBLY

2 690 ₽
14

10-815046 SCREW, Stainless Steel

SCREW, Stainless Steel

100 ₽
15

56762 CLAMP, Plastic

CLAMP, Plastic

30 ₽
16

32-8M0057113 HOSE, (80 mm)
(Quantity of 3 required on 5HP)

HOSE, (80 mm)
(Quantity of 3 required on 5HP)

1 980 ₽
17

35-16248 FILTER, Fuel

FILTER, Fuel

640 ₽
18

54-95395 CLIP, Stainless Steel
(Quantity of 11 required on 5HP)

CLIP, Stainless Steel
(Quantity of 11 required on 5HP)

200 ₽
19

22-73318 TEE, Plastic
5 H.P.

TEE, Plastic
5 H.P.

330 ₽
20

32-815049 HOSE, Rubber
5 H.P.

HOSE, Rubber
5 H.P.

360 ₽
21

22-815048 CONNECTOR, Plastic
5 H.P.

CONNECTOR, Plastic
5 H.P.

1 960 ₽
22

32-8M0057113 HOSE, Rubber (110 mm)
5 H.P.

HOSE, Rubber (110 mm)
5 H.P.

1 980 ₽
23

22-15781A5 CONNECTOR, Fuel - Brass
5 H.P.

CONNECTOR, Fuel - Brass
5 H.P.

2 100 ₽
24

10-4000333 SCREW, (M6 x 40)
5 H.P.

SCREW, (M6 x 40)
5 H.P.

290 ₽
25

12-16826 WASHER, Stainless Steel
5 H.P.

WASHER, Stainless Steel
5 H.P.

110 ₽
26

22-15781A5 CONNECTOR, Fuel - Brass
5 H.P.

CONNECTOR, Fuel - Brass
5 H.P.

2 100 ₽
27

10-4000333 SCREW, (M6 x 40)
5 H.P.

SCREW, (M6 x 40)
5 H.P.

290 ₽
28

12-16826 WASHER, Stainless Steel
5 H.P.

WASHER, Stainless Steel
5 H.P.

110 ₽
29

54-95395 CLIP, Stainless Steel
5 H.P.

CLIP, Stainless Steel
5 H.P.

200 ₽
30

32-17668 HOSE
5 H.P.

HOSE
5 H.P.

520 ₽
31

54-8M0130961 CLAMP
5 H.P.

CLAMP
5 H.P.

0 ₽
32

35-16248 FILTER, Fuel
5 H.P.

FILTER, Fuel
5 H.P.

640 ₽
33

32-17669 HOSE
5 H.P.

HOSE
5 H.P.

490 ₽
