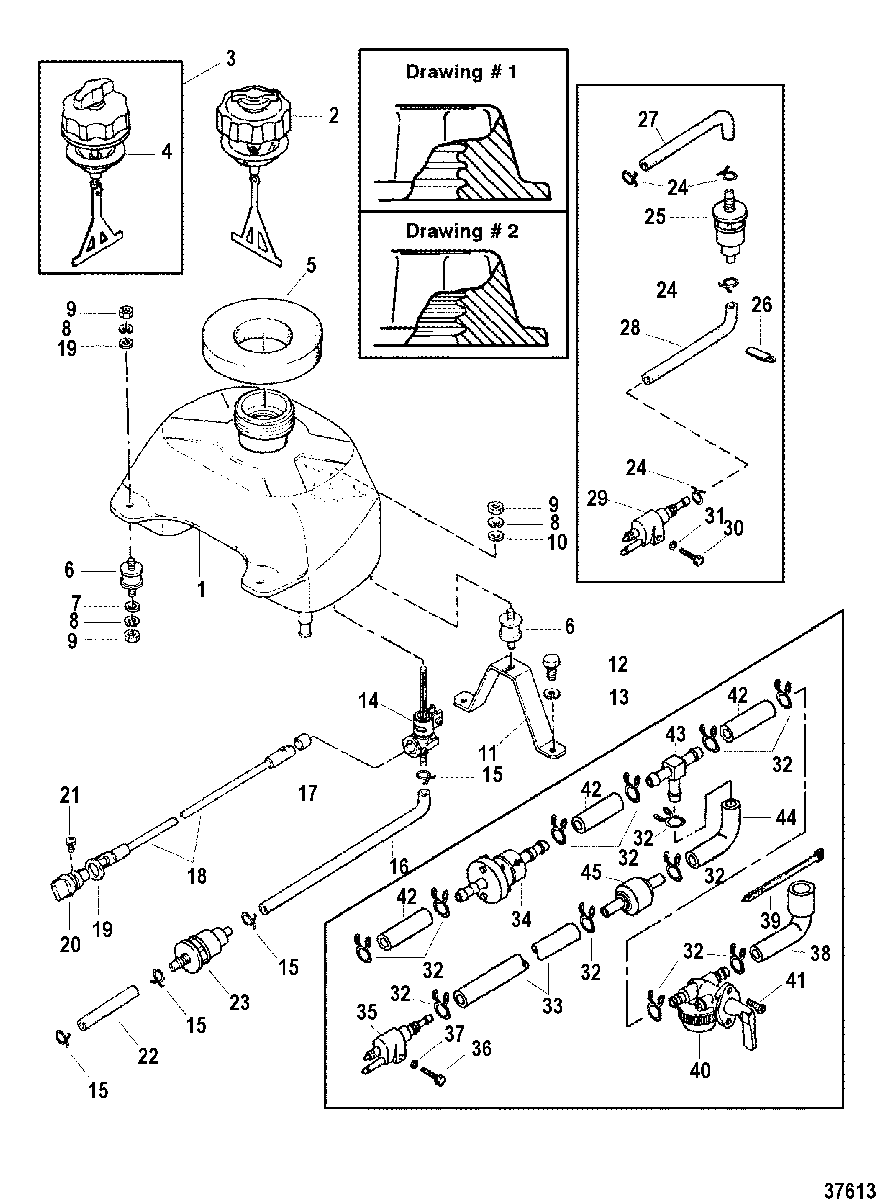

FUEL TANK(SERIAL GROUP #1) для Mercury - 4/5 0A855097 THRU 0G710612
-
№АртикулНазвание
-
11258-824964A03 TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
236-8M0060029 CAPCAP
-
336-8129523 CAP
(REFER TO DRAWING #2)CAP
(REFER TO DRAWING #2) -
336-812952 CAP
(REFER TO DRAWING #1)CAP
(REFER TO DRAWING #1) -
427-8M0065762 GASKET (USE WHERE APPLICABLE)GASKET (USE WHERE APPLICABLE)
-
526-8M0099393 SEALSEAL
-
616236 MOUNTMOUNT
-
712-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
813-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
911-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1012-898101937 WASHERWASHER
-
118M0046049 BRACKETBRACKET
-
1210-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
1313-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
1422-16240 FUEL COCK ASSEMBLY
4 H.P. 22-815045A1 REPLACEMENT KITFUEL COCK ASSEMBLY
4 H.P. 22-815045A1 REPLACEMENT KIT -
1554-95395 CLIP, Stainless Steel
4 H.P. 22-815045A1 REPLACEMENT KITCLIP, Stainless Steel
4 H.P. 22-815045A1 REPLACEMENT KIT -
1632-16246 HOSE
4 H.P. 22-815045A1 REPLACEMENT KITHOSE
4 H.P. 22-815045A1 REPLACEMENT KIT -
1732-16242001 TUBE
4 H.P. 22-815045A1 REPLACEMENT KITTUBE
4 H.P. 22-815045A1 REPLACEMENT KIT -
1816241 ROD
4 H.P. 22-815045A1 REPLACEMENT KITROD
4 H.P. 22-815045A1 REPLACEMENT KIT -
1916244 RUBBER
4 H.P. 22-815045A1 REPLACEMENT KITRUBBER
4 H.P. 22-815045A1 REPLACEMENT KIT -
2016243 KNOB
4 H.P. 22-815045A1 REPLACEMENT KITKNOB
4 H.P. 22-815045A1 REPLACEMENT KIT -
2110-16245 SCREW
4 H.P. 22-815045A1 REPLACEMENT KITSCREW
4 H.P. 22-815045A1 REPLACEMENT KIT -
2232-16247 HOSE, (117 mm)
4 H.P. 22-815045A1 REPLACEMENT KITHOSE, (117 mm)
4 H.P. 22-815045A1 REPLACEMENT KIT -
2335-16248 FILTER, Fuel
4 H.P. 22-815045A1 REPLACEMENT KITFILTER, Fuel
4 H.P. 22-815045A1 REPLACEMENT KIT -
2454-95395 CLIP, Stainless Steel
5 H.P. GRAYCLIP, Stainless Steel
5 H.P. GRAY -
2535-16248 FILTER, Fuel
5 H.P. GRAYFILTER, Fuel
5 H.P. GRAY -
2654-8M0130961 CLAMP
5 H.P. GRAYCLAMP
5 H.P. GRAY -
2732-17669 HOSE
5 H.P. GRAYHOSE
5 H.P. GRAY -
2832-17668 HOSE
5 H.P. GRAYHOSE
5 H.P. GRAY -
2922-15781A5 CONNECTOR, Fuel - Brass
5 H.P. GRAYCONNECTOR, Fuel - Brass
5 H.P. GRAY -
3010-4000333 SCREW, (M6 x 40)
5 H.P. GRAYSCREW, (M6 x 40)
5 H.P. GRAY -
3112-16826 WASHER, Stainless Steel
5 H.P. GRAYWASHER, Stainless Steel
5 H.P. GRAY -
3254-95395 CLIP, Stainless Steel
5 H.P. BLACKCLIP, Stainless Steel
5 H.P. BLACK -
3332-8M0057113 HOSE, Rubber (110 mm)
5 H.P. BLACKHOSE, Rubber (110 mm)
5 H.P. BLACK -
3435-16248 FILTER, Fuel
5 H.P. BLACKFILTER, Fuel
5 H.P. BLACK -
3522-15781A5 CONNECTOR, Fuel - Brass
5 H.P. BLACKCONNECTOR, Fuel - Brass
5 H.P. BLACK -
3610-4000333 SCREW, (M6 x 40)
5 H.P. BLACKSCREW, (M6 x 40)
5 H.P. BLACK -
3712-16826 WASHER, Stainless Steel
5 H.P. BLACKWASHER, Stainless Steel
5 H.P. BLACK -
3822-815043 REDUCER ELBOW
5 H.P. BLACKREDUCER ELBOW
5 H.P. BLACK -
3956762 CLAMP, Plastic
5 H.P. BLACKCLAMP, Plastic
5 H.P. BLACK -
4022-815045 FUEL COCK ASSEMBLY
5 H.P. BLACKFUEL COCK ASSEMBLY
5 H.P. BLACK -
4110-815046 SCREW, Stainless Steel
5 H.P. BLACKSCREW, Stainless Steel
5 H.P. BLACK -
4232-8M0057113 HOSE, Rubber (30 mm)
5 H.P. BLACKHOSE, Rubber (30 mm)
5 H.P. BLACK -
4322-73318 TEE, Plastic
5 H.P. BLACKTEE, Plastic
5 H.P. BLACK -
4432-815049 HOSE, Rubber
5 H.P. BLACKHOSE, Rubber
5 H.P. BLACK -
4522-815048 CONNECTOR, Plastic
5 H.P. BLACKCONNECTOR, Plastic
5 H.P. BLACK -
-815596A2 FUEL TANK ADAPTOR KIT
5 H.P. BLACKFUEL TANK ADAPTOR KIT
5 H.P. BLACK
