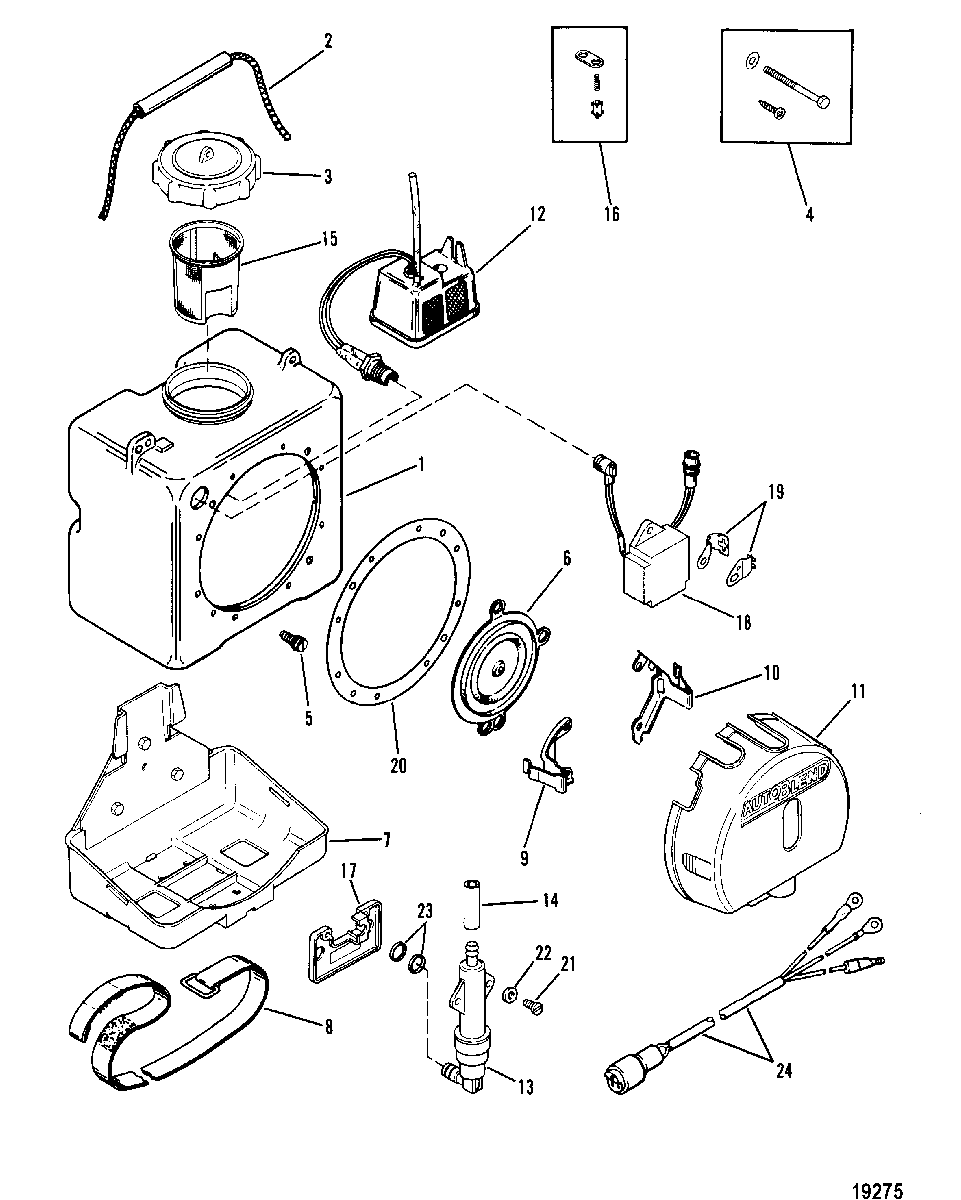

Auto-Blend для Mercury - 50 (3 CYL.) 9469200 THRU 9683054
-
№АртикулНазвание
-
-130194 AUTO BLEND ASSEMBLYAUTO BLEND ASSEMBLY
-
116612 TANK KIT, OilTANK KIT, Oil
-
213996 HANDLE KITHANDLE KIT
-
336-16619 CAP, OIL TANKCAP, OIL TANK
-
416614 HARDWARE KITHARDWARE KIT
-
519-13979 PLUG KIT, DrainPLUG KIT, Drain
-
616611 DIAPHRAGM KITDIAPHRAGM KIT
-
716620 BRACKET KIT, MountingBRACKET KIT, Mounting
-
813993 BANDBAND
-
913983 BRACKET (LEFT)BRACKET (LEFT)
-
1013984 BRACKET (RIGHT)BRACKET (RIGHT)
-
1116613 COVERCOVER
-
1235-13985 FILTER/SENSOR KIT, OilFILTER/SENSOR KIT, Oil
-
1335-18576 FILTER KIT, FuelFILTER KIT, Fuel
-
1432-13992 VINYL TUBEVINYL TUBE
-
1516618 STRAINER, OilSTRAINER, Oil
-
1621-16615 CHECK VALVE KITCHECK VALVE KIT
-
1716621 PLATEPLATE
-
1819265 MODULE KITMODULE KIT
-
1916623 BRACKET KITBRACKET KIT
-
2027-16616 GASKET KITGASKET KIT
-
2110-18679 SCREW, FUEL FILTERSCREW, FUEL FILTER
-
2212-18680 WASHER, FILTER SCREWWASHER, FILTER SCREW
-
2325-18752 'O'RING'O'RING
-
2484-14585A1 HARNESS ASSEMBLY, AUTO-BLENDHARNESS ASSEMBLY, AUTO-BLEND
Все узлы модели:
- • Auto-Blend
- Carburetor
- Carburetor Linkage and Choke Solenoid
- Clamp Bracket(Short)(Long-0C160935 & Below)(60EL NOI)(NPT)
- Cowl Support Brackets
- Cowling and Front Cover
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Driveshaft Housing(Long-0C160936 & Up)(60EL NOI)(NPT)
- Driveshaft Housing(Short)(Long S/N-0C160935 and Below)
- Electric Trim Components(Long-S/N-0C160936 & Up)
- Exhaust and Manifold Covers
- Exhaust Plate
- Flywheel, Switch Box, Ignition Coil and Stator
- Fuel Pump
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft
- Manual Tilt Components
- Power Trim Components(S/N-0C160935 & Below)
- Power Trim Pump(Eaton Rectangular Motor)
- Service/Support Material
- Starter Motor
- Starter Motor, Solenoid and Rectifier
- Swivel Bracket(Long Shaft-S/N-0C160936 & Up)
- Swivel Bracket(Power Trim)(S/N-0C160935 & Below)
- Swivel Bracket(Short)(Long-0C160935 & Below)(60EL NOI)(NPT)
- Throttle Linkage
- Transom Bracket(Long Shaft S/N-0C160936 & Up)
- Transom Bracket(Power Trim)(S/N-0C160935 & Below)
