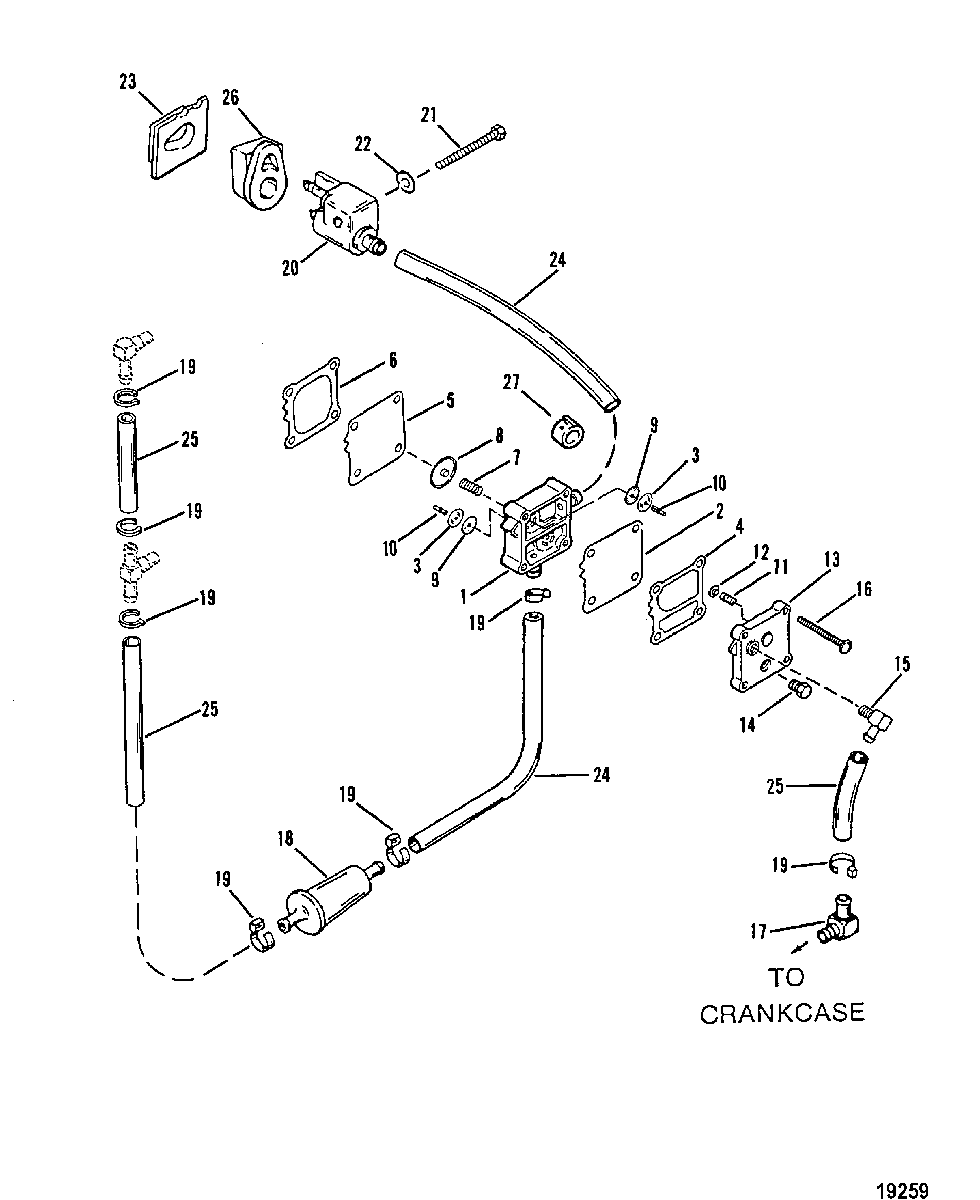

Fuel Pump для Mercury - 50 (3 CYL.) 9469200 THRU 9683054
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, Check Valve-RubberNOT SOLD SEPARATE, Check Valve-Rubber
-
4NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
5NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
6NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, Disc-RubberNOT SOLD SEPARATE, Disc-Rubber
-
10NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
12NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
13987752 PLATE, FUEL PUMPPLATE, FUEL PUMP
-
1422-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
1522-19688 FITTINGFITTING
-
1610-90190 SCREW, FUEL PUMPSCREW, FUEL PUMP
-
1610-16562 SCREW, (#12-24 x 1.50), FUEL PUMPSCREW, (#12-24 x 1.50), FUEL PUMP
-
1722-64705 FITTING, FUEL LINEFITTING, FUEL LINE
-
1835-816296Q2 FILTER, FuelFILTER, Fuel
-
1954-816311T TIE STRAP, FUEL TUBINGTIE STRAP, FUEL TUBING
-
2022-816856Q3 CONNECTOR, Fuel - MetalCONNECTOR, Fuel - Metal
-
2022-816856Q3 CONNECTOR, Fuel (PLASTIC)CONNECTOR, Fuel (PLASTIC)
-
2110-76596 SCREW, (.250-20 x 1.250), FUEL CONNECTOR (METAL)SCREW, (.250-20 x 1.250), FUEL CONNECTOR (METAL)
-
2110-69093 SCREW, (.250-20 x 1.50), FUEL CONNECTOR (PLASTIC)SCREW, (.250-20 x 1.50), FUEL CONNECTOR (PLASTIC)
-
2212-89302 WASHER, FUEL CONNECTOR SCREW (METAL)WASHER, FUEL CONNECTOR SCREW (METAL)
-
2212-29245 WASHER, (.281 x .500 x .060) Stainless Steel, FUEL CONNECTOR SCREW (PLASTIC)WASHER, (.281 x .500 x .060) Stainless Steel, FUEL CONNECTOR SCREW (PLASTIC)
-
2325-17970 GROMMET, FUEL CONNECTOR (METAL)GROMMET, FUEL CONNECTOR (METAL)
-
2325-17969 GROMMET, FUEL CONNECTOR (PLASTIC)GROMMET, FUEL CONNECTOR (PLASTIC)
-
2432-8M0108349 TUBINGTUBING
-
2532-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
2625-815849 GROMMET (60 EL)GROMMET (60 EL)
-
2754-41582Q7 CLAMP, Nylon (60 EL)CLAMP, Nylon (60 EL)
-
-27-43779A87 GASKET SETGASKET SET
