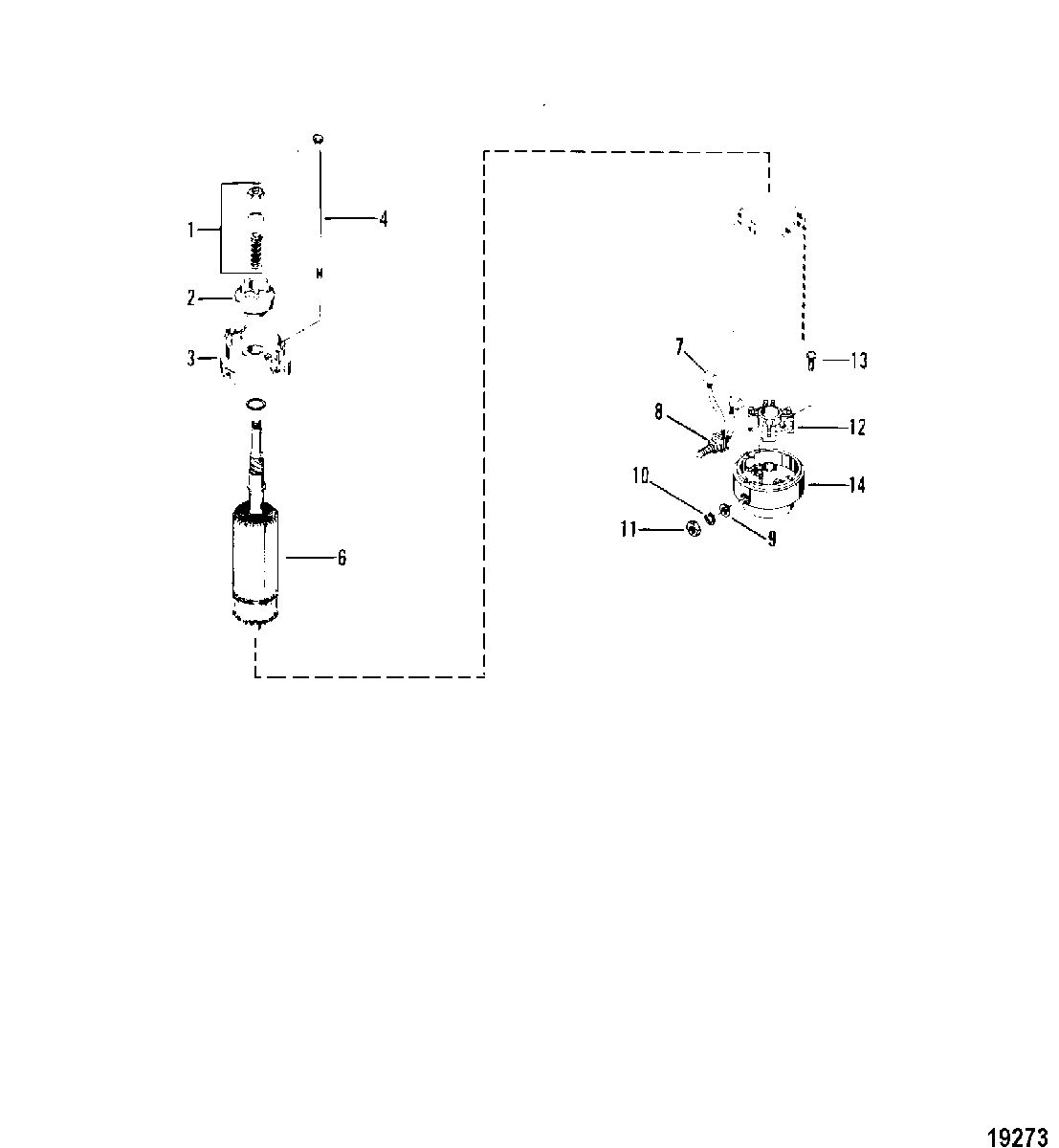

Starter Motor для Mercury - 50 (3 CYL.) 9469200 THRU 9683054
-
№АртикулНазвание
-
-50-44369A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190643 DRIVE KITDRIVE KIT
-
2685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
375660 PLATE, DRIVE ENDPLATE, DRIVE END
-
410-95686 BOLT, THRUBOLT, THRU
-
611957 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
823-57387 BUSHING, INSULATING-INPUT STUDBUSHING, INSULATING-INPUT STUD
-
912-38013 WASHER, INPUT STUDWASHER, INPUT STUD
-
1013-26992 LOCKWASHER, (.250) Stainless Steel, INPUT STUDLOCKWASHER, (.250) Stainless Steel, INPUT STUD
-
1111-20890 NUT, (.250-20), INPUT STUDNUT, (.250-20), INPUT STUD
-
12898265014 HOLDER, BRUSHHOLDER, BRUSH
-
1310-68586 SCREW, BRUSH AND HOLDER TO CAPSCREW, BRUSH AND HOLDER TO CAP
-
1475383 END CAP, COMMUTATOREND CAP, COMMUTATOR
