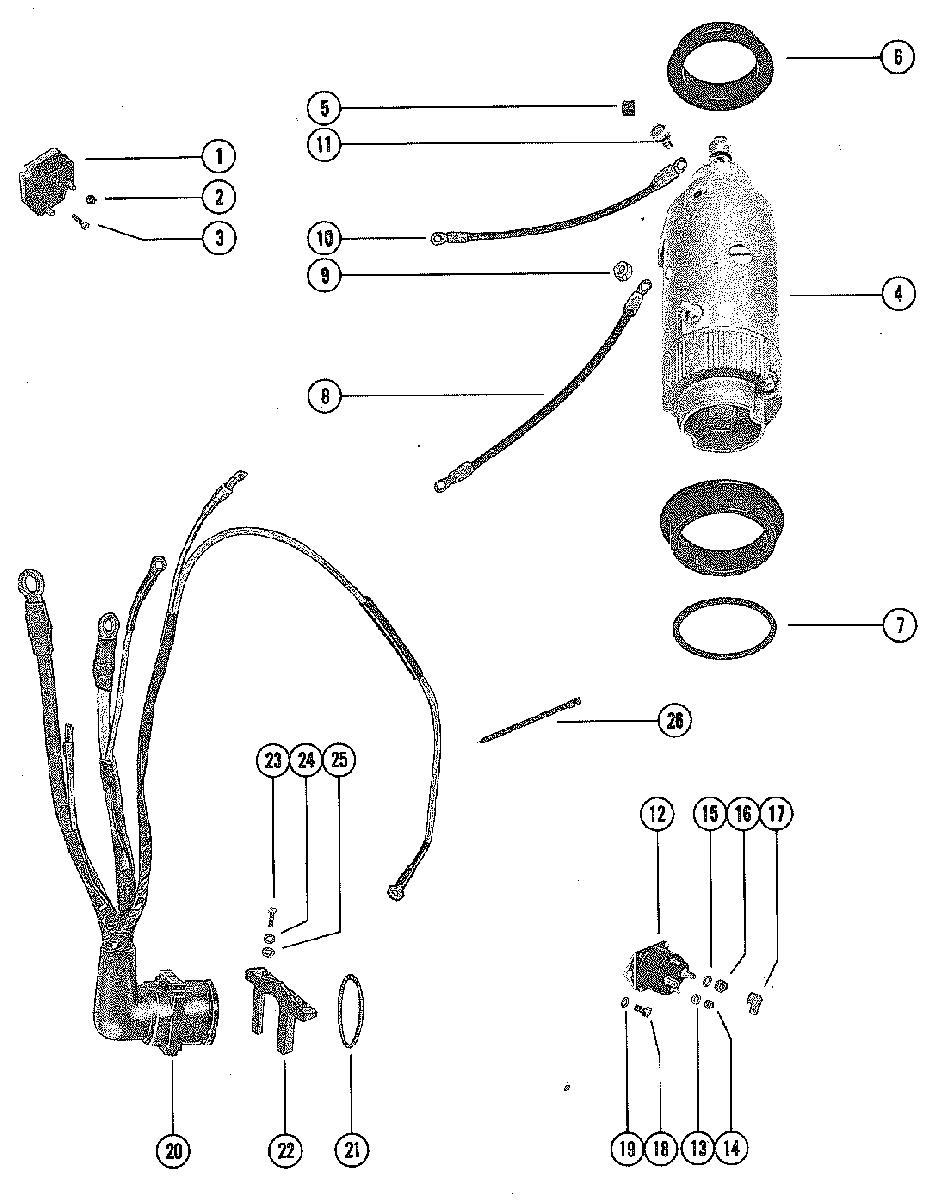

ELECTRIC COMPONENTS для Mercury - 500, 50 8030090 THRU 8063984
-
№АртикулНазвание
-
18M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
211-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
310-20411 SCSREW, RECTIFIER TO SWITCH BOX PLATE (5/8")SCSREW, RECTIFIER TO SWITCH BOX PLATE (5/8")
-
450-898265005 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
58M0043376 STOP, RUBBER-STARTER MOTORSTOP, RUBBER-STARTER MOTOR
-
623-8M0034918 COLLAR, RUBBER-STARTER MOTOR MOUNTCOLLAR, RUBBER-STARTER MOTOR MOUNT
-
723-56774 SPACER, COLLAR TO BRACKETSPACER, COLLAR TO BRACKET
-
884-93389A1 WIRE ASSEMBLY
STARTER MOTOR TO SOLENOID (YELLOW)WIRE ASSEMBLY
STARTER MOTOR TO SOLENOID (YELLOW) -
911-64015 NUT, WIRE TO STARTER MOTOR (1/4-20)NUT, WIRE TO STARTER MOTOR (1/4-20)
-
1084-93388A14 WIRE ASSEMBLY
STARTER MOTOR TO BRACKET (BLACK)WIRE ASSEMBLY
STARTER MOTOR TO BRACKET (BLACK) -
1110-69035 SCREW, WIRE TO STARTER MOTOR (5/8")SCREW, WIRE TO STARTER MOTOR (5/8")
-
1289-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
1313-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
1411-45076 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
1513-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
1611-21908 NUT, SOLENOID TERMINAL (5/16")NUT, SOLENOID TERMINAL (5/16")
-
1746265 BOOT, TERMINAL-STARTER SOLENOIDBOOT, TERMINAL-STARTER SOLENOID
-
1810-98253 SCREW, SELENOID TO SUPPORT BRACHET (1/2")SCREW, SELENOID TO SUPPORT BRACHET (1/2")
-
1913-26992 WASHER, STARTER SOLENOID SCREWWASHER, STARTER SOLENOID SCREW
-
2084-73447A1 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
2124-28975 SPRING, GARTER-INTERNAL WIRING HARNESSSPRING, GARTER-INTERNAL WIRING HARNESS
-
2254-76368 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2310-45862 SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") -
2413-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
2512-847883 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
2661990 STA-STRAP, WIRING HARNESSSTA-STRAP, WIRING HARNESS
