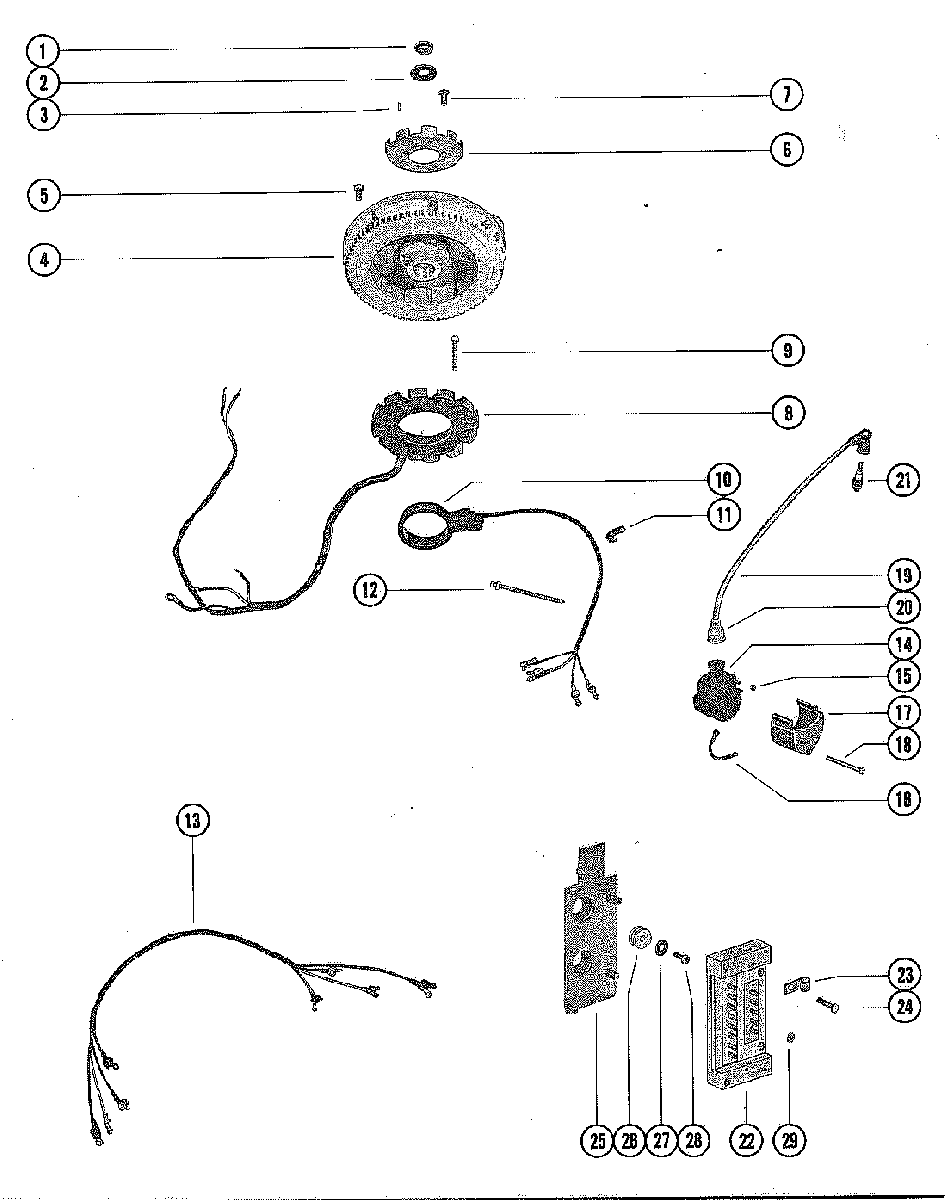

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 500, 50 8030090 THRU 8063984
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4248-8722A16 FLYWHEEL ASSEMBLY (MANUAL)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597FLYWHEEL ASSEMBLY (MANUAL)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
4248-8722A17 FLYWHEEL ASSEMBLY (ELECTRIC)FLYWHEEL ASSEMBLY (ELECTRIC)
-
4248-8722A16 FLYWHEEL ASSEMBLY (MANUAL)
UNITED STATES 4576237 THRU 5193258
AUSTRALIA 8042650 THRU 8057394
BELGIUM 9136250 THRU 9217255
CANADA 7088598 THRU 7116222FLYWHEEL ASSEMBLY (MANUAL)
UNITED STATES 4576237 THRU 5193258
AUSTRALIA 8042650 THRU 8057394
BELGIUM 9136250 THRU 9217255
CANADA 7088598 THRU 7116222 -
4248-8722A17 FLYWHEEL ASSEMBLY (ELECTRIC)FLYWHEEL ASSEMBLY (ELECTRIC)
-
4248-8722A16 FLYWHEEL ASSEMBLY (MANUAL)
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UPFLYWHEEL ASSEMBLY (MANUAL)
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP -
4248-8722A17 FLYWHEEL ASSEMBLY (ELECTRIC)FLYWHEEL ASSEMBLY (ELECTRIC)
-
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16)SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16)
-
650-88755 RATCHET, FLYWHEEL-MANUALRATCHET, FLYWHEEL-MANUAL
-
710-68997 SCREW, RATCHT TO FLYWHEEL (5/8")SCREW, RATCHT TO FLYWHEEL (5/8")
-
876314A3 STATOR (MANUAL)
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWSTATOR (MANUAL)
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
876314A3 STATOR (MANUAL)
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPSTATOR (MANUAL)
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
8398-832075A20 STATOR (ELECTRIC)STATOR (ELECTRIC)
-
910-63136 SCREW, STATOR TO UPPER END CAP (1")SCREW, STATOR TO UPPER END CAP (1")
-
910-F2211 SCREW, STATOR TO UPPER END CAP (5/8")SCREW, STATOR TO UPPER END CAP (5/8")
-
1096452A4 TRIGGER ASSEMBLY
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597TRIGGER ASSEMBLY
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
1096452A4 TRIGGER ASSEMBLY
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPTRIGGER ASSEMBLY
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
1154-61001 "J" CLIP, TRIGGER LEADS TO CARBURETOR STUD"J" CLIP, TRIGGER LEADS TO CARBURETOR STUD
-
1261990 STA-STRAP, TRIGGER LEADSSTA-STRAP, TRIGGER LEADS
-
1384-88721A1 HARNESS, SWITCH BOX TO IGNITION COILHARNESS, SWITCH BOX TO IGNITION COIL
-
14339-5288T2 IGNITION COIL ASSEMBLY
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOWIGNITION COIL ASSEMBLY
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW -
14339-832757A4 IGNITION COIL ASSEMBLY
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UPIGNITION COIL ASSEMBLY
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP -
1511-45076 NUT, IGNITION COIL TERMINALSNUT, IGNITION COIL TERMINALS
-
1684-60466A15 GROUNG WIRE, COIL TO SWITCH BOXGROUNG WIRE, COIL TO SWITCH BOX
-
1776254 COVER, IGNITION COIL
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597COVER, IGNITION COIL
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
1810-25211 SCREW, COIL COVER (10-24 X 1 7/8")SCREW, COIL COVER (10-24 X 1 7/8")
-
1776254 COVER, IGNITION COIL
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPCOVER, IGNITION COIL
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
1810-76502 SCREW, COIL COVER (10-32 X 1 7/8")SCREW, COIL COVER (10-32 X 1 7/8")
-
1984-813715A1 LEAD ASSEMBLY, SPARK PLUGLEAD ASSEMBLY, SPARK PLUG
-
20332-2854T01 BOOT, IGNITION COIL ENDBOOT, IGNITION COIL END
-
2133-97182Q SPARK PLUG (AC#V40FFK)
BELGIUM AND CANADA USE C-33-75739 SPARK PLUGSPARK PLUG (AC#V40FFK)
BELGIUM AND CANADA USE C-33-75739 SPARK PLUG -
22332-5772A7 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
2354-642351 "J" CLIP, SWITCH BOX LEADS"J" CLIP, SWITCH BOX LEADS
-
2410-20619 SCREW
SWITCH BOX AND "J" CLIP TO PLATE (1 3/8")SCREW
SWITCH BOX AND "J" CLIP TO PLATE (1 3/8") -
2572030 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
2625-57009001 GROMMET, SWITCH BOX PLATEGROMMET, SWITCH BOX PLATE
-
2712-35280 WASHER, SWITCH BOX PLATE SCREWWASHER, SWITCH BOX PLATE SCREW
-
2810-61551 SCREW
SWITCH BOX PLATE TO CYLINDER BLOCK (1/2")SCREW
SWITCH BOX PLATE TO CYLINDER BLOCK (1/2") -
2911-45076 NUT, SWITCH BOX TERMINALSNUT, SWITCH BOX TERMINALS
