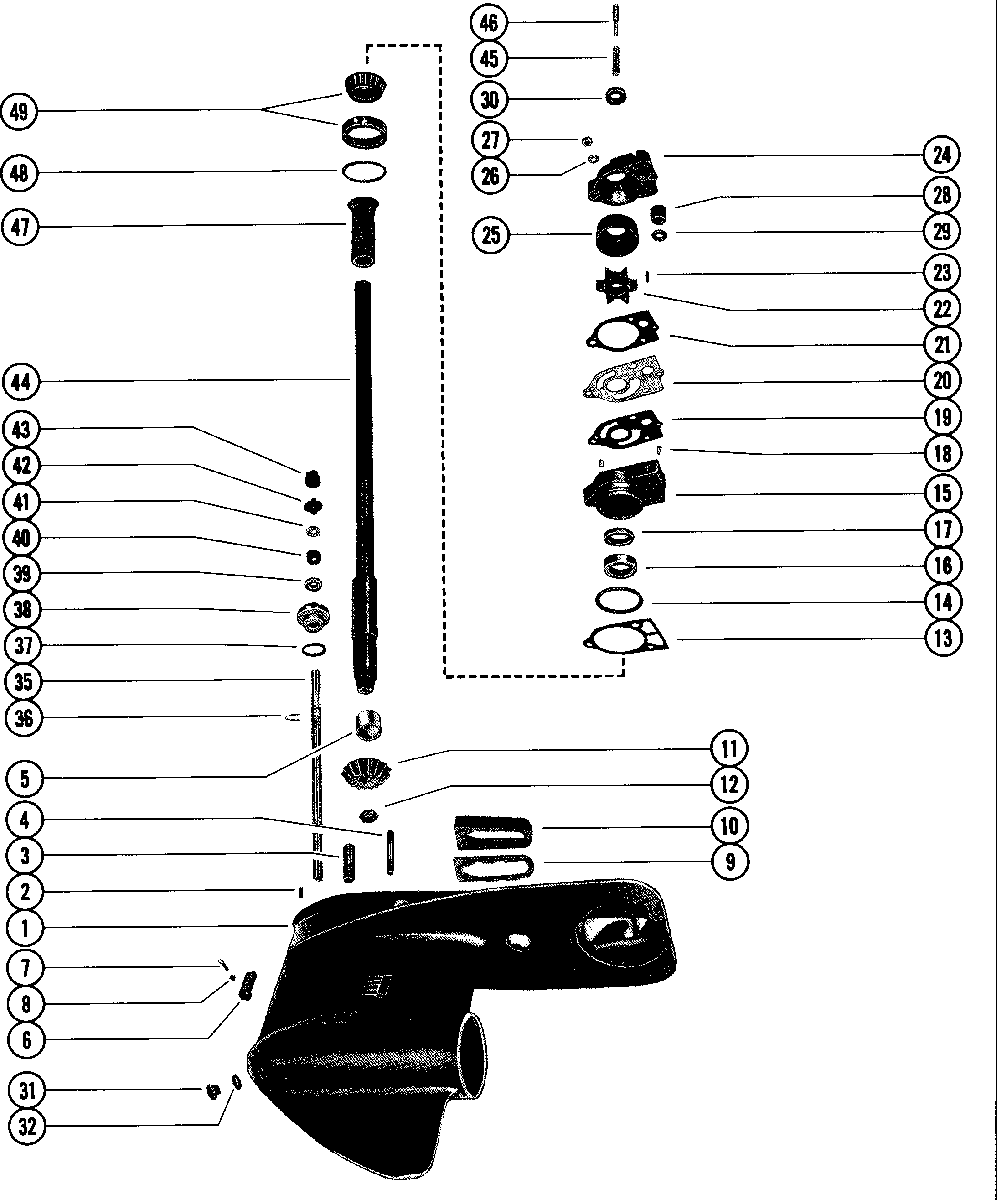

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 6)(PAGE 1) для Mercury - 500, 50 8030090 THRU 8063984
-
№АртикулНазвание
-
-1643-6038A5 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
-1643-6038A7 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
-1643-6038A17 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT)
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT)
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
-1643-6038A18 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT)
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT)
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
11643-6038A6 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
217-8M0084726 PIN, DOWEL - GEAR HOUSINGPIN, DOWEL - GEAR HOUSING
-
316-33778 STUD
WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")STUD
WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8") -
416-8M0034453 STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16") -
531-62091T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
672849A1 SCREEN, WATER INTAKE - STARBOARDSCREEN, WATER INTAKE - STARBOARD
-
672849A1 SCREEN, WATER INTAKE - PORTSCREEN, WATER INTAKE - PORT
-
710-36070 SCREW
WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4")SCREW
WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4") -
811-859124 NUT, WATER INTAKE SCREEN SCREWNUT, WATER INTAKE SCREEN SCREW
-
992815 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
1037721001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
1143-55607 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
1211-55910 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1327-32771 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1425-26855 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1546-73640T01 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1626-79831 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1726-90562 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1817-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
1927-19553 GASKET
LOWER - WATER PUMP BASE TO FACE PLATEGASKET
LOWER - WATER PUMP BASE TO FACE PLATE -
2032768 PLATE FACE
WATER PUMP BASE TO WATER PUMP BODYPLATE FACE
WATER PUMP BASE TO WATER PUMP BODY -
2127-19551 GASKET UPPER
FACE PLATE TO WATER PUMP BODYGASKET UPPER
FACE PLATE TO WATER PUMP BODY -
2247-89983T IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2328-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2446-77822A1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2548753 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2612-29245 WASHER, WATER PUMP BODY AND BASE STUDSWASHER, WATER PUMP BODY AND BASE STUDS
-
2711-36069 NUT, WATER PUMP BODY AND BASE STUDSNUT, WATER PUMP BODY AND BASE STUDS
-
2826-38452 SEAL, WATER PUMP BODY TO WATER TUBESEAL, WATER PUMP BODY TO WATER TUBE
-
2912-38453 WASHER, CUPPED - WATER TUBE SEALWASHER, CUPPED - WATER TUBE SEAL
-
3025-20273 RING, RUBBER - CENTRIFUGAL SLINGERRING, RUBBER - CENTRIFUGAL SLINGER
-
3110-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
3212-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
3569787A1 SHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597SHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
3576063A1 SHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPSHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3653-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
3725-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
3823-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
3926-24590 OIL SEAL, SHIFT SHAFT BUSING (LOWER)OIL SEAL, SHIFT SHAFT BUSING (LOWER)
-
4026-892361 OIL SEAL, SHIFT SHAFT (UPPER)OIL SEAL, SHIFT SHAFT (UPPER)
-
4112-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4278036 BASE
LOWER - REVERSE LOCKING - NOT PART OF GEAR HOUSINGBASE
LOWER - REVERSE LOCKING - NOT PART OF GEAR HOUSING -
4369542 CAM, REVERSE LOCKING
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597CAM, REVERSE LOCKING
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
4343308T1 CAM, REVERSE LOCKING
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPCAM, REVERSE LOCKING
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
4445-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
4445-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)DRIVE SHAFT ASSEMBLY (LONG SHAFT)
-
4445-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPDRIVE SHAFT ASSEMBLY (SHORT SHAFT)
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
4445-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)DRIVE SHAFT ASSEMBLY (LONG SHAFT)
-
4524-20254 SPRING, COMPRESSION - DRIVE SHAFTSPRING, COMPRESSION - DRIVE SHAFT
-
4612-30515 PIN, DRIVE SHAFTPIN, DRIVE SHAFT
-
4788181 SLEEVE, LUBRICTAION - DRIVE SHAFTSLEEVE, LUBRICTAION - DRIVE SHAFT
-
4815-20929A1 SHIM, BEARING TI GEAR HOUSING (.OO2-3-5-10)SHIM, BEARING TI GEAR HOUSING (.OO2-3-5-10)
-
4931-38146A1 ROLLER BEARING ASSEMBLY
TAPERED - DRIVE SHAFTROLLER BEARING ASSEMBLY
TAPERED - DRIVE SHAFT -
-46-73640A2 WATER PUMP KITWATER PUMP KIT
-
-26-79831A1 SEAL KITSEAL KIT
-
-27-72486A32 GASKET SETGASKET SET
