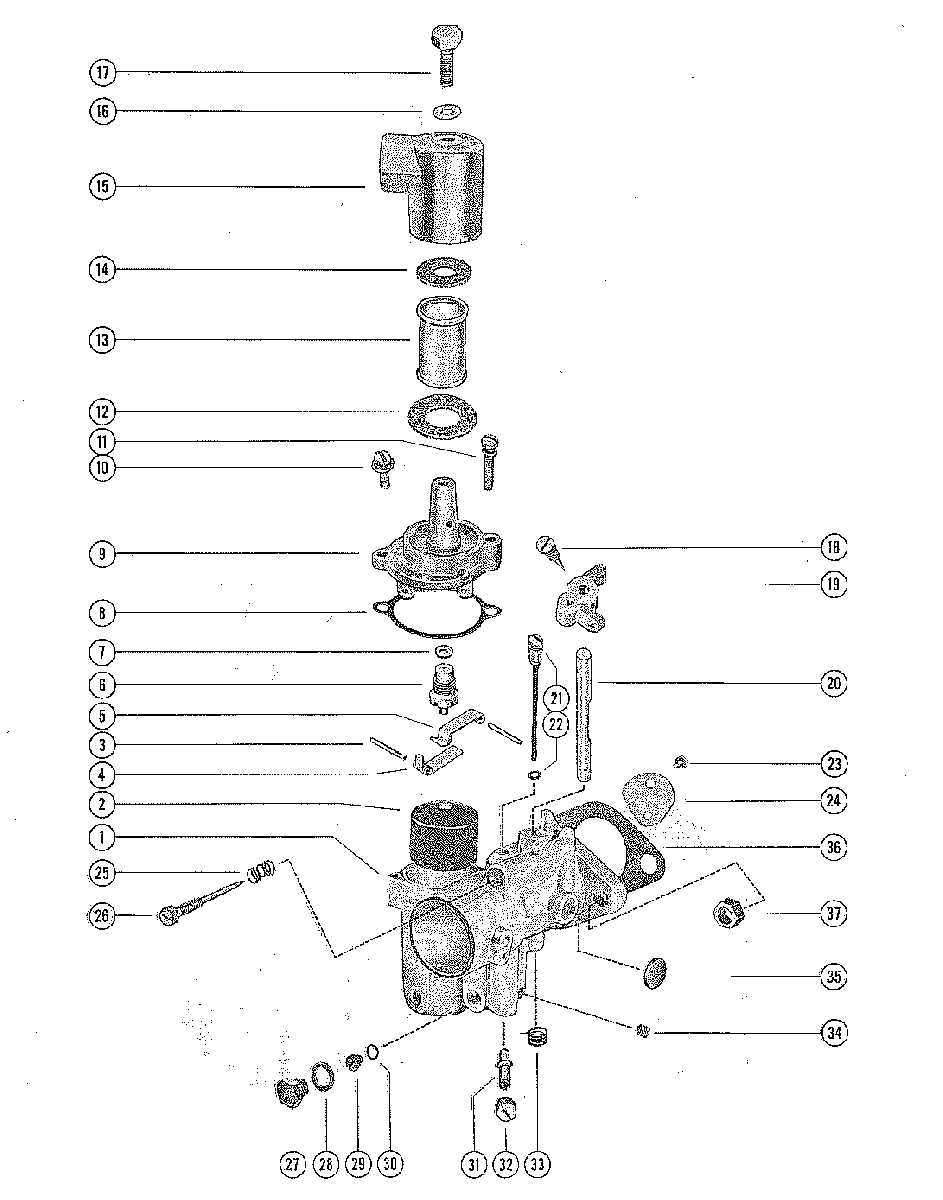

CARBURETOR ASSEMBLY для Mercury - 500 1770179 THRU 2116317
-
№АртикулНазвание
-
11333-2539 CARBURETOR ASSEMBLY, COMPLETE (KA-21A)CARBURETOR ASSEMBLY, COMPLETE (KA-21A)
-
11333-2741 CARBURETOR ASSEMBLY, COMPLETE (KA-21B)CARBURETOR ASSEMBLY, COMPLETE (KA-21B)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
317-20853 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
41399-102 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
51399-101 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
727-25033 GASKET, INLET SEATGASKET, INLET SEAT
-
81399-99 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1227-25851 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
131399-3938 SCREEN, FILTERSCREEN, FILTER
-
1427-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
151399-1135 COVER, STRAINERCOVER, STRAINER
-
1627-25848 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1710-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
181395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
198146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)LEVER, THROTTLE STOP (SEE NOTE BELOW)
-
201399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
211399-2560 TUBE, IDLETUBE, IDLE
-
2227-23180 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2310-23035 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
2310-20858 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
241399-1476 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2524-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
261399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2710-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
2827-28406 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
291399-1463 JET, MAIN FUEL (.063)JET, MAIN FUEL (.063)
-
291399-1461 JET, MAIN FUEL (.061)JET, MAIN FUEL (.061)
-
291399-1459 JET, MAIN FUEL (.059)JET, MAIN FUEL (.059)
-
291399-1457 JET, MAIN FUEL (.057)JET, MAIN FUEL (.057)
-
291399-1655 JET, MAIN FUEL (.055)JET, MAIN FUEL (.055)
-
3027-28409 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
311399-1985 NOZZLE, MAINNOZZLE, MAIN
-
311399-2785 NOZZLE, MAINNOZZLE, MAIN
-
3210-23178 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3324-26890 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
-
3324-20869 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
3410-28845 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
3519-20011 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
--1399-2015 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3627-757911 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3711-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
