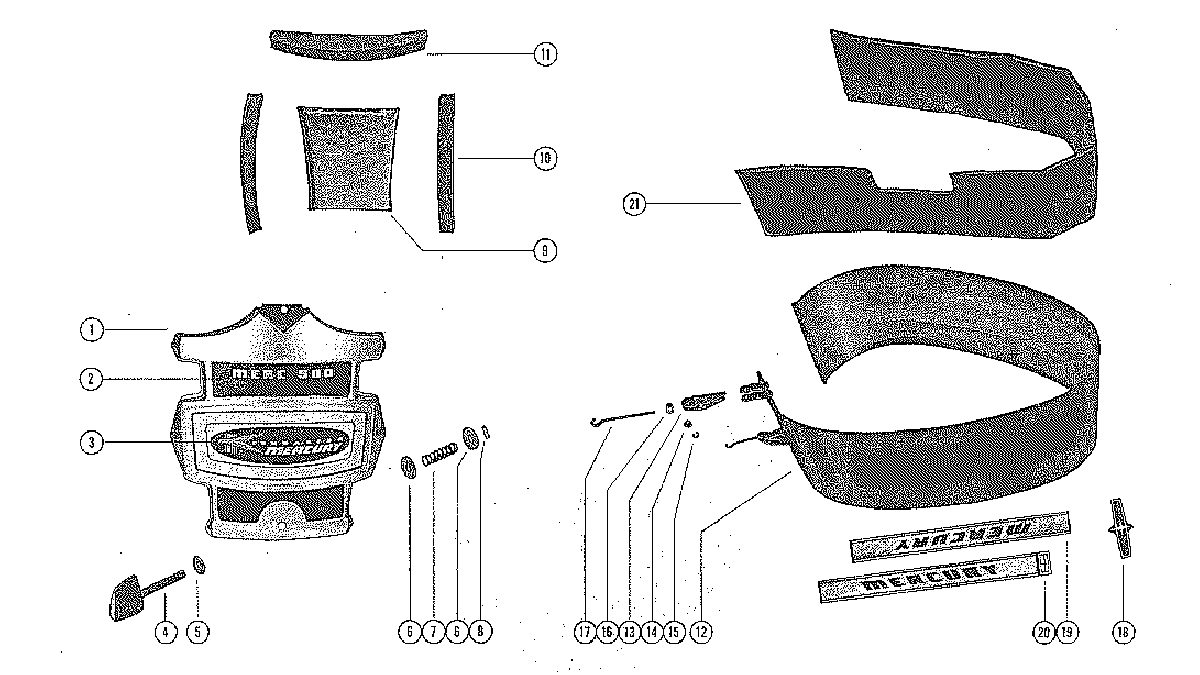

COWLING AND FRONT COVER для Mercury - 500 1770179 THRU 2116317
-
№АртикулНазвание
-
12182-7927A5 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
12182-7927A5 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
2N.S.S. DECAL, "MERC 500"DECAL, "MERC 500"
-
2N.S.S. DECAL, "MERC 500"DECAL, "MERC 500"
-
3N.S.S. DECAL, FRONT COVER EMBLEMDECAL, FRONT COVER EMBLEM
-
3N.S.S. DECAL, FRONT COVER EMBLEMDECAL, FRONT COVER EMBLEM
-
456848 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
512-30771 WASHER, COVER FASTENING KNOBWASHER, COVER FASTENING KNOB
-
612-27129 WASHER, COVER FASTENING KNOBWASHER, COVER FASTENING KNOB
-
724-30772 SPRING, TENSION - COVER FASTENING KNOBSPRING, TENSION - COVER FASTENING KNOB
-
817-29077 PIN, ROLL - TENSION SPRING TO KNOBPIN, ROLL - TENSION SPRING TO KNOB
-
938674 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
1031095 SEAL, SOUND - LOWER SECTIONSEAL, SOUND - LOWER SECTION
-
1138133 SEAL, SOUND - UPPER SECTIONSEAL, SOUND - UPPER SECTION
-
122118-2499A2 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
122118-3247A3 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
1321060 HANDLE, COWL LATCHHANDLE, COWL LATCH
-
1346785A1 HANDLE, COWL LATCHHANDLE, COWL LATCH
-
1417-21057 PIN, HINGE - HANDLE TO COWL LATCHPIN, HINGE - HANDLE TO COWL LATCH
-
1553-21058 "E" RING, HANDLE TO COWL LATCH HINGE PIN"E" RING, HANDLE TO COWL LATCH HINGE PIN
-
1625690 SWIVEL, COWL LATCHSWIVEL, COWL LATCH
-
1646785A1 SWIVEL, COWL LATCHSWIVEL, COWL LATCH
-
1725691 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
1730413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
18N.S.S. DECAL, WRAP AROUND COWL - REARDECAL, WRAP AROUND COWL - REAR
-
19N.S.S. DECAL, WRAP AROUND COWL - STARBOARDDECAL, WRAP AROUND COWL - STARBOARD
-
20N.S.S. DECAL, WRAP AROUND COWL - PORTDECAL, WRAP AROUND COWL - PORT
-
19N.S.S. DECAL, WRAP AROUND COWL - STARBOARDDECAL, WRAP AROUND COWL - STARBOARD
-
20N.S.S. DECAL, WRAP AROUND COWL - PORTDECAL, WRAP AROUND COWL - PORT
-
2137794 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
--92-86166Q1 GLUE (BLANKET ADHESIVE)GLUE (BLANKET ADHESIVE)
