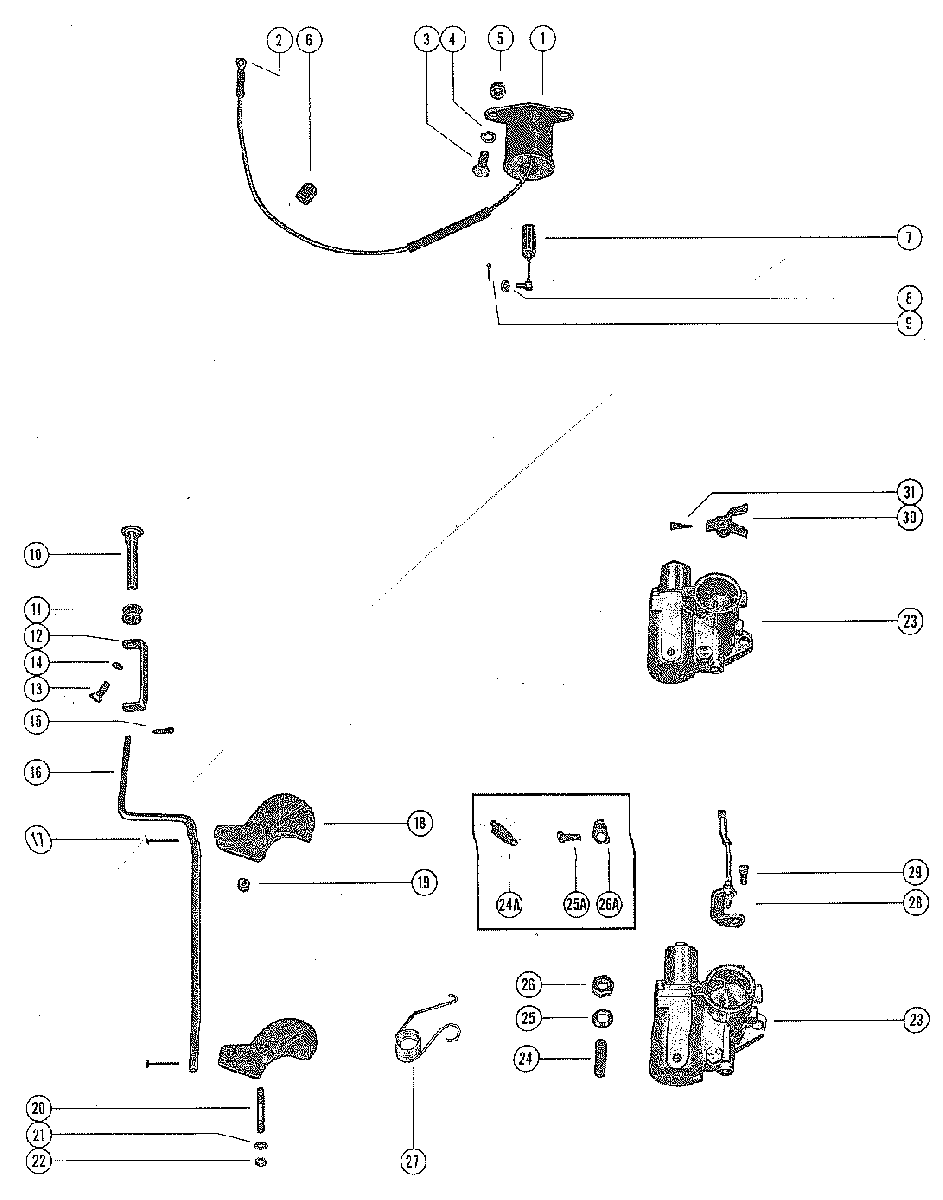

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 500 1770179 THRU 2116317
-
№АртикулНазвание
-
137585 CHOKE SOLENOID, TOP COWL 0101CHOKE SOLENOID, TOP COWL 0101
-
230050 TERMINAL, CHOKE SOLENOID LEADTERMINAL, CHOKE SOLENOID LEAD
-
310-26066 SCREW, CHOKE SOLENOID TO FRONT BRACKETSCREW, CHOKE SOLENOID TO FRONT BRACKET
-
413-26993 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
511-22053 NUT, CHOKE SOLENOID SCREWNUT, CHOKE SOLENOID SCREW
-
654-33361 CLIP, CHOKE SOLENOID LEADCLIP, CHOKE SOLENOID LEAD
-
748315A4 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
812-30164 WASHER, PLUNGER AND LINKWASHER, PLUNGER AND LINK
-
918-26953 COTTER PIN, LINK TO UPPER CHOKE SHUTTERCOTTER PIN, LINK TO UPPER CHOKE SHUTTER
-
1090242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1125-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
1222462 "U" LINK, CHOKE ROD TO CHOKE KNOB"U" LINK, CHOKE ROD TO CHOKE KNOB
-
1237591 "U" LINK, CHOKE ROD TO CHOKE KNOB"U" LINK, CHOKE ROD TO CHOKE KNOB
-
1310-69022 SCREW, "U" LINK TO CHOKE KNOBSCREW, "U" LINK TO CHOKE KNOB
-
1413-26996 LOCKWASHER, "U" LINK SCREWLOCKWASHER, "U" LINK SCREW
-
1518-210711 COTTER PIN, "U" LINK TO CHOKE RODCOTTER PIN, "U" LINK TO CHOKE ROD
-
1647958 ROD, CHOKEROD, CHOKE
-
1638458 ROD, CHOKE (NOT AS SHOWN)ROD, CHOKE (NOT AS SHOWN)
-
1717-25391 RIVET, CHOKE SHUTTER TO CHOKE RODRIVET, CHOKE SHUTTER TO CHOKE ROD
-
1838604 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
1923-30438 BUSHING, NYLON - UPPER CHOKE SHUTTERBUSHING, NYLON - UPPER CHOKE SHUTTER
-
2016-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
2112-30164 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
2211-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
231333-2539 CARBURETOR ASSEMBLY (SERIAL #2010162 AND BELOW)CARBURETOR ASSEMBLY (SERIAL #2010162 AND BELOW)
-
231333-2741 CARBURETOR ASSEMBLY ( SERIAL #2010163 AND UP)CARBURETOR ASSEMBLY ( SERIAL #2010163 AND UP)
-
24A24-28965 SPRING, TENSION - CHOKE ROD TO CARBURETOR SEE NOT BELOWSPRING, TENSION - CHOKE ROD TO CARBURETOR SEE NOT BELOW
-
25A10-28713 SCREW, TENSION SPRING TO CARBURETORSCREW, TENSION SPRING TO CARBURETOR
-
26A27711 RETAINER, SPRINGRETAINER, SPRING
-
2410-657461 STUD, TENSION SPRING TO CARBURETOR SEE NOTE BELOWSTUD, TENSION SPRING TO CARBURETOR SEE NOTE BELOW
-
2523-32427 SPACER, TENSION SPRING STUDSPACER, TENSION SPRING STUD
-
2611-20184 NUT, TENSION SPRING STUDNUT, TENSION SPRING STUD
-
2724-37678 SPRING, TENSION - CHOKE ROD TO CARBURETORSPRING, TENSION - CHOKE ROD TO CARBURETOR
-
2853719A2 THROTTLE PICK-UP BRACKET ASSEMBLYTHROTTLE PICK-UP BRACKET ASSEMBLY
-
2910-29239 SCREW, THROTTLE PICK-UP BRACKET MOUNTINGSCREW, THROTTLE PICK-UP BRACKET MOUNTING
-
3027917 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
311395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
