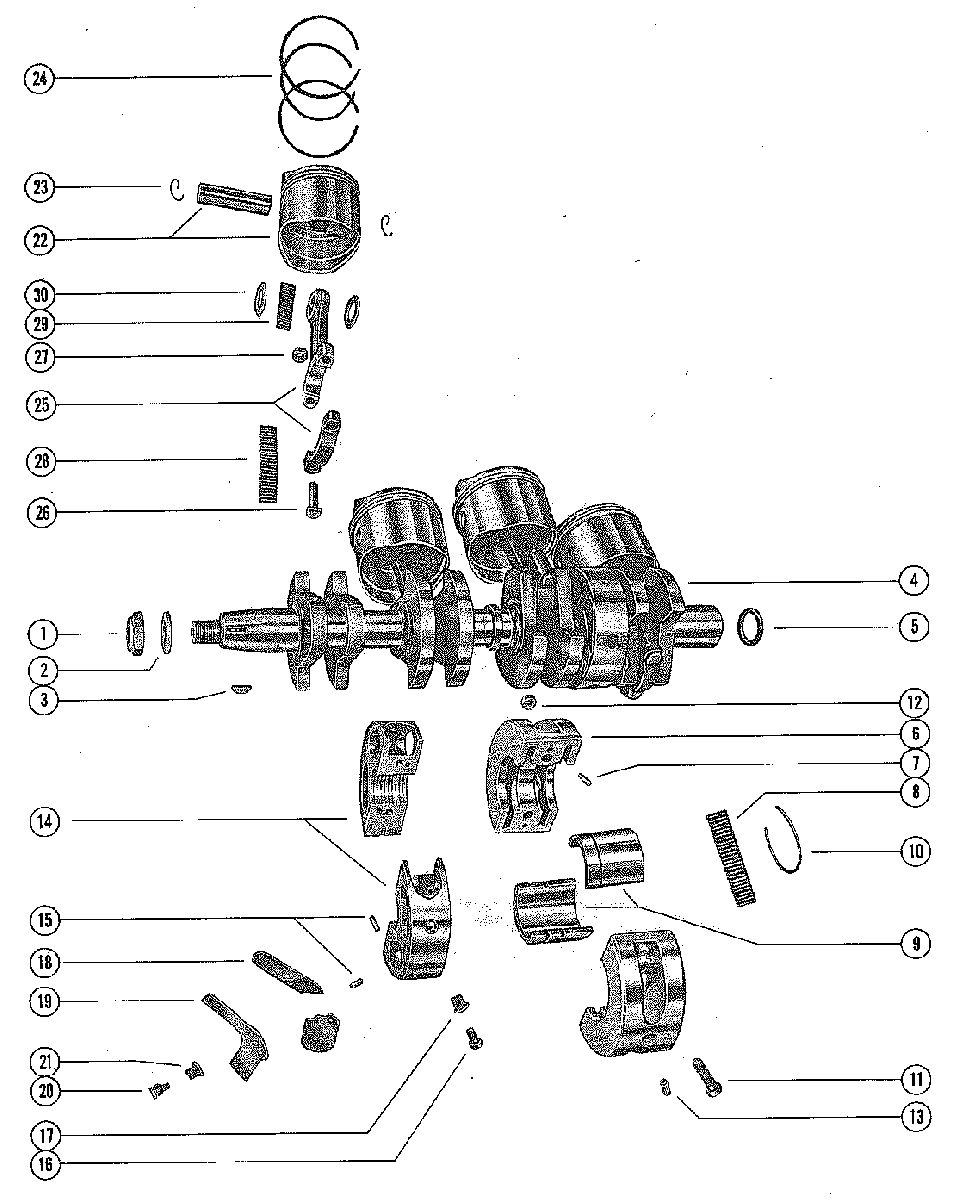

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 500 2305101 THRU 2858813
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4400-2976A2 CRANKSHAFTCRANKSHAFT
-
525-29619 "O" RING, DRIVE SHAFT SPLINE"O" RING, DRIVE SHAFT SPLINE
-
6500-5345A4 CENTER MAIN BEARING ASSEMBLY (USES FILLISTER HEAD SCREW)CENTER MAIN BEARING ASSEMBLY (USES FILLISTER HEAD SCREW)
-
6500-5345A4 CENTER MAIN BEARING ASSEMBLY (USES HEX HEAD SCREW)CENTER MAIN BEARING ASSEMBLY (USES HEX HEAD SCREW)
-
717-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
829-20046T BEARING, NEEDLEBEARING, NEEDLE
-
920047 RACE, OUTERRACE, OUTER
-
1053-20048 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
1110-24933 SCREW, CENTER MAIN BEARING CLAMPING (1 1/2") - FILLISTER HESCREW, CENTER MAIN BEARING CLAMPING (1 1/2") - FILLISTER HE
-
1110-20784 SCREW, CENTER MAIN BEARING CLAMPING (1 1?2") - HEX HEAD SCRSCREW, CENTER MAIN BEARING CLAMPING (1 1?2") - HEX HEAD SCR
-
1211-20184 NUT, CENTER MAIN BEARING CLAMPING SCREWNUT, CENTER MAIN BEARING CLAMPING SCREW
-
1317-20379 DOWEL PIN, (STEPPED)DOWEL PIN, (STEPPED)
-
14534-3267T25 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
1517-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1610-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
1711-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1834-88498A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1934-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
2010-77280 SCREW, REED STOP MOUNTING (1/2")SCREW, REED STOP MOUNTING (1/2")
-
2010-77280 SCREW, REED STOP MOUNTING (9/16")SCREW, REED STOP MOUNTING (9/16")
-
2111-29469 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
22780-9229A7 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2340-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2439-27841A12 RING, PISTONRING, PISTON
-
25632-7621A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2610-45379 SCREW, CAP TO CONNECTING RODSCREW, CAP TO CONNECTING ROD
-
2711-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2829-20046T BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
2929-20063 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3012-47275 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
